Hypertherm HyPerformance HPR130XD User Manual

InstallatIon
3-16 HPR130XD Auto Gas – 806330

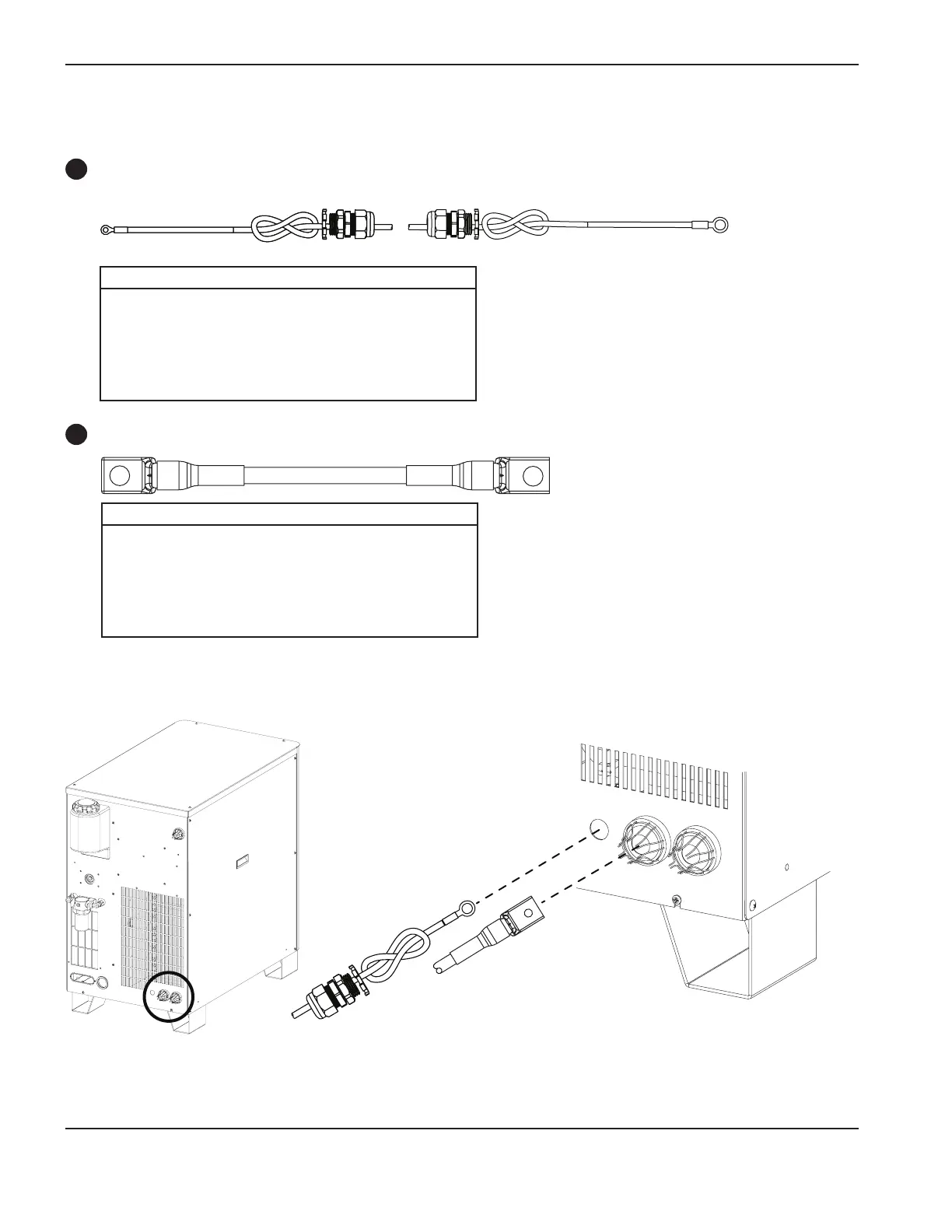

Power supply to ignition console leads
Pilot arc lead
Negative lead
Pilot arc lead
Negative lead
Ignition console
Power supply
Ignition console
I/O board
* Cable numbers 123683 and 123702 are for use with systems that have the ignition console mounted on the power supply
Part no. Length Part no. Length
123683* 1.5 m (5 ft) 123823 20 m (65 ft)
123820 3 m (10 ft) 123735 25 m (82 ft)
123821 4.5 m (15 ft) 123668 35 m (115 ft)
123666 7.5 m (25 ft) 123669 45 m (150 ft)
123822 10 m (35 ft) 123824 60 m (200 ft)
123667 15 m (50 ft) 123825 75 m (250 ft)
Part no. Length Part no. Length
123702* 1.5 m (5 ft) 123815 20 m (65 ft)
123661 3 m (10 ft) 123734 25 m (82 ft)
123813 4.5 m (15 ft) 123664 35 m (115 ft)
123662 7.5 m (25 ft) 123665 45 m (150 ft)
123814 10 m (35 ft) 123778 60 m (200 ft)
123663 15 m (50 ft) 123779 75 m (250 ft)
1
2
