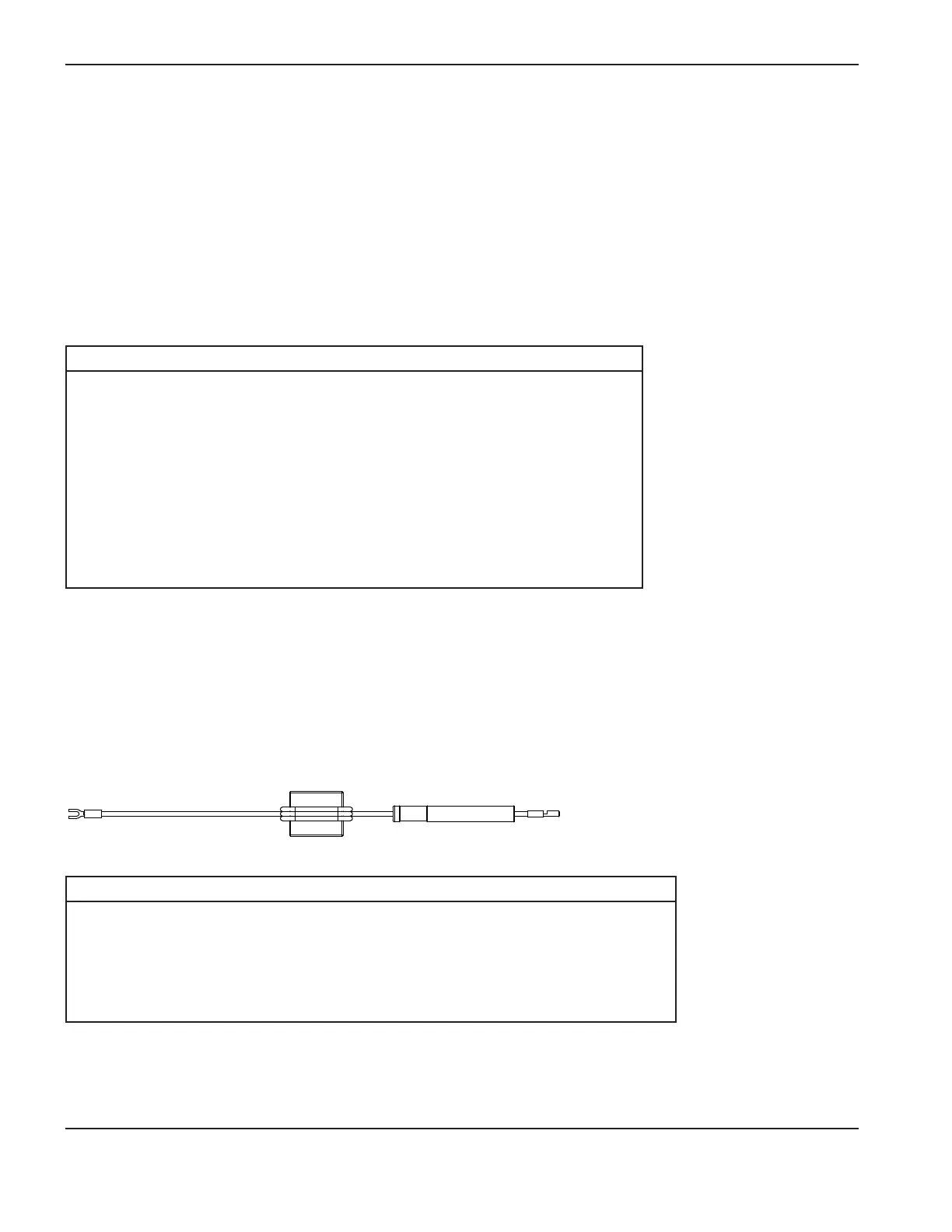

Appendix C – robotiC AppliCAtions
c-2 HPR130XD Auto Gas 806330
Part number Length Part number Length
223059 1.5 m (5 ft) 223064 12 m (40 ft)
223060 3 m (10 ft) 223065 15 m (50 ft)
223061 4.5 m (15 ft) 223066 22.5 m (75 ft)
223062 6 m (20 ft) 223067 30 m (100 ft)
223063 9 m (30 ft) 223068 45 m (150 ft)
Ohmic contact extension
A 2.5 m (8 ft) Ohmic contact wire is part of the lead set. Extensions can be found in the table below.
Overall length 1.8 M (6 feet) gas lead 2.4 M (8 feet) gas lead
2 m (6 ft) 228514 228516
2.5 m (8 ft) 228515 228517
3 m (10 ft) 228475 228482
3.5 m (12 ft) 228476 228483
4.5 m (15 ft) 228477 228484
6 m (20 ft) 228478 228485
7.5 m (25 ft) 228479 228486
10 m (35 ft) 228480 228487
15 m (50 ft) 228481 228488
Components for robotic applications
Torch leads
The torch leads listed below have been designed to withstand the added stresses found in robotic, or bevel,
applications. They are available with 2 m (6 ft), or 2.5 m (8 ft) gas leads.
Note: Consumable life will be reduced if the 2.5 m (8 ft) gas leads are used.
