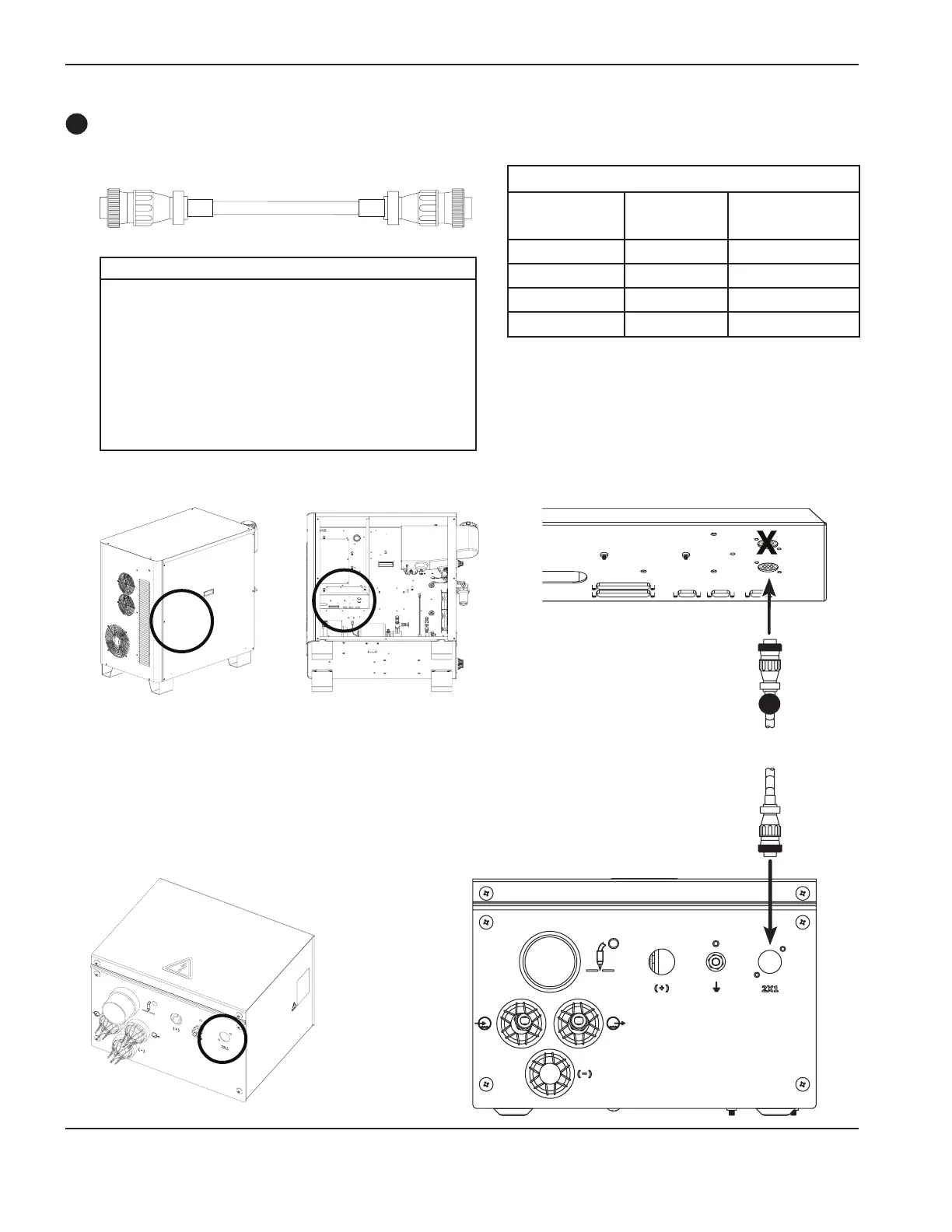

InstallatIon
3-18 HPR130XD Auto Gas – 806330
Ignition console power cable
3
* Cable number 123865 is for use with systems that have the ignition console mounted on the power supply
Cable signal list – power supply to ignition console
Power supply end Ignition console end
Pin No. Description Pin No.
1 120 Vac-hot 1
2 120 Vac-return 2
3 Ground 3
4 Not used 4
Part no. Length Part no. Length
123865* 2.1 m (7 ft) 123836 20 m (65 ft)
123419 3 m (10 ft) 123425 22.5 m (75 ft)
123834 4.5 m (15 ft) 123736 25 m (82 ft)
123420 6 m (20 ft) 123426 30 m (100 ft)
123670 7.5 m (25 ft) 123672 35 m (115 ft)
123422 9 m (30 ft) 123938 37.5 m (125 ft)
123835 10 m (35 ft) 123673 45 m (150 ft)
123423 12 m (40 ft) 123837 60 m (200 ft)
123671 15 m (50 ft) 123838 75 m (250 ft)
3
