Installation

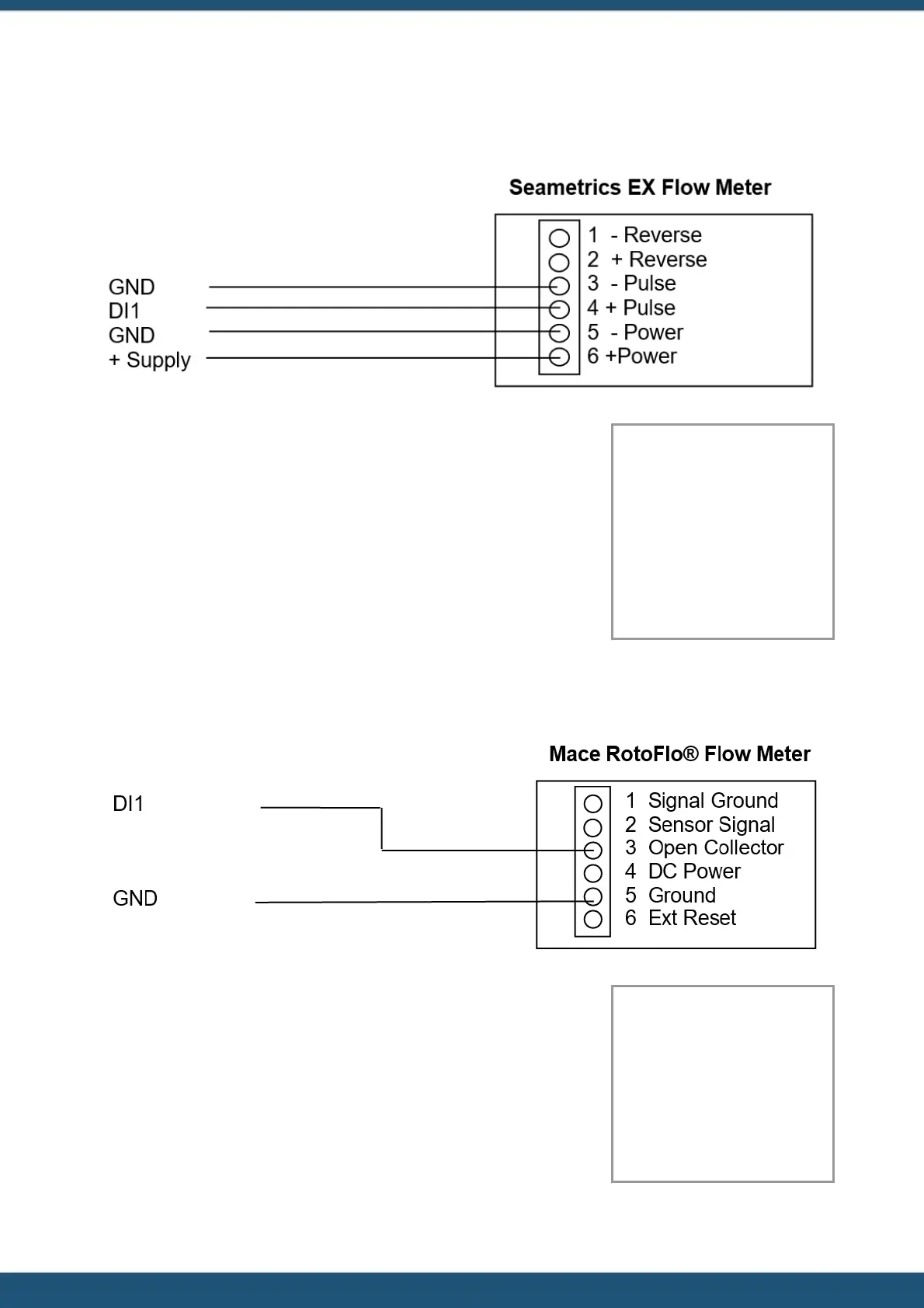

2.5.1.2 Connecting a Seametrics EX Flow Meter
The example configuration shown uses a multiplier of 0.3528 (reciprocal of K-
factor of 2.834). The logging is configured for average mode with an interval of
15 minutes.
Name: Flow Rate
Source: 7. Frequency 1
Process Mode: Period
Average
Multiplier: 0.3528
Offset: 0.0000
Log Rate: 15 mins
2.5.1.3 Connecting a Mace RotoFlo® Flow Meter
The example configuration shown assumes a 150 mm ID pipe with the meter
installed 150 mm from the elbow. Based on the Mace K-factor chart, a factor of
776678 per megalitre is used. Because of numeric entry limitations, this is
translated to a multiplier of 0.0012785 to give the basic unit of measurement
as a cubic metre (0.001 megalitre). The logging is configured for timed event
mode with an interval of 15 minutes.
Name: Pump Vol
Source: 3. Pulse In 1
Process Mode: Event
Multiplier: 0.00129
Offset: 0.0000
Log Rate: 15 mins
