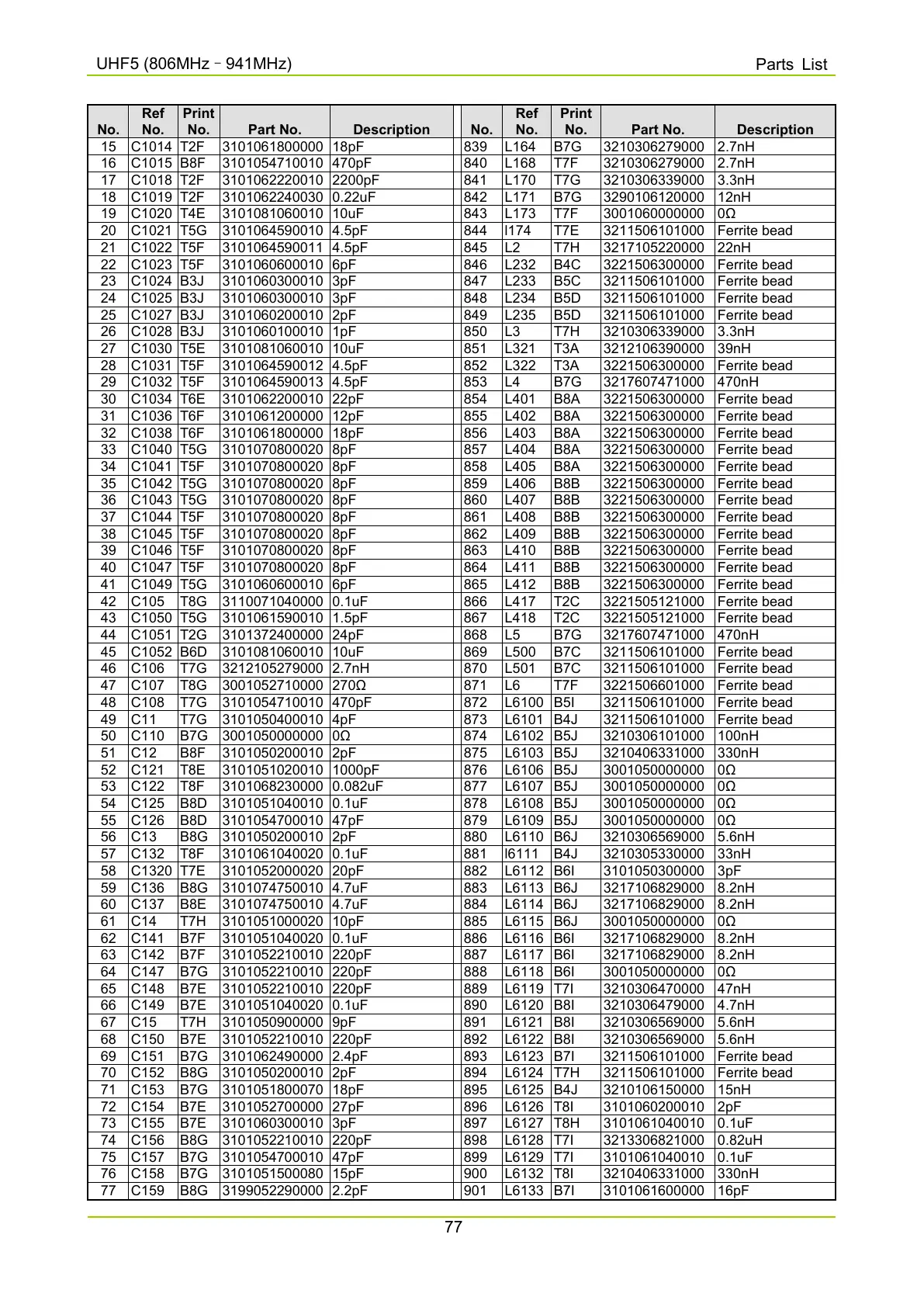

Hytera MD78X Service Manual

UHF5 (806MHz
–
941MHz)
Parts List
77
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
15
C1014
T2F
3101061800000
18pF
839
L164
B7G
3210306279000
2.7nH
16
C1015
B8F
3101054710010
470pF
840
L168
T7F
3210306279000
2.7nH
17
C1018
T2F
3101062220010
2200pF
841
L170
T7G
3210306339000
3.3nH
18
C1019
T2F
3101062240030
0.22uF
842
L171
B7G
3290106120000
12nH
19
C1020
T4E
3101081060010
10uF
843
L173
T7F
3001060000000
0Ω
20
C1021
T5G
3101064590010
4.5pF
844
l174
T7E
3211506101000
Ferrite bead
21
C1022
T5F
3101064590011
4.5pF
845
L2
T7H
3217105220000
22nH
22
C1023
T5F
3101060600010
6pF
846
L232
B4C
3221506300000
Ferrite bead
23
C1024
B3J
3101060300010
3pF
847
L233
B5C
3211506101000
Ferrite bead
24
C1025
B3J
3101060300010
3pF
848
L234
B5D
3211506101000
Ferrite bead
25
C1027
B3J
3101060200010
2pF
849
L235
B5D
3211506101000
Ferrite bead
26
C1028
B3J
3101060100010
1pF
850
L3
T7H
3210306339000
3.3nH
27
C1030
T5E
3101081060010
10uF
851
L321
T3A
3212106390000
39nH
28
C1031
T5F
3101064590012
4.5pF
852
L322
T3A
3221506300000
Ferrite bead
29
C1032
T5F
3101064590013
4.5pF
853
L4
B7G
3217607471000
470nH
30
C1034
T6E
3101062200010
22pF
854
L401
B8A
3221506300000
Ferrite bead
31
C1036
T6F
3101061200000
12pF
855
L402
B8A
3221506300000
Ferrite bead
32
C1038
T6F
3101061800000
18pF
856
L403
B8A
3221506300000
Ferrite bead
33
C1040
T5G
3101070800020
8pF
857
L404
B8A
3221506300000
Ferrite bead
34
C1041
T5F
3101070800020
8pF
858
L405
B8A
3221506300000
Ferrite bead
35
C1042
T5G
3101070800020
8pF
859
L406
B8B
3221506300000
Ferrite bead
36
C1043
T5G
3101070800020
8pF
860
L407
B8B
3221506300000
Ferrite bead
37
C1044
T5F
3101070800020
8pF
861
L408
B8B
3221506300000
Ferrite bead
38
C1045
T5F
3101070800020
8pF
862
L409
B8B
3221506300000
Ferrite bead
39
C1046
T5F
3101070800020
8pF
863
L410
B8B
3221506300000
Ferrite bead
40
C1047
T5F
3101070800020
8pF
864
L411
B8B
3221506300000
Ferrite bead
41
C1049
T5G
3101060600010
6pF
865
L412
B8B
3221506300000
Ferrite bead
42
C105
T8G
3110071040000
0.1uF
866
L417
T2C
3221505121000
Ferrite bead
43
C1050
T5G
3101061590010
1.5pF
867
L418
T2C
3221505121000
Ferrite bead
44
C1051
T2G
3101372400000
24pF
868
L5
B7G
3217607471000
470nH
45
C1052
B6D
3101081060010
10uF
869
L500
B7C
3211506101000
Ferrite bead
46
C106
T7G
3212105279000
2.7nH
870
L501
B7C
3211506101000
Ferrite bead
47
C107
T8G
3001052710000
270Ω
871
L6
T7F
3221506601000
Ferrite bead
48
C108
T7G
3101054710010
470pF
872
L6100
B5I
3211506101000
Ferrite bead
49
C11
T7G
3101050400010
4pF
873
L6101
B4J
3211506101000
Ferrite bead
50
C110
B7G
3001050000000
0Ω
874
L6102
B5J
3210306101000
100nH
51
C12
B8F
3101050200010
2pF
875
L6103
B5J
3210406331000
330nH
52
C121
T8E
3101051020010
1000pF
876
L6106
B5J
3001050000000
0Ω
53
C122
T8F
3101068230000
0.082uF
877
L6107
B5J
3001050000000
0Ω
54
C125
B8D
3101051040010
0.1uF
878
L6108
B5J
3001050000000
0Ω
55
C126
B8D
3101054700010
47pF
879
L6109
B5J
3001050000000
0Ω
56
C13
B8G
3101050200010
2pF
880
L6110
B6J
3210306569000
5.6nH
57
C132
T8F
3101061040020
0.1uF
881
l6111
B4J
3210305330000
33nH
58
C1320
T7E
3101052000020
20pF
882
L6112
B6I
3101050300000
3pF
59
C136
B8G
3101074750010
4.7uF
883
L6113
B6J
3217106829000
8.2nH
60
C137
B8E
3101074750010
4.7uF
884
L6114
B6J
3217106829000
8.2nH
61
C14
T7H
3101051000020
10pF
885
L6115
B6J
3001050000000
0Ω
62
C141
B7F
3101051040020
0.1uF
886
L6116
B6I
3217106829000
8.2nH
63
C142
B7F
3101052210010
220pF
887
L6117
B6I
3217106829000
8.2nH
64
C147
B7G
3101052210010
220pF
888
L6118
B6I
3001050000000
0Ω
65
C148
B7E
3101052210010
220pF
889
L6119
T7I
3210306470000
47nH
66
C149
B7E
3101051040020
0.1uF
890
L6120
B8I
3210306479000
4.7nH
67
C15
T7H
3101050900000
9pF
891
L6121
B8I
3210306569000
5.6nH
68
C150
B7E
3101052210010
220pF
892
L6122
B8I
3210306569000
5.6nH
69
C151
B7G
3101062490000
2.4pF
893
L6123
B7I
3211506101000
Ferrite bead
70
C152
B8G
3101050200010
2pF
894
L6124
T7H
3211506101000
Ferrite bead
71
C153
B7G
3101051800070
18pF
895
L6125
B4J
3210106150000
15nH
72
C154
B7E
3101052700000
27pF
896
L6126
T8I
3101060200010
2pF
73
C155
B7E
3101060300010
3pF
897
L6127
T8H
3101061040010
0.1uF
74
C156
B8G
3101052210010
220pF
898
L6128
T7I
3213306821000
0.82uH
75
C157
B7G
3101054700010
47pF
899
L6129
T7I
3101061040010
0.1uF
76
C158
B7G
3101051500080
15pF
900
L6132
T8I
3210406331000
330nH
77
C159
B8G
3199052290000
2.2pF
901
L6133
B7I
3101061600000
16pF
