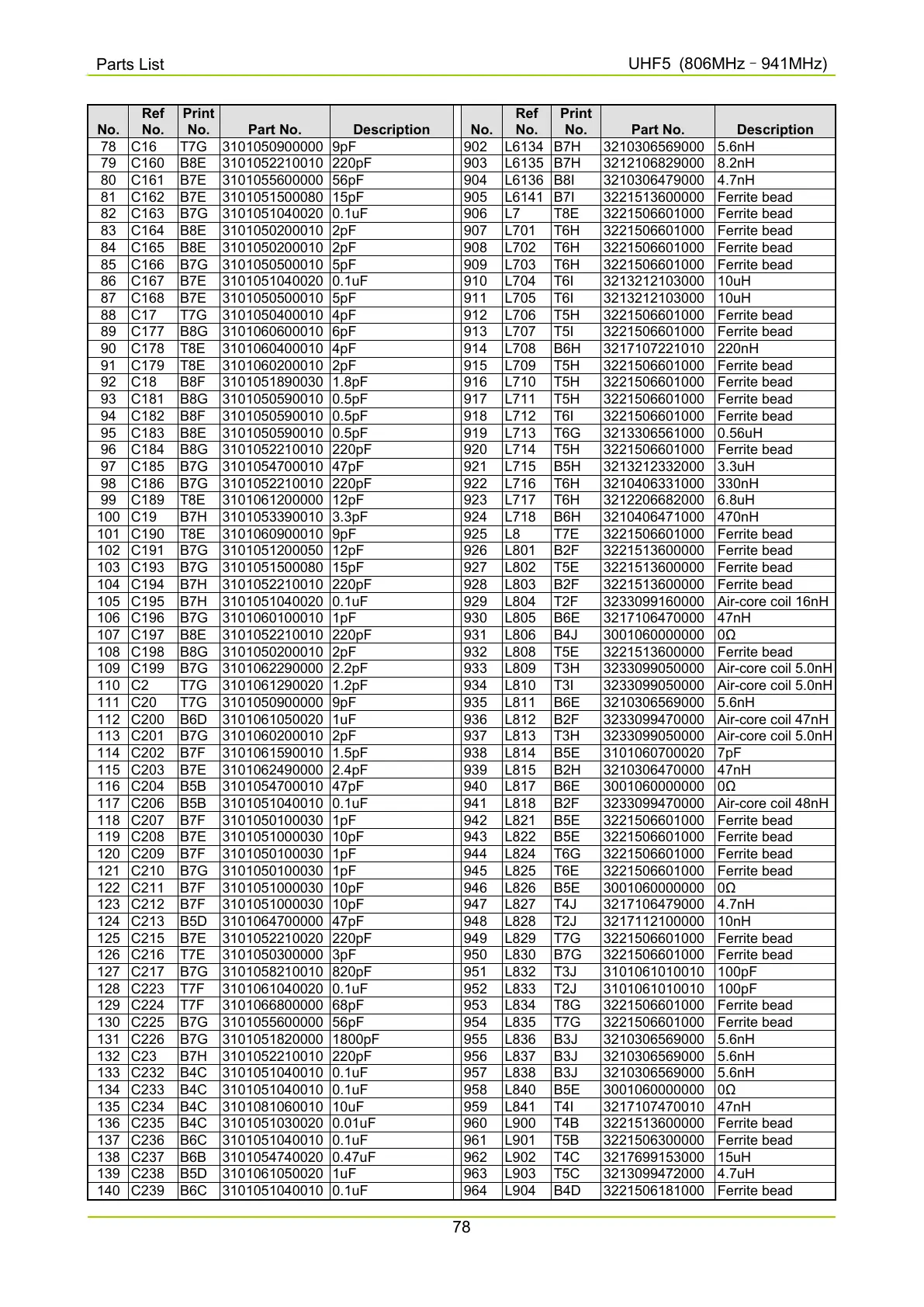

Hytera MD78X Service Manual

Parts List
UHF5 (806MHz
–
941MHz)
78
No.
Ref
No.
Print
No.
Part No.
Description
No.
Ref
No.
Print
No.
Part No.
Description
78
C16
T7G
3101050900000
9pF
902
L6134
B7H
3210306569000
5.6nH
79
C160
B8E
3101052210010
220pF
903
L6135
B7H
3212106829000
8.2nH
80
C161
B7E
3101055600000
56pF
904
L6136
B8I
3210306479000
4.7nH
81
C162
B7E
3101051500080
15pF
905
L6141
B7I
3221513600000
Ferrite bead
82
C163
B7G
3101051040020
0.1uF
906
L7
T8E
3221506601000
Ferrite bead
83
C164
B8E
3101050200010
2pF
907
L701
T6H
3221506601000
Ferrite bead
84
C165
B8E
3101050200010
2pF
908
L702
T6H
3221506601000
Ferrite bead
85
C166
B7G
3101050500010
5pF
909
L703
T6H
3221506601000
Ferrite bead
86
C167
B7E
3101051040020
0.1uF
910
L704
T6I
3213212103000
10uH
87
C168
B7E
3101050500010
5pF
911
L705
T6I
3213212103000
10uH
88
C17
T7G
3101050400010
4pF
912
L706
T5H
3221506601000
Ferrite bead
89
C177
B8G
3101060600010
6pF
913
L707
T5I
3221506601000
Ferrite bead
90
C178
T8E
3101060400010
4pF
914
L708
B6H
3217107221010
220nH
91
C179
T8E
3101060200010
2pF
915
L709
T5H
3221506601000
Ferrite bead
92
C18
B8F
3101051890030
1.8pF
916
L710
T5H
3221506601000
Ferrite bead
93
C181
B8G
3101050590010
0.5pF
917
L711
T5H
3221506601000
Ferrite bead
94
C182
B8F
3101050590010
0.5pF
918
L712
T6I
3221506601000
Ferrite bead
95
C183
B8E
3101050590010
0.5pF
919
L713
T6G
3213306561000
0.56uH
96
C184
B8G
3101052210010
220pF
920
L714
T5H
3221506601000
Ferrite bead
97
C185
B7G
3101054700010
47pF
921
L715
B5H
3213212332000
3.3uH
98
C186
B7G
3101052210010
220pF
922
L716
T6H
3210406331000
330nH
99
C189
T8E
3101061200000
12pF
923
L717
T6H
3212206682000
6.8uH
100
C19
B7H
3101053390010
3.3pF
924
L718
B6H
3210406471000
470nH
101
C190
T8E
3101060900010
9pF
925
L8
T7E
3221506601000
Ferrite bead
102
C191
B7G
3101051200050
12pF
926
L801
B2F
3221513600000
Ferrite bead
103
C193
B7G
3101051500080
15pF
927
L802
T5E
3221513600000
Ferrite bead
104
C194
B7H
3101052210010
220pF
928
L803
B2F
3221513600000
Ferrite bead
105
C195
B7H
3101051040020
0.1uF
929
L804
T2F
3233099160000
Air-core coil 16nH
106
C196
B7G
3101060100010
1pF
930
L805
B6E
3217106470000
47nH
107
C197
B8E
3101052210010
220pF
931
L806
B4J
3001060000000
0Ω
108
C198
B8G
3101050200010
2pF
932
L808
T5E
3221513600000
Ferrite bead
109
C199
B7G
3101062290000
2.2pF
933
L809
T3H
3233099050000
Air-core coil 5.0nH
110
C2
T7G
3101061290020
1.2pF
934
L810
T3I
3233099050000
Air-core coil 5.0nH
111
C20
T7G
3101050900000
9pF
935
L811
B6E
3210306569000
5.6nH
112
C200
B6D
3101061050020
1uF
936
L812
B2F
3233099470000
Air-core coil 47nH
113
C201
B7G
3101060200010
2pF
937
L813
T3H
3233099050000
Air-core coil 5.0nH
114
C202
B7F
3101061590010
1.5pF
938
L814
B5E
3101060700020
7pF
115
C203
B7E
3101062490000
2.4pF
939
L815
B2H
3210306470000
47nH
116
C204
B5B
3101054700010
47pF
940
L817
B6E
3001060000000
0Ω
117
C206
B5B
3101051040010
0.1uF
941
L818
B2F
3233099470000
Air-core coil 48nH
118
C207
B7F
3101050100030
1pF
942
L821
B5E
3221506601000
Ferrite bead
119
C208
B7E
3101051000030
10pF
943
L822
B5E
3221506601000
Ferrite bead
120
C209
B7F
3101050100030
1pF
944
L824
T6G
3221506601000
Ferrite bead
121
C210
B7G
3101050100030
1pF
945
L825
T6E
3221506601000
Ferrite bead
122
C211
B7F
3101051000030
10pF
946
L826
B5E
3001060000000
0Ω
123
C212
B7F
3101051000030
10pF
947
L827
T4J
3217106479000
4.7nH
124
C213
B5D
3101064700000
47pF
948
L828
T2J
3217112100000
10nH
125
C215
B7E
3101052210020
220pF
949
L829
T7G
3221506601000
Ferrite bead
126
C216
T7E
3101050300000
3pF
950
L830
B7G
3221506601000
Ferrite bead
127
C217
B7G
3101058210010
820pF
951
L832
T3J
3101061010010
100pF
128
C223
T7F
3101061040020
0.1uF
952
L833
T2J
3101061010010
100pF
129
C224
T7F
3101066800000
68pF
953
L834
T8G
3221506601000
Ferrite bead
130
C225
B7G
3101055600000
56pF
954
L835
T7G
3221506601000
Ferrite bead
131
C226
B7G
3101051820000
1800pF
955
L836
B3J
3210306569000
5.6nH
132
C23
B7H
3101052210010
220pF
956
L837
B3J
3210306569000
5.6nH
133
C232
B4C
3101051040010
0.1uF
957
L838
B3J
3210306569000
5.6nH
134
C233
B4C
3101051040010
0.1uF
958
L840
B5E
3001060000000
0Ω
135
C234
B4C
3101081060010
10uF
959
L841
T4I
3217107470010
47nH
136
C235
B4C
3101051030020
0.01uF
960
L900
T4B
3221513600000
Ferrite bead
137
C236
B6C
3101051040010
0.1uF
961
L901
T5B
3221506300000
Ferrite bead
138
C237
B6B
3101054740020
0.47uF
962
L902
T4C
3217699153000
15uH
139
C238
B5D
3101061050020
1uF
963
L903
T5C
3213099472000
4.7uH
140
C239
B6C
3101051040010
0.1uF
964
L904
B4D
3221506181000
Ferrite bead
