43

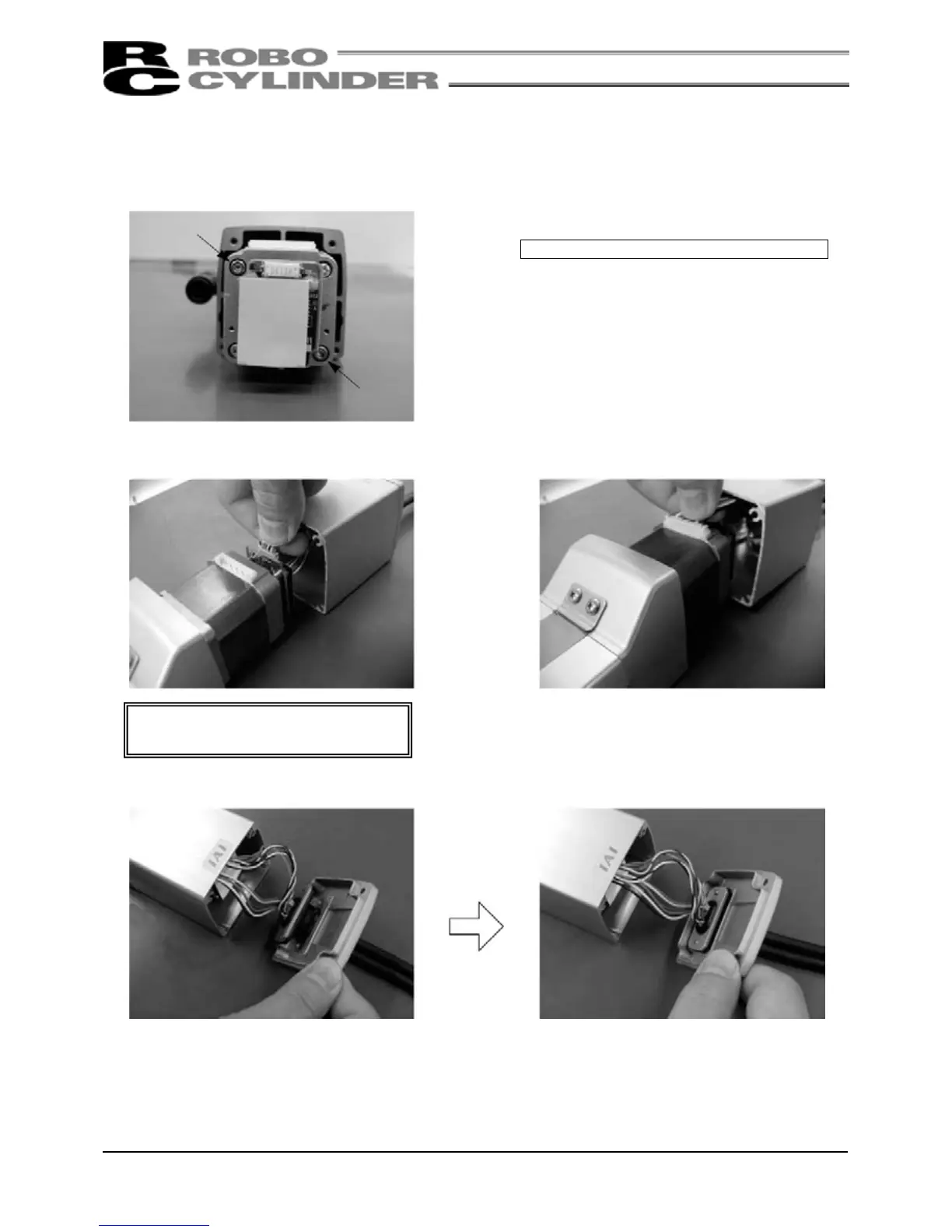

7) Install a new motor.
• After confirming that the angles of projections and depressions on the couplings are aligned, tighten the
affixing bolts (M3 × 50, 2 pcs.).
(Use an Allen wrench of 2.5mm across flats.)
Tightening torque: 59N·cm (6kgf·cm)
8) Connect the encoder connector.
9) Connect the motor connector.
Caution: Do not apply a force to the
encoder by touching it directly.
10) Replace the cable-end molding in the original position, and affi
