48

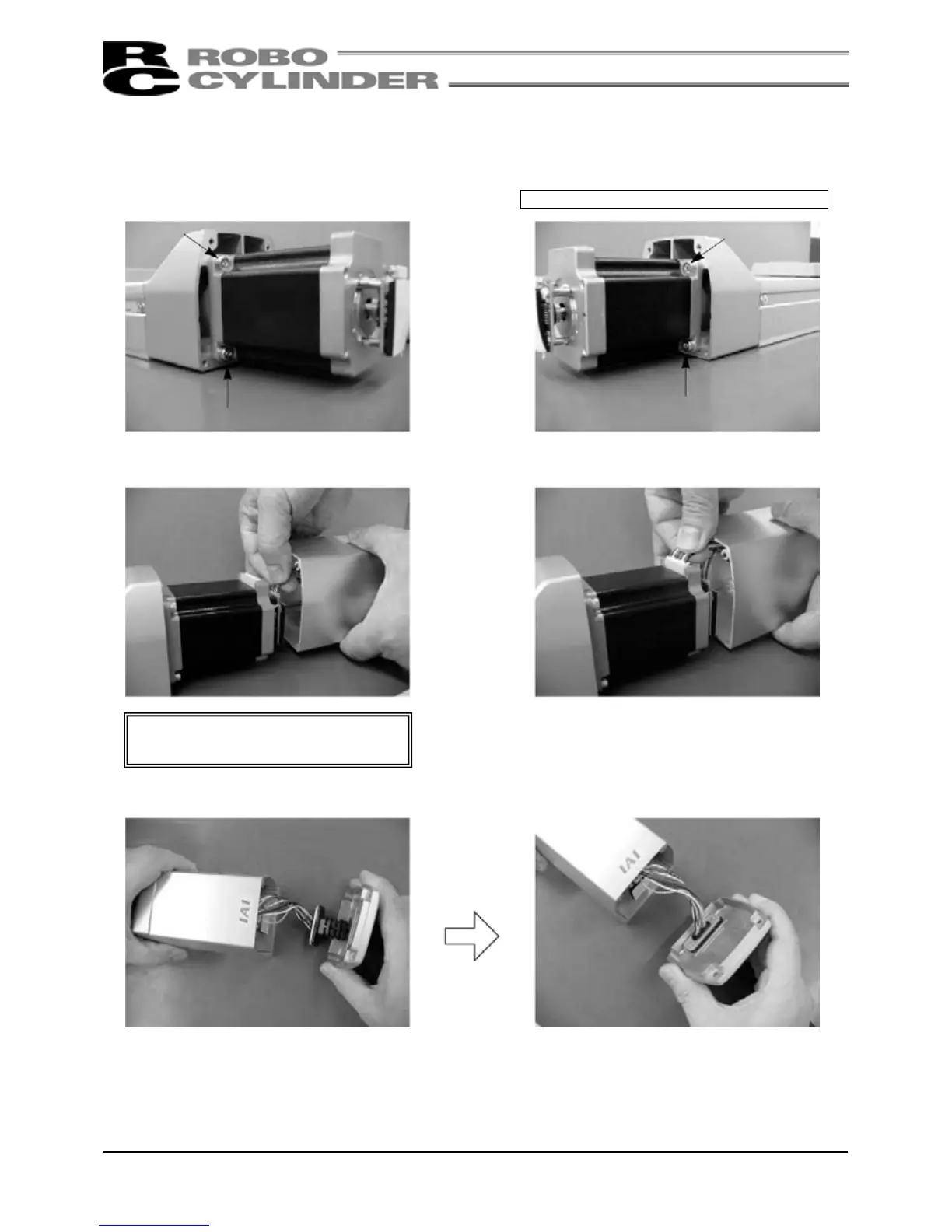

7) Install a new motor.
• After confirming that the angles of projections and depressions on the couplings are aligned, tighten the
affixing bolts (M4 × 15, 4 pcs.).
(Use an Allen wrench of 3mm across flats.)
Tightening torque: 176N·cm (18kgf·cm)
8) Connect the encoder connector.
9) Connect the motor connector.
Caution: Do not apply a force to the
encoder by touching it directly.
10) Replace the cable-end molding in the original position, and affi
