53

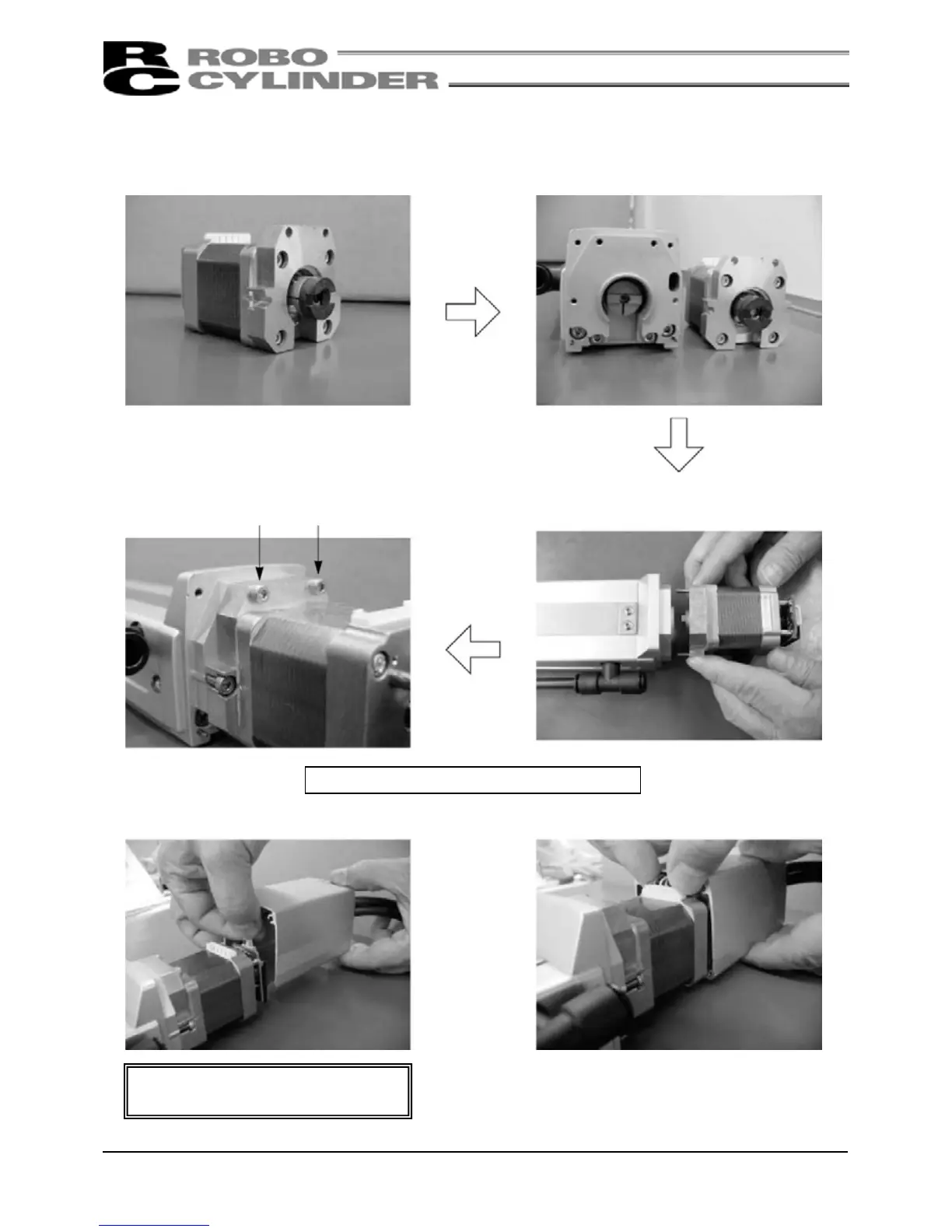

7) Install a new motor.
8) Connect the encoder connector.
9) Connect the motor connector.
Caution: Do not apply a force to the
encoder by touching it directly.
• Confirm that the angles of projections and
depressions on the couplings are aligned.
• Tighten the motor flange with the affixing
bolts (M3 × 8, 4 pcs.).
• First, tighten the right and left affixing bolts
(M3 × 18, 2 pcs.) uniformly.
• Next, tighten the upper affixing bolts (M3 ×
15, 2 pcs.) uniformly.
Tightening torque of M3 bolt: 83N·cm (8.5kgf·cm)
