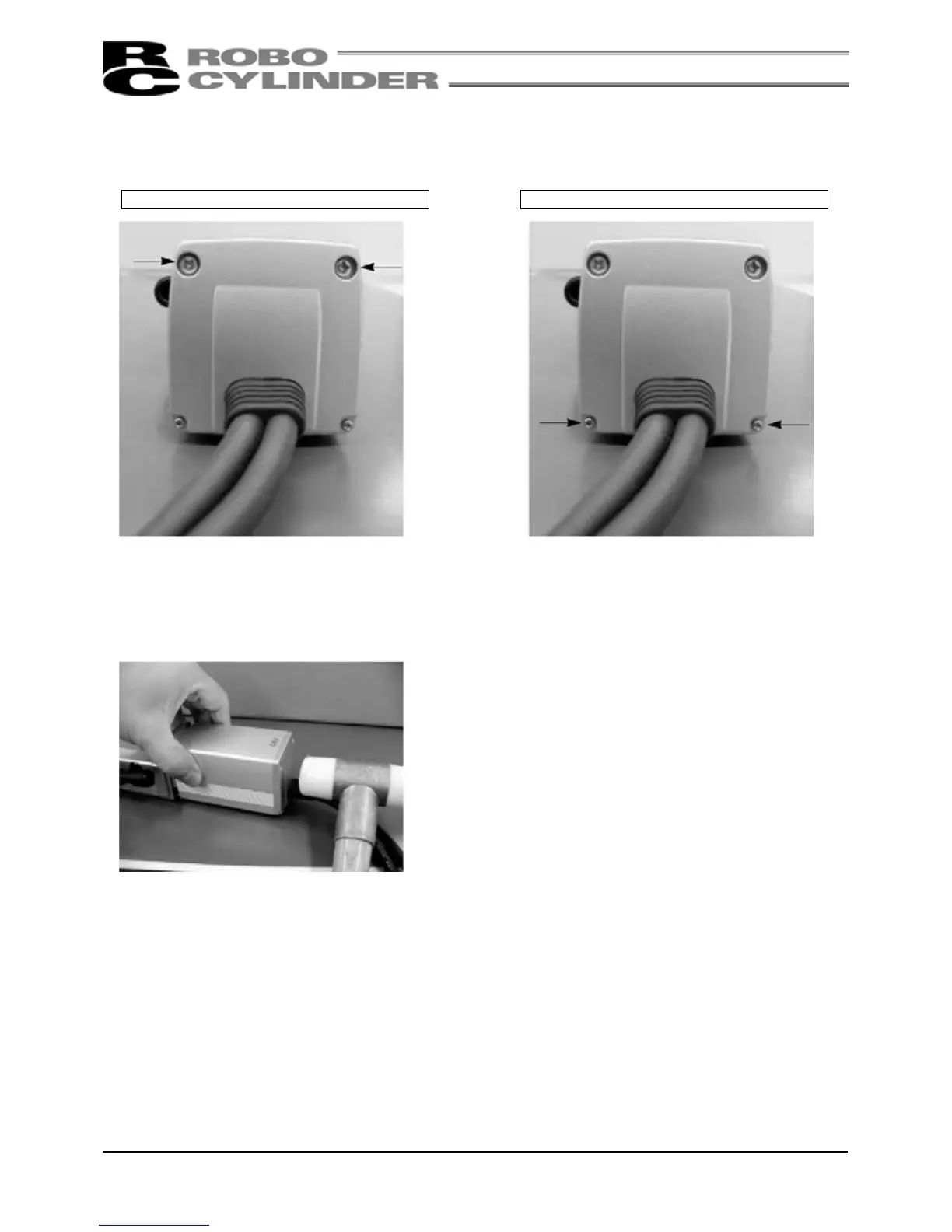

11) Affix the motor cover.
• If the positioning pin does not go in smoothly, gently tap the
motor-end cap using a plastic hammer to push in the pin.
10) Pull out the motor-end cap from the motor cover and affix it with the
pan-head screws. At this time, make sure not to pinch the cables.
• Pan-head screws (M2 x 10, 2 pcs.)
• Pan-head screws (M3 × 105, 2 pcs.)
Tightening torque: 61.5N.cm (6.3kgf.cm)
Tightening torque: 61.5N·cm (6.3kgf·cm)
Tightening torque: 16.9N·cm (1.7kgf·cm)
