58
Caution: Do not apply a force to the
encoder by touching it directly.

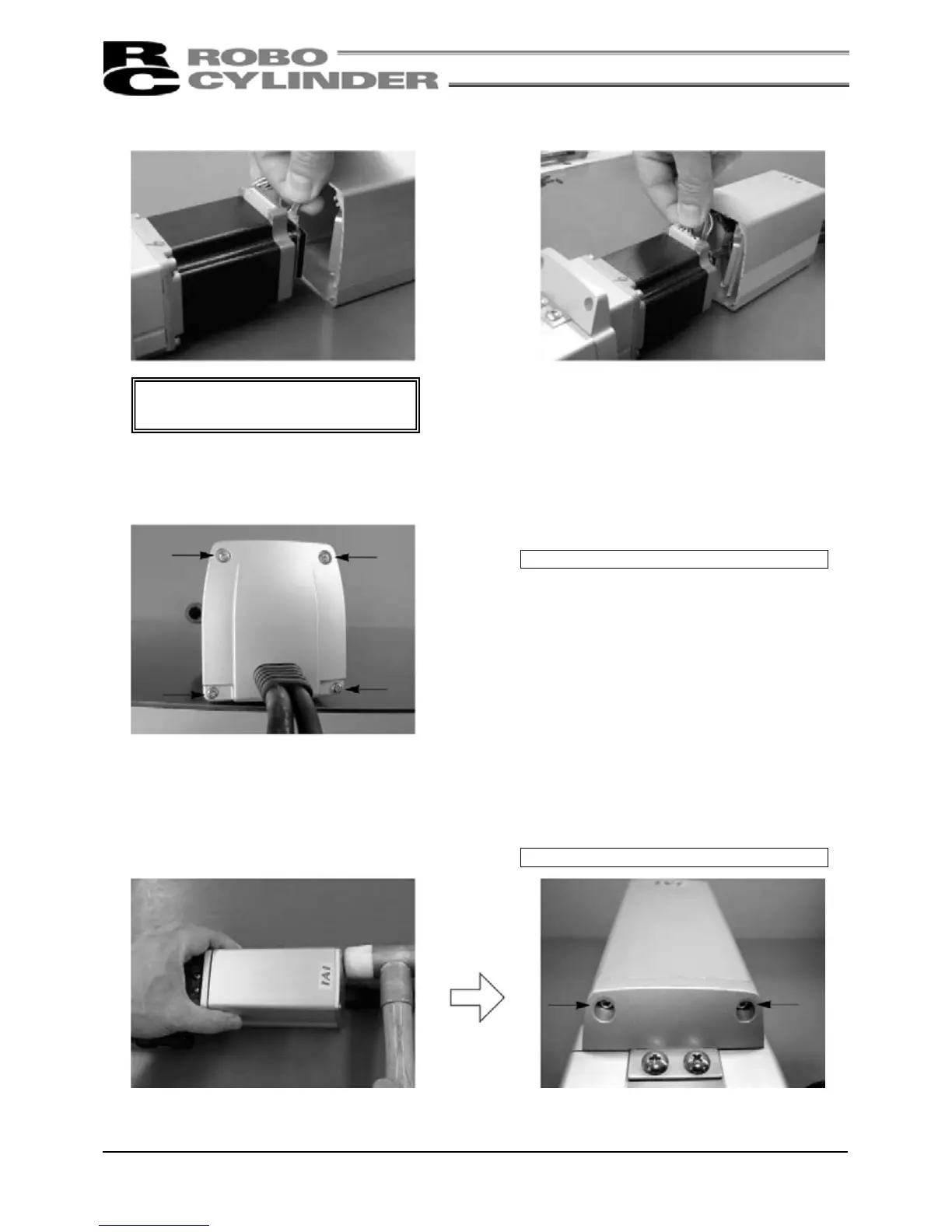

9) Connect the encoder connector.
10) Connect the motor connector.
11) Pull out the motor-end cap from the motor cover and affix it with the pan-head screws
(M3 × 105, 4 pcs.). At this time, make sure not to pinch the cables.
Tightening torque: 61.5N·cm (6.3kgf·cm)
12) Affix the motor cover.
• If the positioning pin does not go in
smoothly, gently tap the motor-end cap
using a plastic hammer to push in the pin.
• Tighten the pan-head screws (M3 x 10, 2 pcs.)
Tightening torque: 61.5N·cm (6.3kgf·cm)
To Next Page
