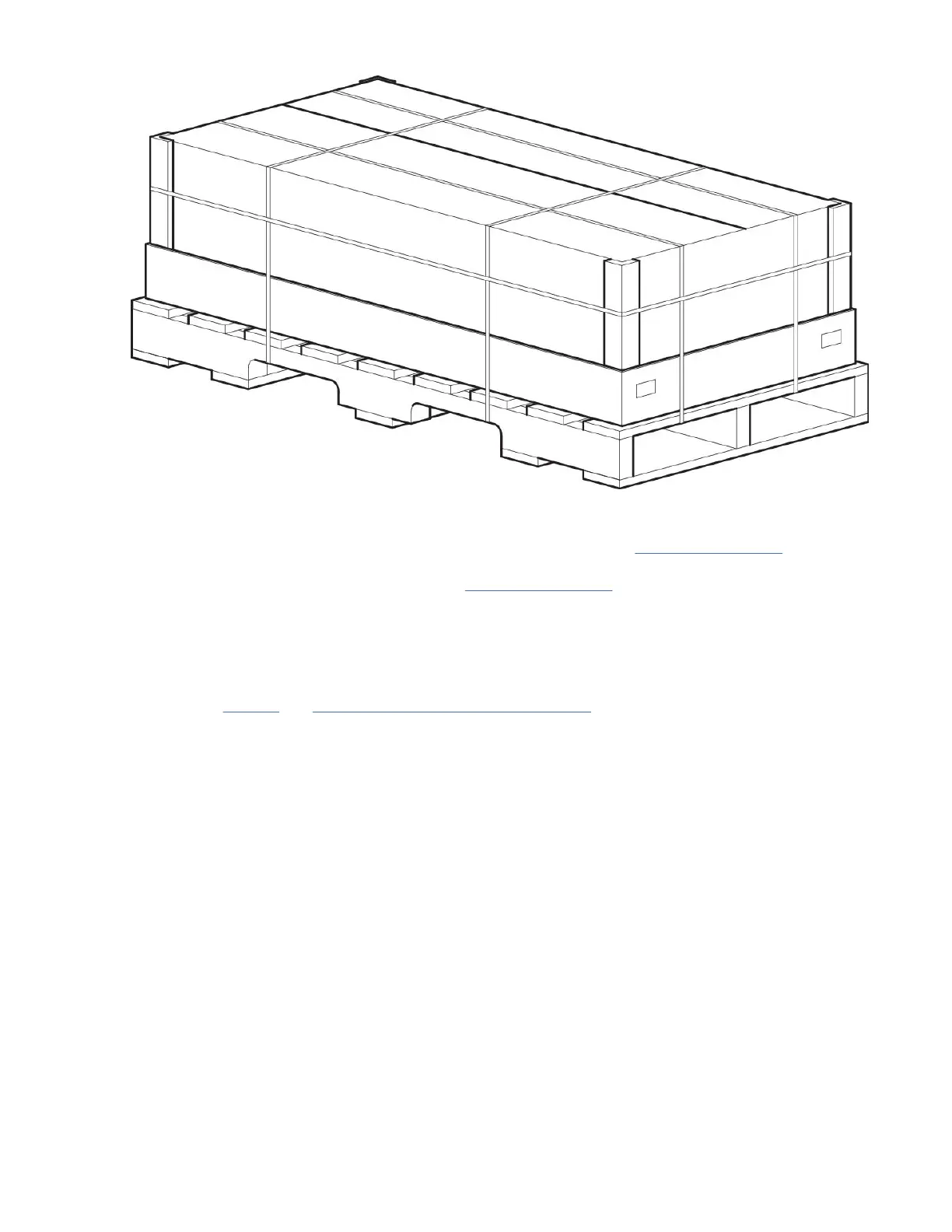

Figure 77. Unpacking the enclosure: RSC box with packing
The Regular Slotted Container (RSC) box option is shown directly above. Figure 79 on page 94 shows an
illustrated parts catalog representation of the RSC enclosure master container. This box uses a split flap-
style, as opposed to the removable lid shown in Figure 76 on page 91. The RSC conguration differs from
the 3-piece conguration: it does not include the rail kit box, CMA box, or accessory box. These items are
provided separately for this conguration.
Important: Disk drives in carriers (DDICs) are packaged separately from the Model 106 enclosure, and
are available in different assortments (single, 12-pack, 24-pack). Do not populate disk slots with DDICs
until after the enclosure has been installed in the rack using a suitable mechanical lift. See also the
CAUTION on page 10 and “Populating disk drive slots” on page 13.
