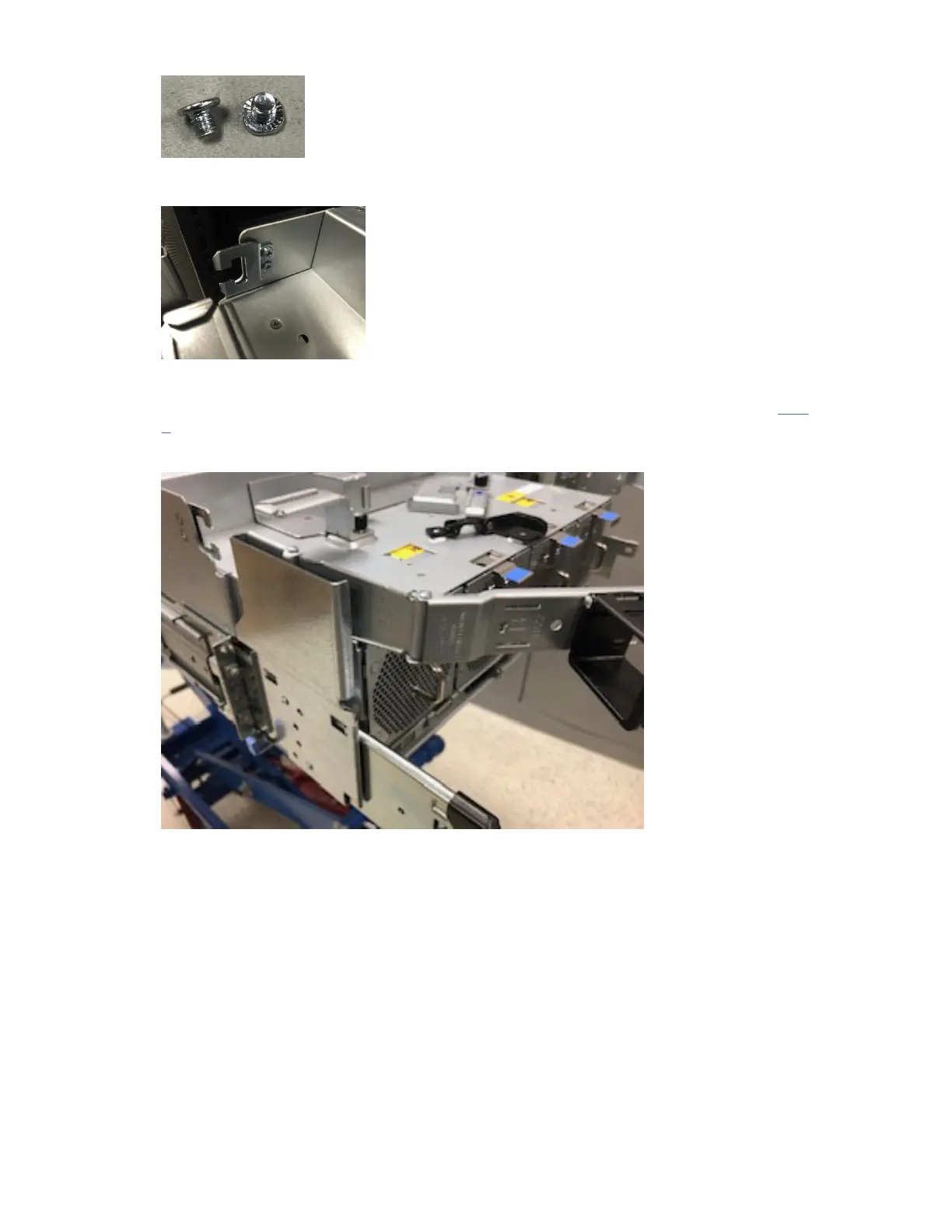

Figure 44. Panhead screws
Figure 45. Installed on 4U chassis
23. Clip the CMA “B” bracket onto the right rail subassembly CMA attachment bracket (from step
7).Ensure that the blue spring clips onto the C-shaped CMA attachment bracket securely, and the
arrow next to the “B” mark on the CMA arm is pointed upward. The "B" bracket should reside outside
of the CMA ramp "lip" (see middle photo).
Figure 46. CMA “B” bracket
Chapter 4. Installation
43
