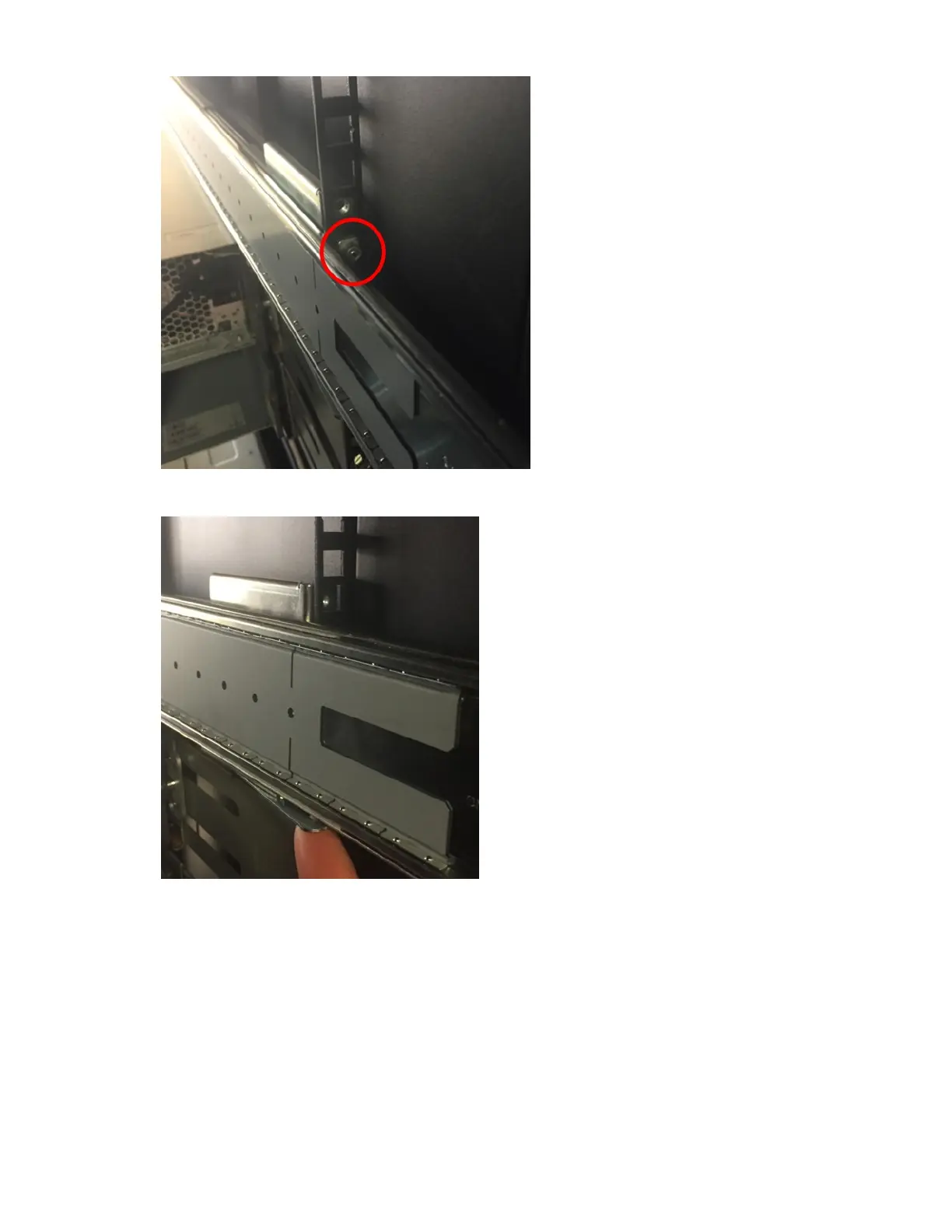

Figure 32. Fastener detail
Figure 33. Attachment spring detail
9. Attach the front mounting bracket to the rack post, ensuring that the rail subassembly occupies the
lower 2U portion of the alloted 4U space. The front mounting bracket spring will clip onto the post.
Ensure that the quantity-2 all-in-one rail kit mounting hardware fully seats into the rack post
mounting hole.
Chapter 4. Installation
37
