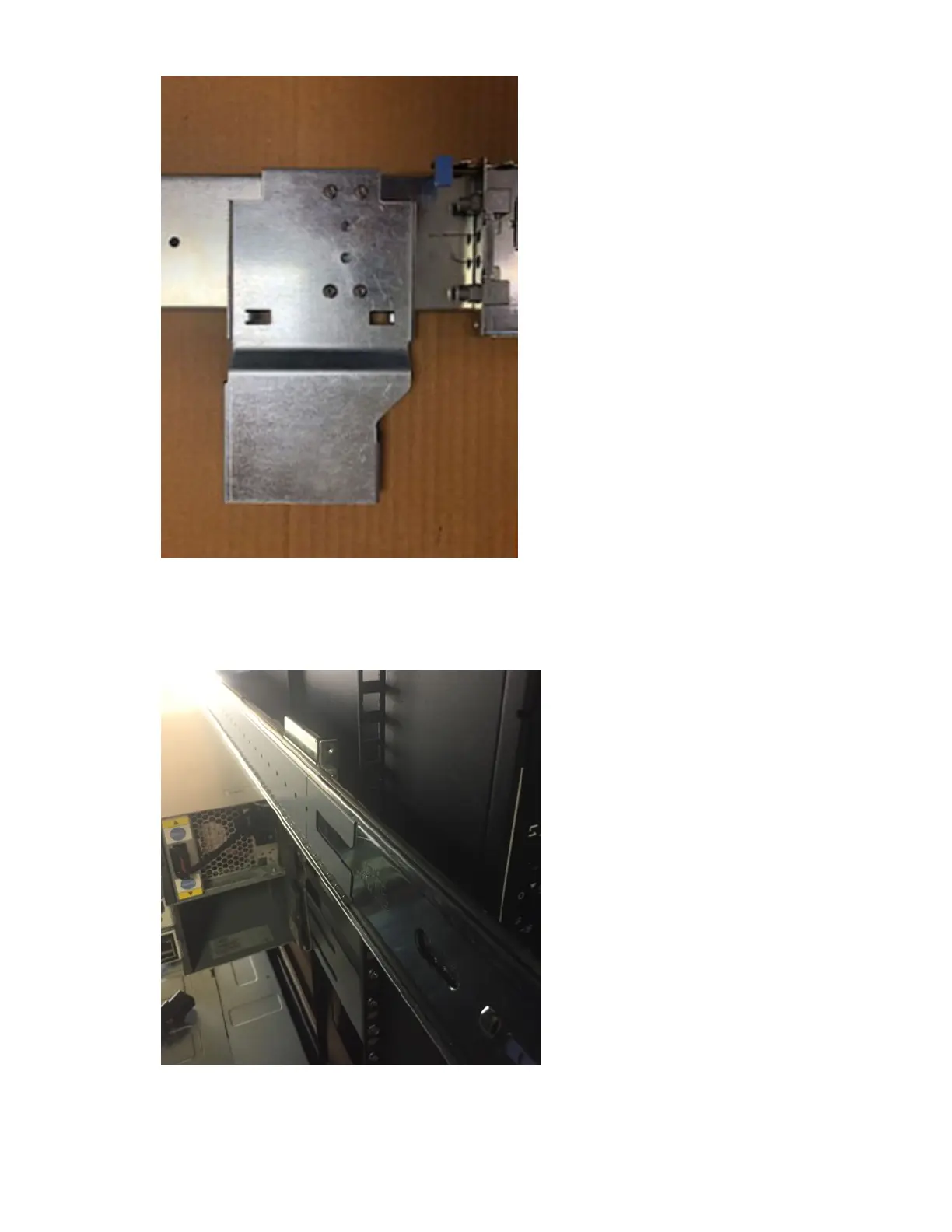

Figure 30. CMA attachment installed on outer slide
8. Insert the right rail subassembly into the rack. Attach the adjustable rear mounting bracket to the rail
rst, ensuring that the rail subassembly occupies the lower 2U portion of the allotted 4U space. The
rear mounting bracket spring will clip onto the rail. Ensure that the quantity-2 all-in-one rail kit
mounting hardware fully seats into the rack post mounting hole.
Figure 31. Location detail
36
IBM ESS expansion: Hardware Installation and Maintenance Guide - Model 106
