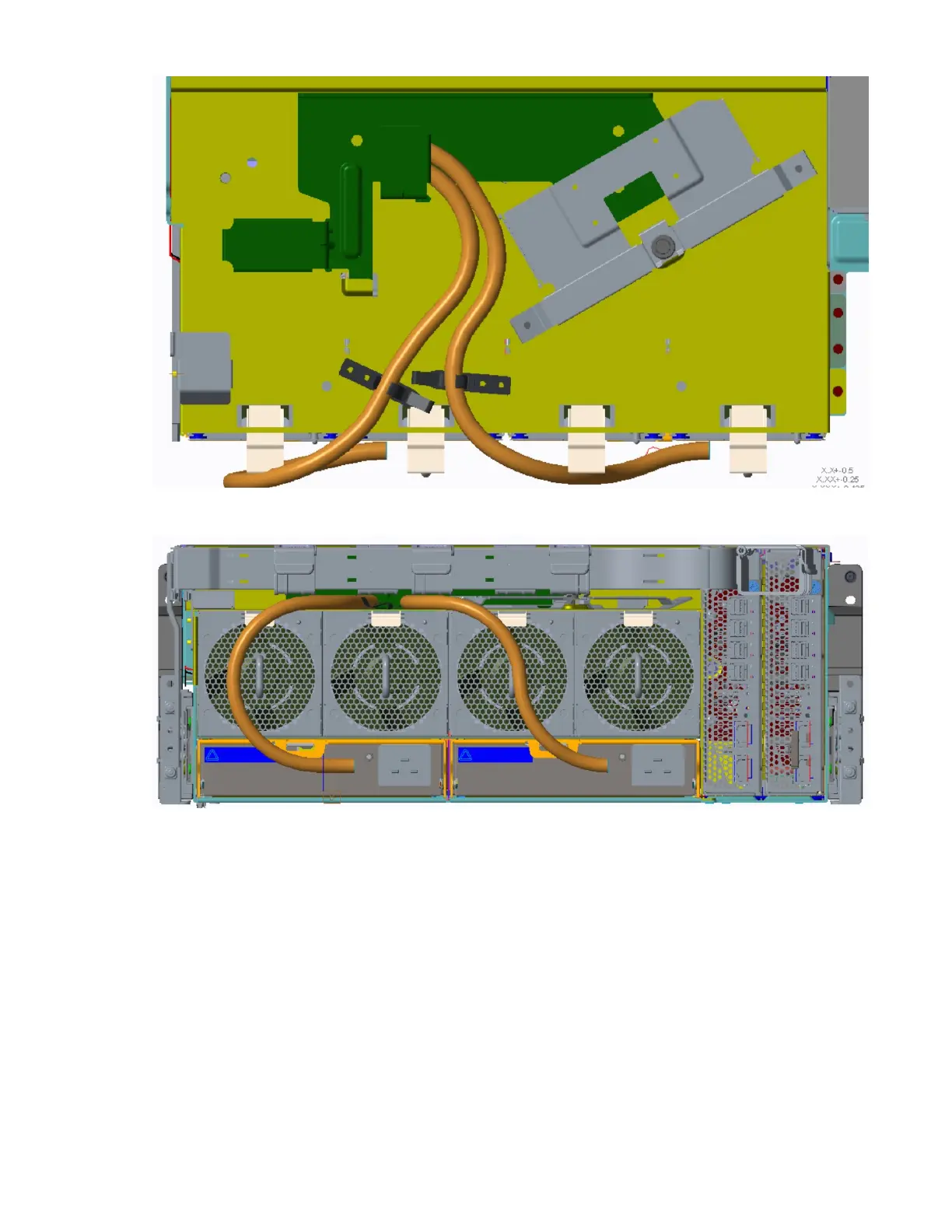

Figure 55. CMA shelf viewed from top panel of Model 106 enclosure
Figure 56. CMA shelf viewed from rear panel of Model 106 enclosure
4. Route cables through CMA baskets.
a. Route cables through the rst two baskets, ensuring minimal cable crossover to maximize space.
b. Use all available space on the CMA shelf to make the rst 180º bend into the rst CMA basket.
c. Keep pairs of dual SAS cables parallel and close together.
d. After all cables (including PSU cables) are routed through the rst two CMA baskets, route them
around a 180º bend into the remaining four CMA baskets.
Chapter 4. Installation
49
