6. Take the right outer rail subassembly in hand, and flip it over (rotate it 180º along its longitudinal
axis).
Attachment holes for Step No.7 are identied above.

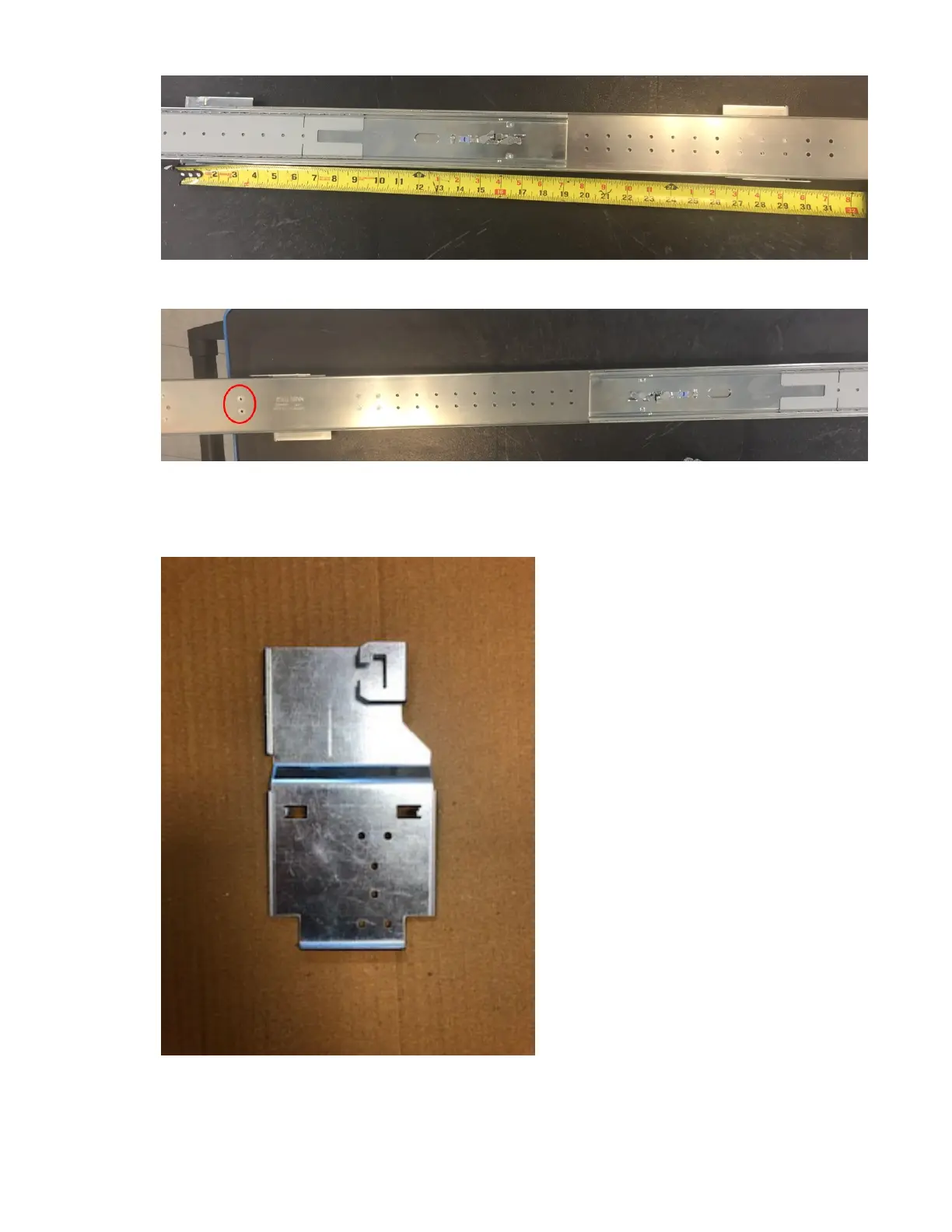

7. Using the quantity-4 panhead screws provided with the CMA kit, attach the CMA attachment bracket
to the rear end of the outer slide, on its outside surface. The following images show the progression
of steps from top to bottom.
Figure 27. CMA attachment
34
IBM ESS expansion: Hardware Installation and Maintenance Guide - Model 106
