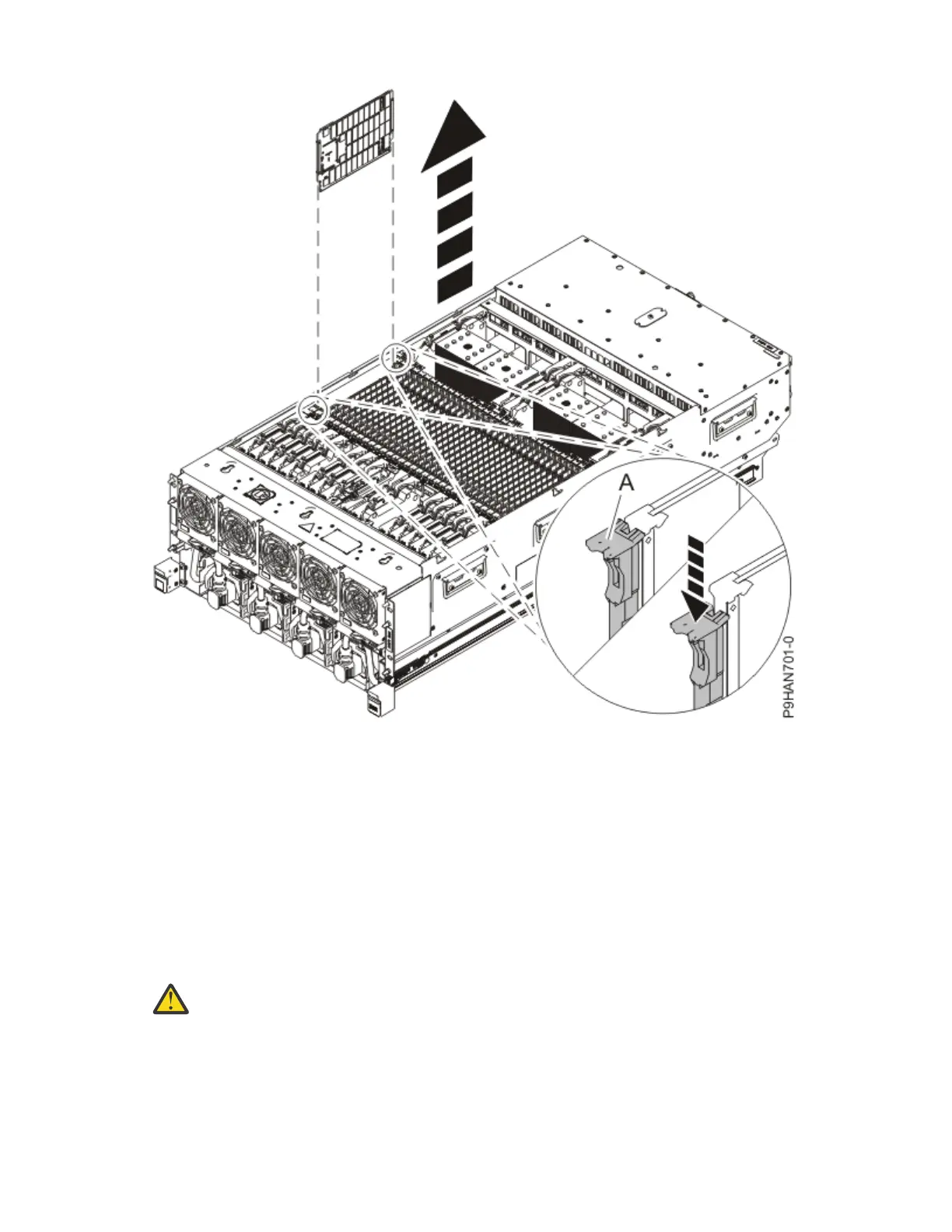

Figure 143. Removing memory modules
4. Hold the memory module by the edges and pull it out of the system.
5. If the removed part is used again, place the part on an electrostatic discharge (ESD) mat.
Replacing a memory module in the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Use the slot information that you recorded to determine the slot location to place the memory module.
3. Grasp the new memory module along its edges and align it with the slot.
Attention:
Memory modules are keyed to prevent a memory module from being installed
incorrectly. Note the location of the key tab within the memory module connector before you
attempt to install the memory module.
4. Replace the memory module by pushing it into slot until the tabs (A) lock into place as shown in the
following îš³gure.
Memory modules
165
