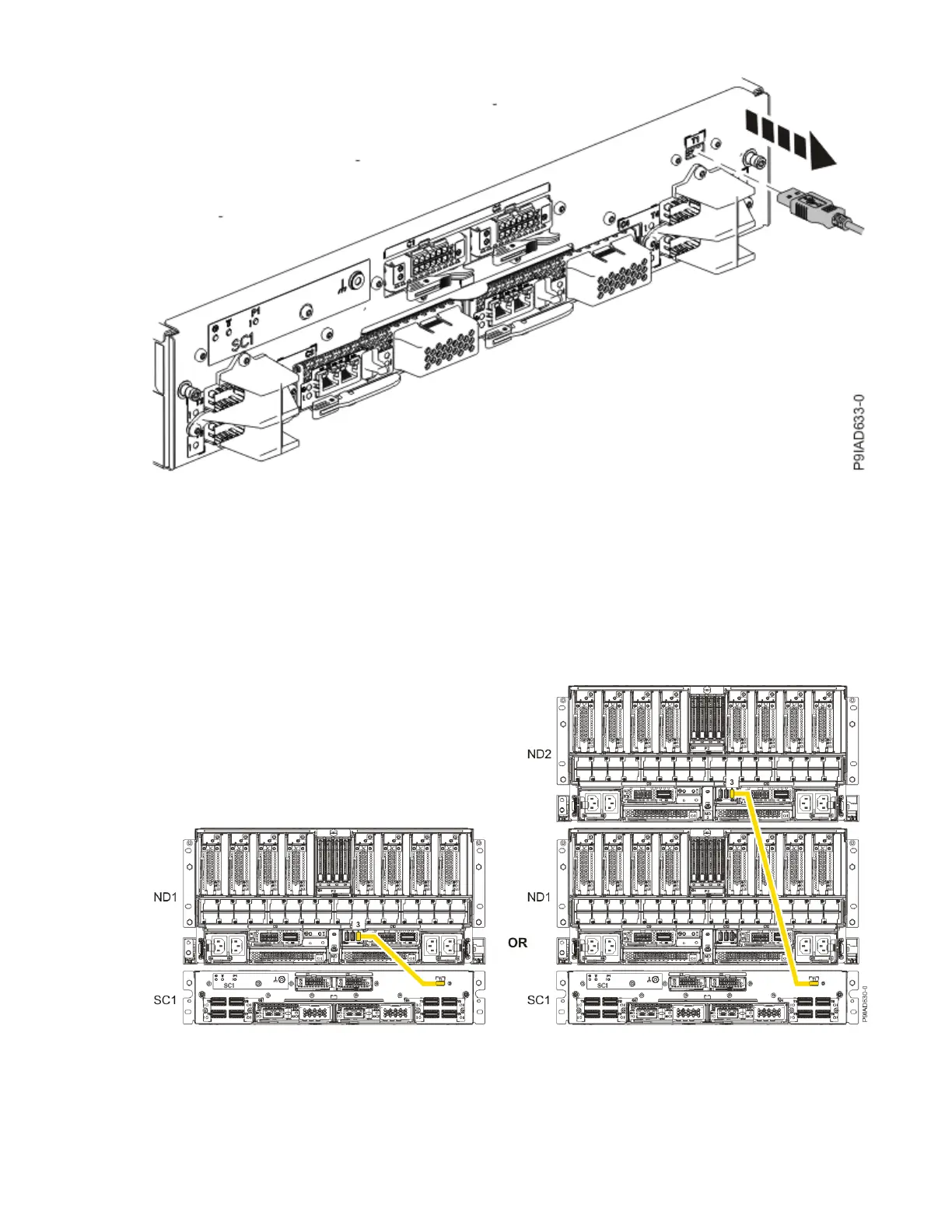

Figure 52. Removing the UPIC cable from the system control unit
Replacing a USB cable in the 9080-M9S system
To replace a USB cable in the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Refer to the following îš³gure and table to determine the point-to-point cabling for the USB cable.
Figure 53. USB Cabling
Cables
59
