Replacing the USB card in the 9080-M9S system
To replace the USB card in the system, complete the steps in this procedure.
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. To replace the USB card, complete the following steps:
a) Ensure that the USB card handle (A) is open as shown in the following îš³gure.
b) Hold on to the USB card handle and by using your hand to support the bottom of the USB card,
push the USB card into its slot as shown in the following îš³gure.
c) Rotate the handle to the right in the direction shown in the following îš³gure to lock the USB card into
the system.

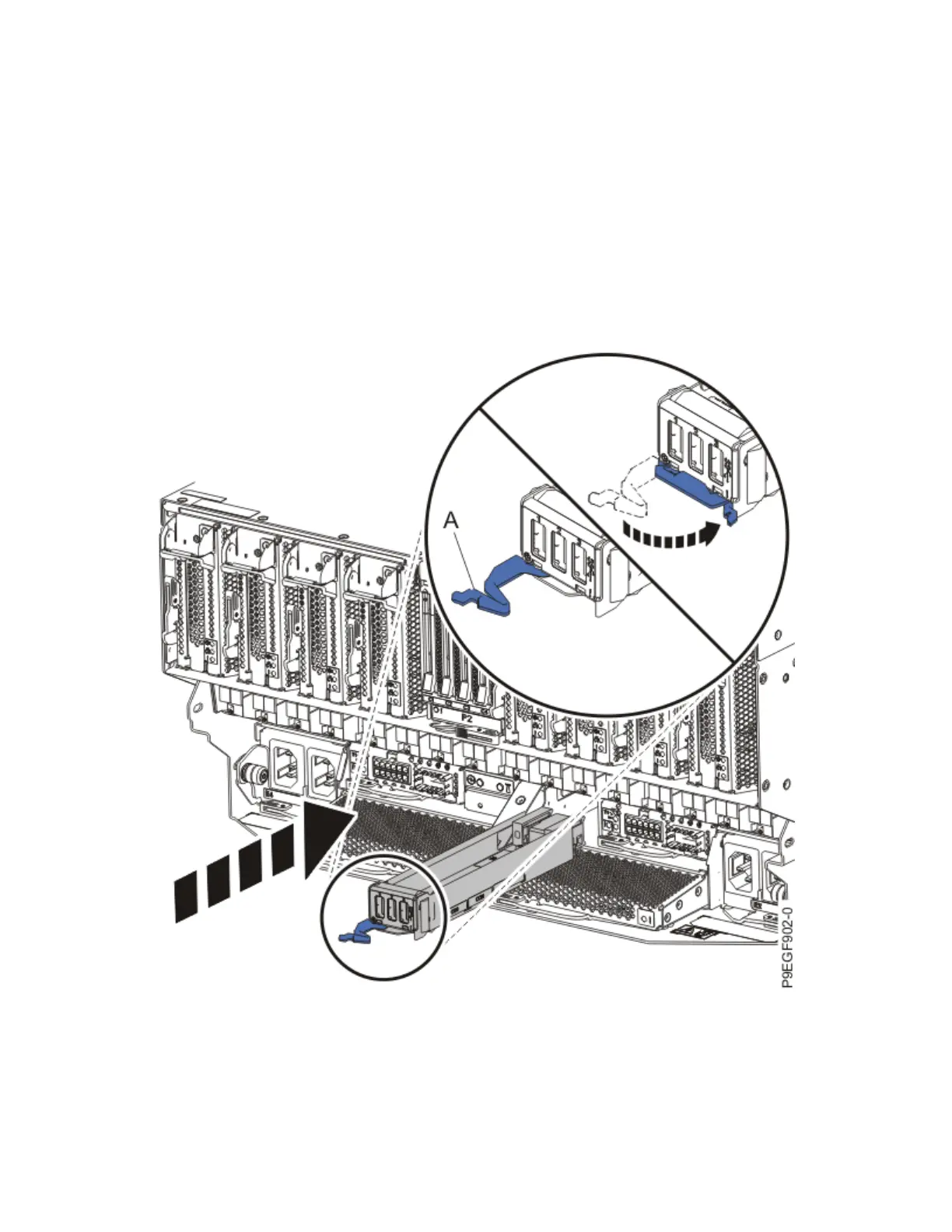

Figure 615. Replacing a USB card in the system
USB card
703
