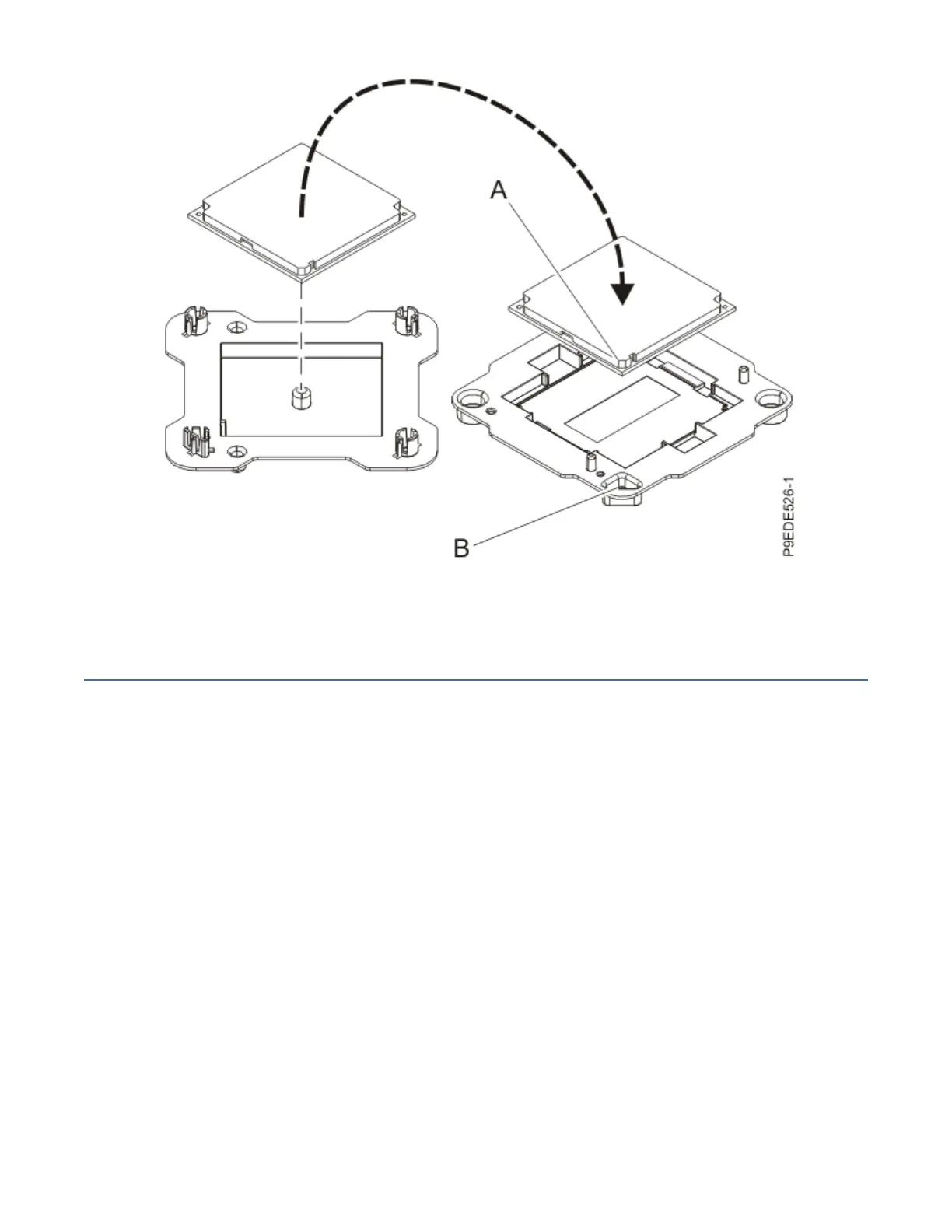

Figure 584. Placing the system processor module into the packaging
Preparing the 9080-M9S system for operation after removing and replacing
a system processor module
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Replace the service access cover by completing the following steps.
a) Slide the cover (A) onto the system unit as shown in the following îš³gure.
b) Close the release latch (B) by pushing it in the direction shown in the following îš³gure.
664
Power Systems: Removing and replacing parts in the 9080-M9S system
