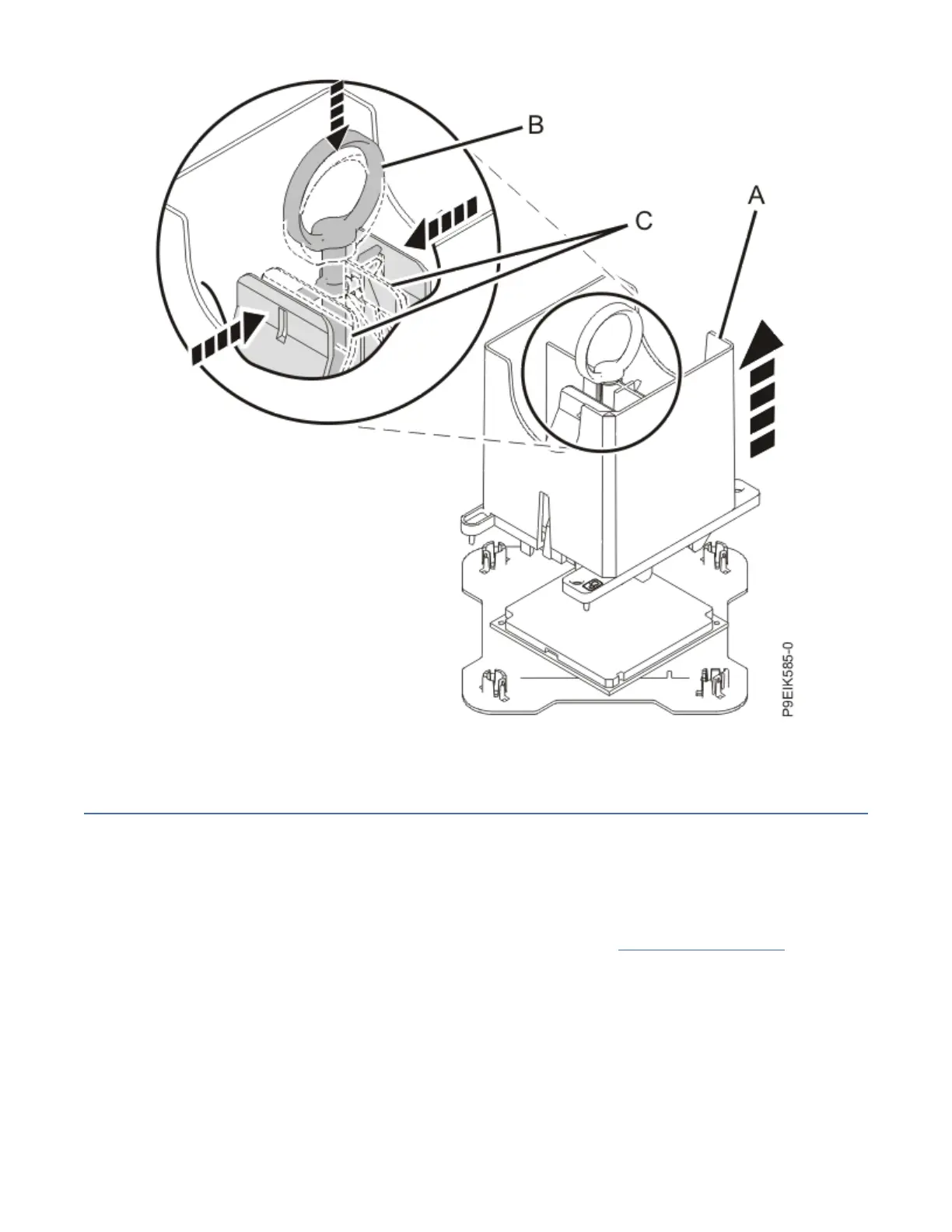

Figure 571. Releasing the system processor module from the tool
Replacing a system processor module in the 9080-M9S system
Procedure
1. Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is plugged
into a ground jack or connected to an unpainted metal surface. If not, do so now.
2. Prepare the system processor module for installation:
a) Ensure that the removal tool is in the open position as shown in Figure 572 on page 652. The
middle ring must be pushed down and blue tabs must be turned inward.
System processor module
