IBM 9080-M9S

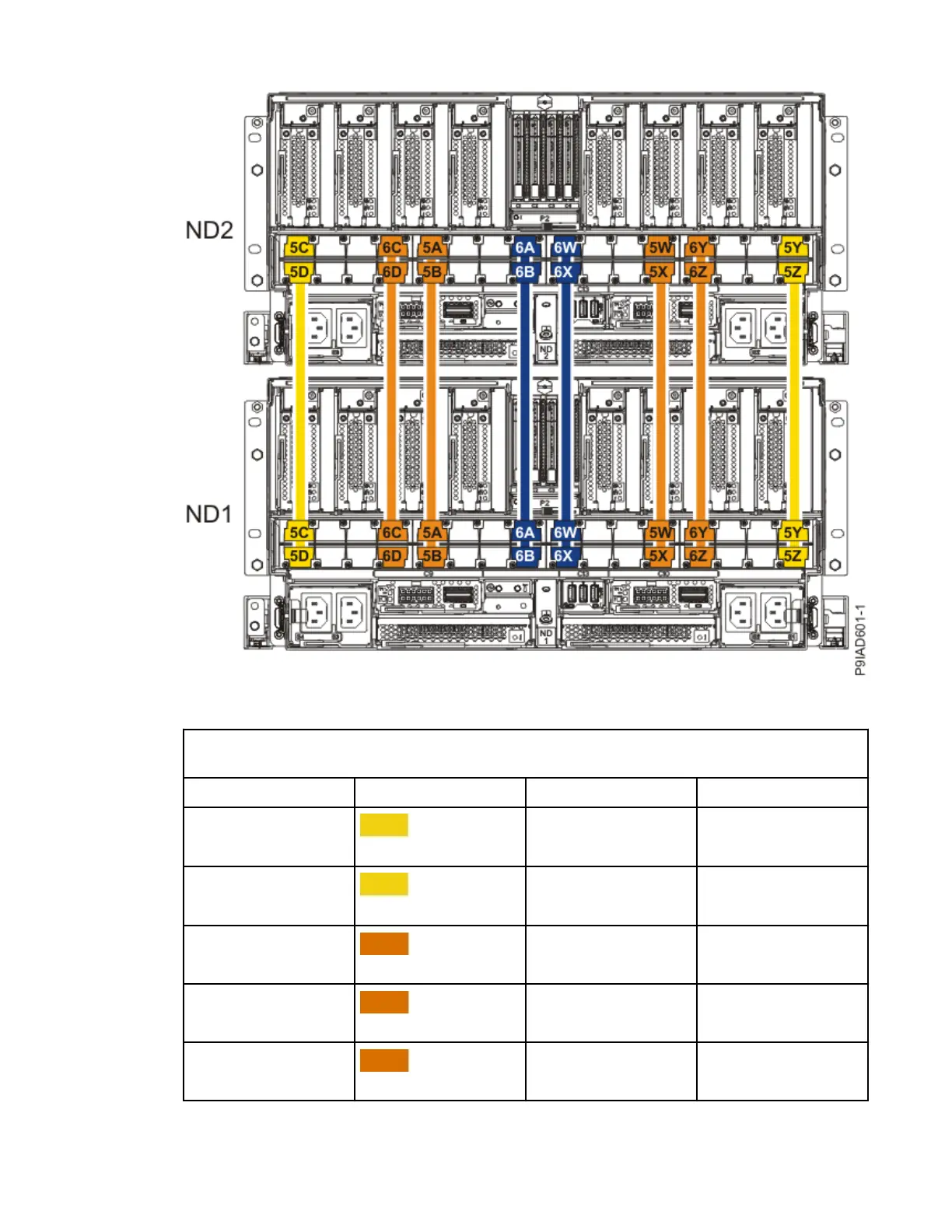

Figure 149. Cabling a Two Node Conguration
Table 17. Cabling a Two Node
Conguration. Each connection that is shown in the diagram
represents a pair of SMP cables.
Cable Cable type and length From To
5C 880 mm (2.9
ft)
ND1-P1-T1 ND2-P1-T1
5D 880 mm (2.9
ft)
ND1-P1-T2 ND2-P1-T2
6C 1005 mm (3.3
ft)
ND1-P1-T7 ND2-P1-T7
6D 1005 mm (3.3
ft)
ND1-P1-T8 ND2-P1-T8
5A 1005 mm (3.3
ft)
ND1-P1-T9 ND2-P1-T9
Memory modules 171
