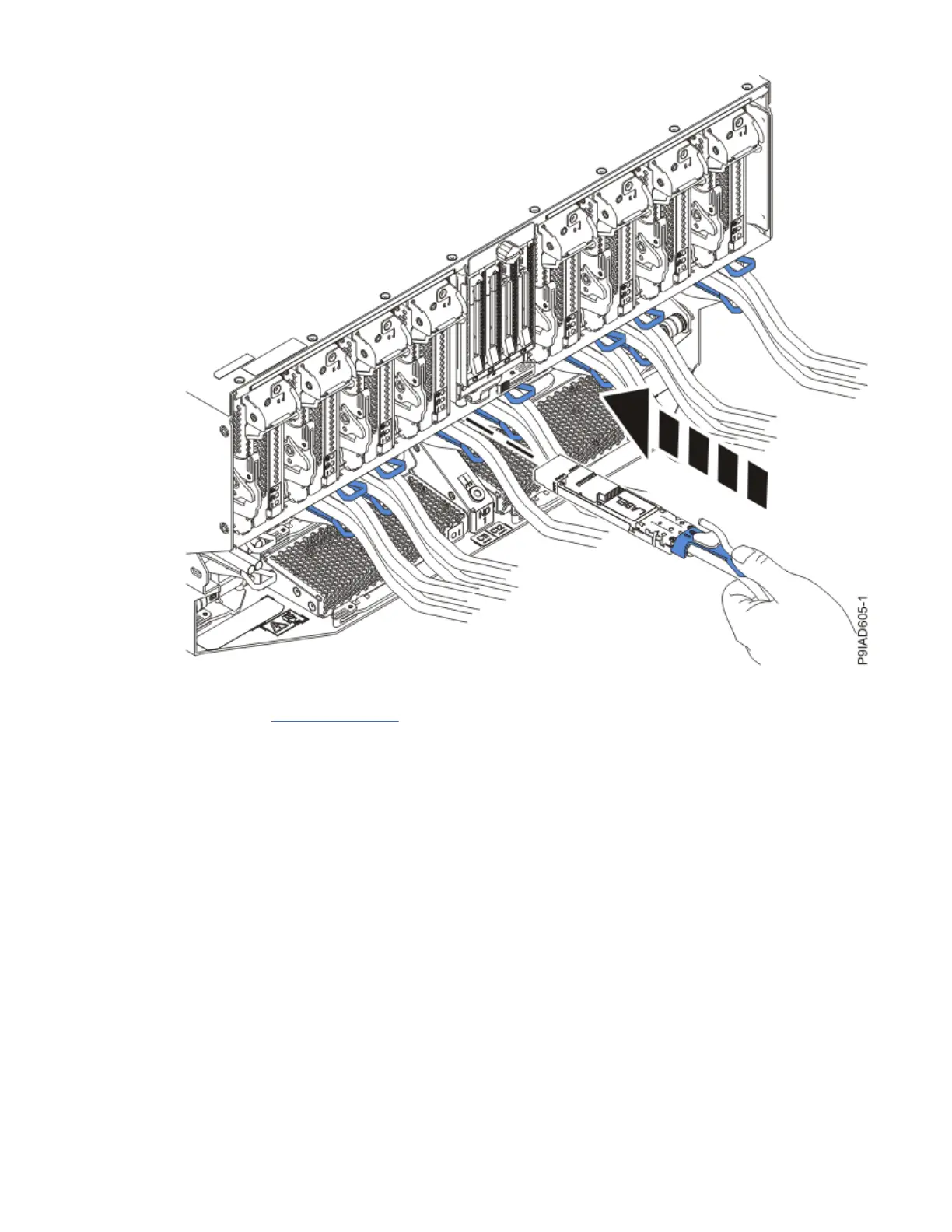

Figure 152. Replacing the SMP cable into the system node
b)
Repeat step “4.a” on page 179 until all the SMP cables previously
identied
are reconnected to
the system node you are servicing.
c)
If you removed any SMP cable clips from the side of the rack, using your labels, reattach the cable
bundle to the side of the cable management bracket as shown in the following
gure.
180
Power Systems: Removing and replacing parts in the 9080-M9S system
