IBM 9080-M9S

Table 22. Service processor (FSP) cable locations
Drawer Cable Cable Length From To
ND4 (top) A 1330 mm (4.36 ft) SC1-P1-T7 ND4-P1-C9-T2
B 1330 mm (4.36 ft) SC1-P1-T9 ND4-P1-C10-T2
ND3 A 1110 mm (3.64 ft) SC1-P1-T6 ND3-P1-C9-T2
B 1110 mm (3.64 ft) SC1-P1-T8 ND3-P1-C10-T2
ND2 A 855 mm (2.81 ft) SC1-P1-T2 ND2-P1-C9-T2
B 855 mm (2.81 ft) SC1-P1-T4 ND2-P1-C10-T2
ND1 (bottom) A 355 mm (1.16 ft) SC1-P1-T3 ND1-P1-C9-T2
B 355 mm (1.16 ft) SC1-P1-T5 ND1-P1-C10-T2
7. Review the following information to identify the locations where the USB cable connects to the
system node that you are servicing and to the system control unit. Then, reconnect the USB cable
that you removed.

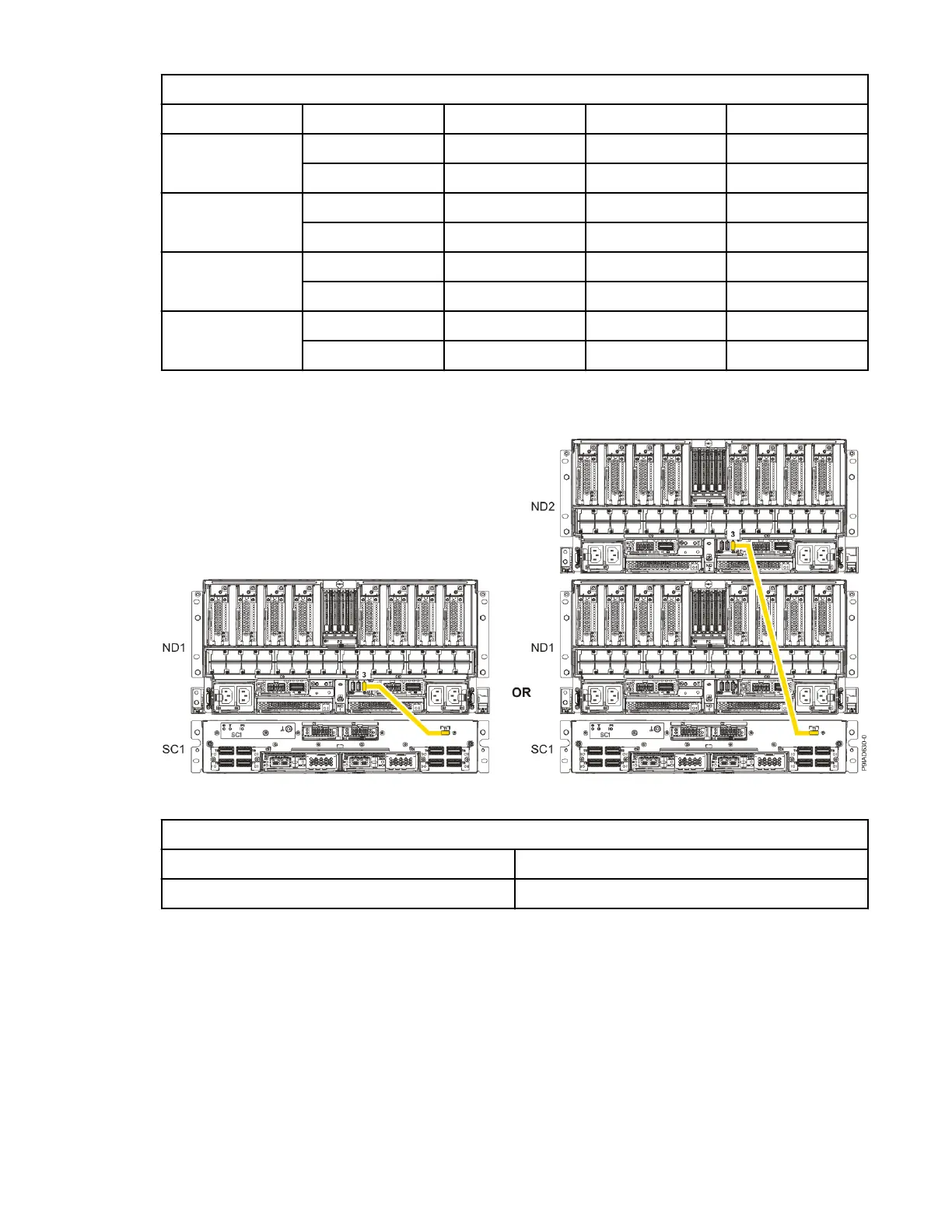

Figure 162. USB Cabling
Table 23. USB Cabling
From To
ND1 or ND2: P1-C13-T3 SC1: P1-T1
a) Plug the USB cable into the previously identied location in the system node by inserting the cable
into the connector, as shown in the following gure.
Memory modules
189
