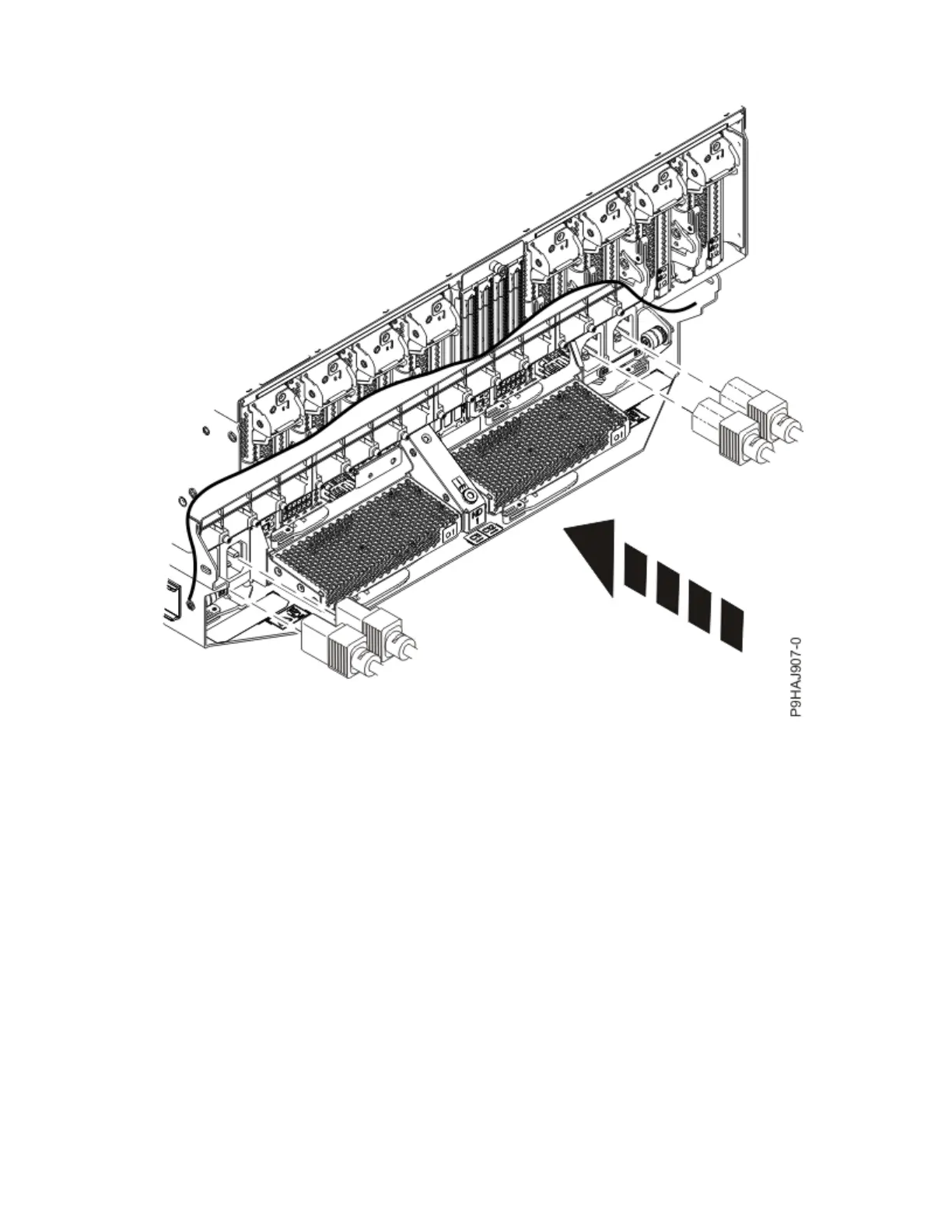

Figure 205. Connecting the rear power cords
10. Using your labels, reconnect the UPIC cables to the system control unit.
UPIC cable locations are P1-C1-T1 and P1-C2-T1.
a. Ensure that the white plastic lock is pulled back from the plug housing.
b. Plug the UPIC cable (A) into the previously identied location in the system control unit by
inserting the cable into the connector until it locks into place.
