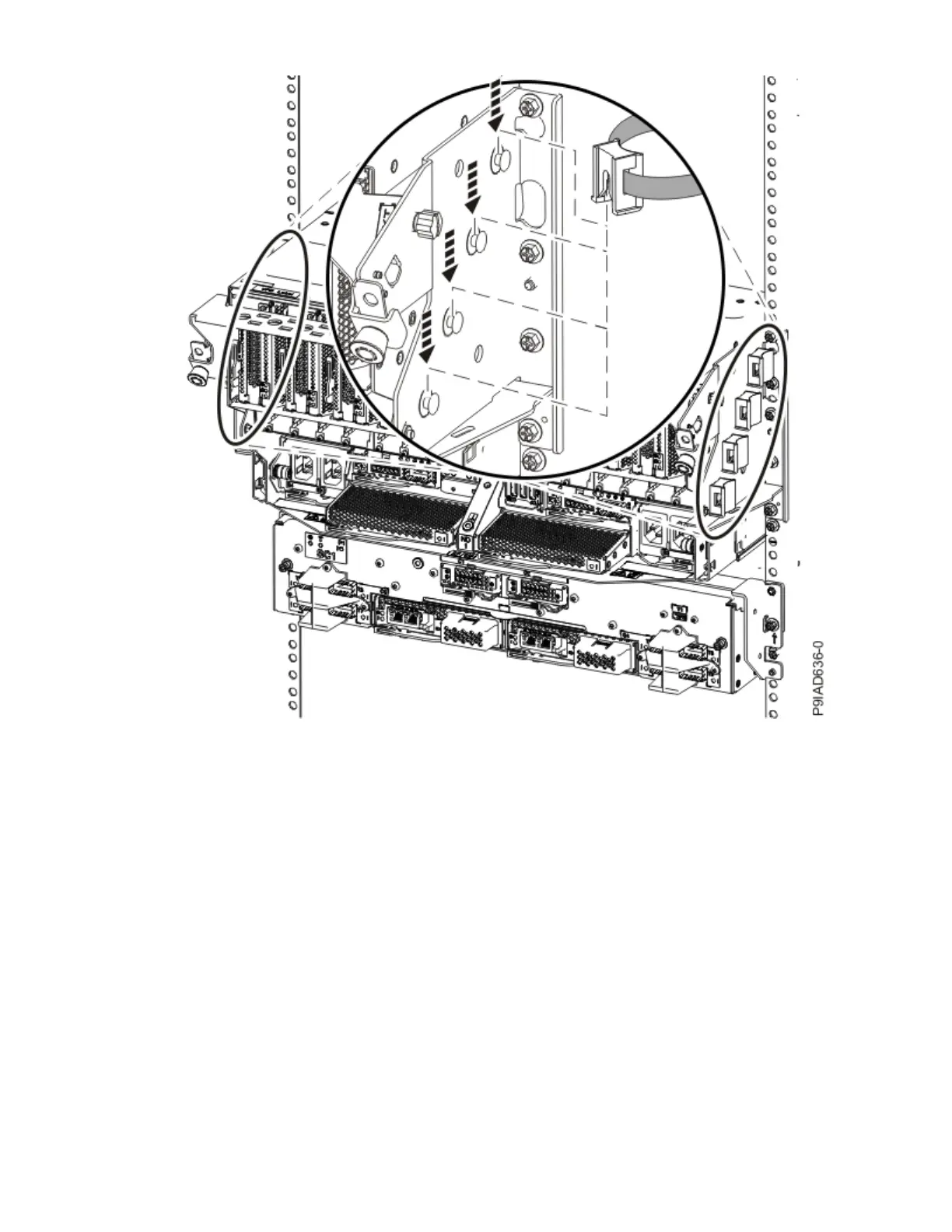

Figure 233. Attaching a cable clip
To determine how to bundle the cables and where to attach the cable bundles, refer to the
information card inserted into the rear of the system control unit. You can also refer to the
following
îš³gures.
The number in the cable label indicates the bundle for that cable.
Two system node
conîš³guration
: The two system node
conîš³guration
has four cable bundles.
274
Power Systems: Removing and replacing parts in the 9080-M9S system
279
281
Table of Contents
