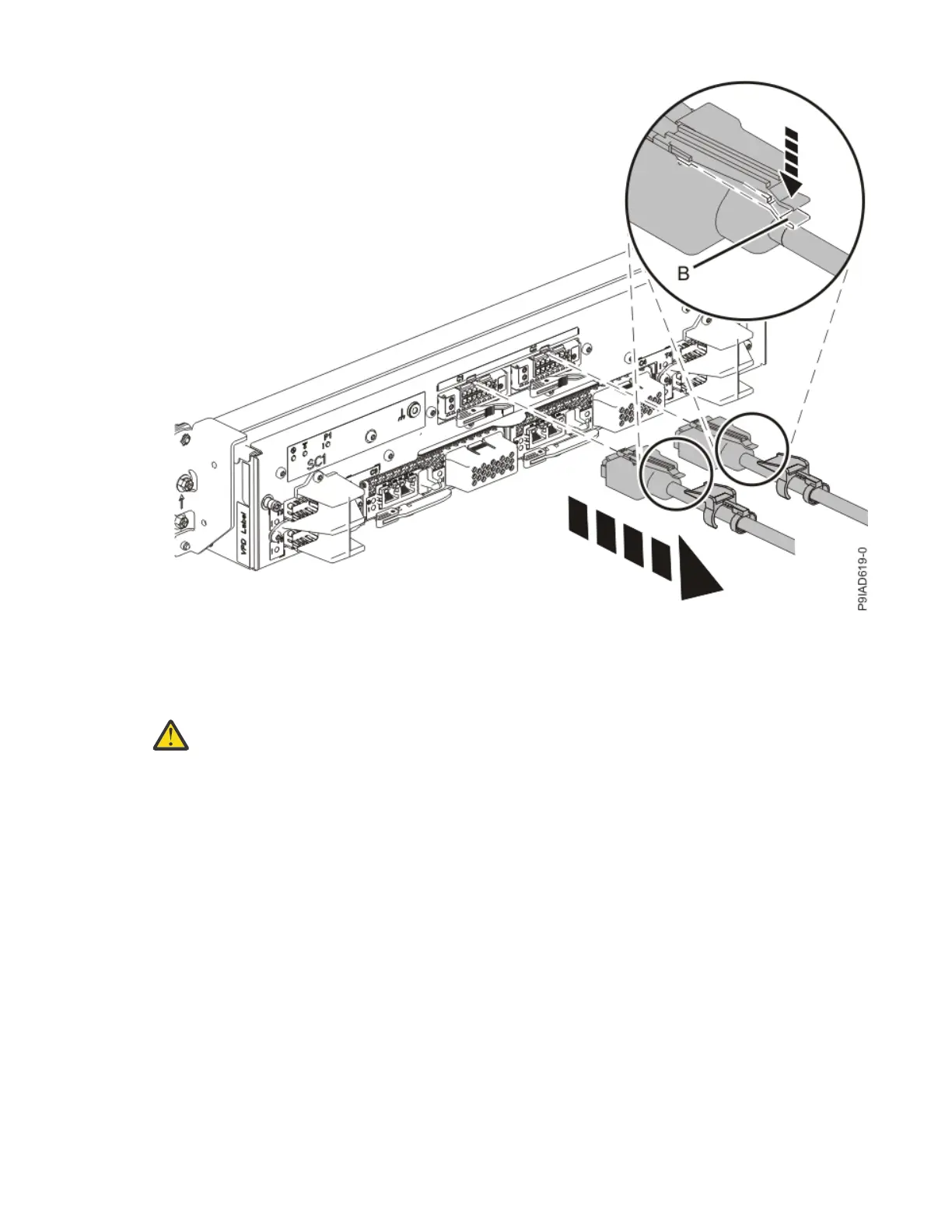

Figure 329. Removing the UPIC cable from the system control unit
3. Remove the front cover from the node that is being serviced.
Place your ngers on the indentations located on both sides of the cover (A) and pull the cover away
from the system as shown in the following gure.
CAUTION:
The fans can pull in hair, jewelry, loose clothing, and so forth, and cause injury or
damage. Operate the system with the bezel installed. For service operations, if the front cover
must be removed with the system operating, ensure that all such loose material is secured
away from the fan area, to prevent any loose material from being pulled into the fan.
384 Power Systems: Removing and replacing parts in the 9080-M9S system
