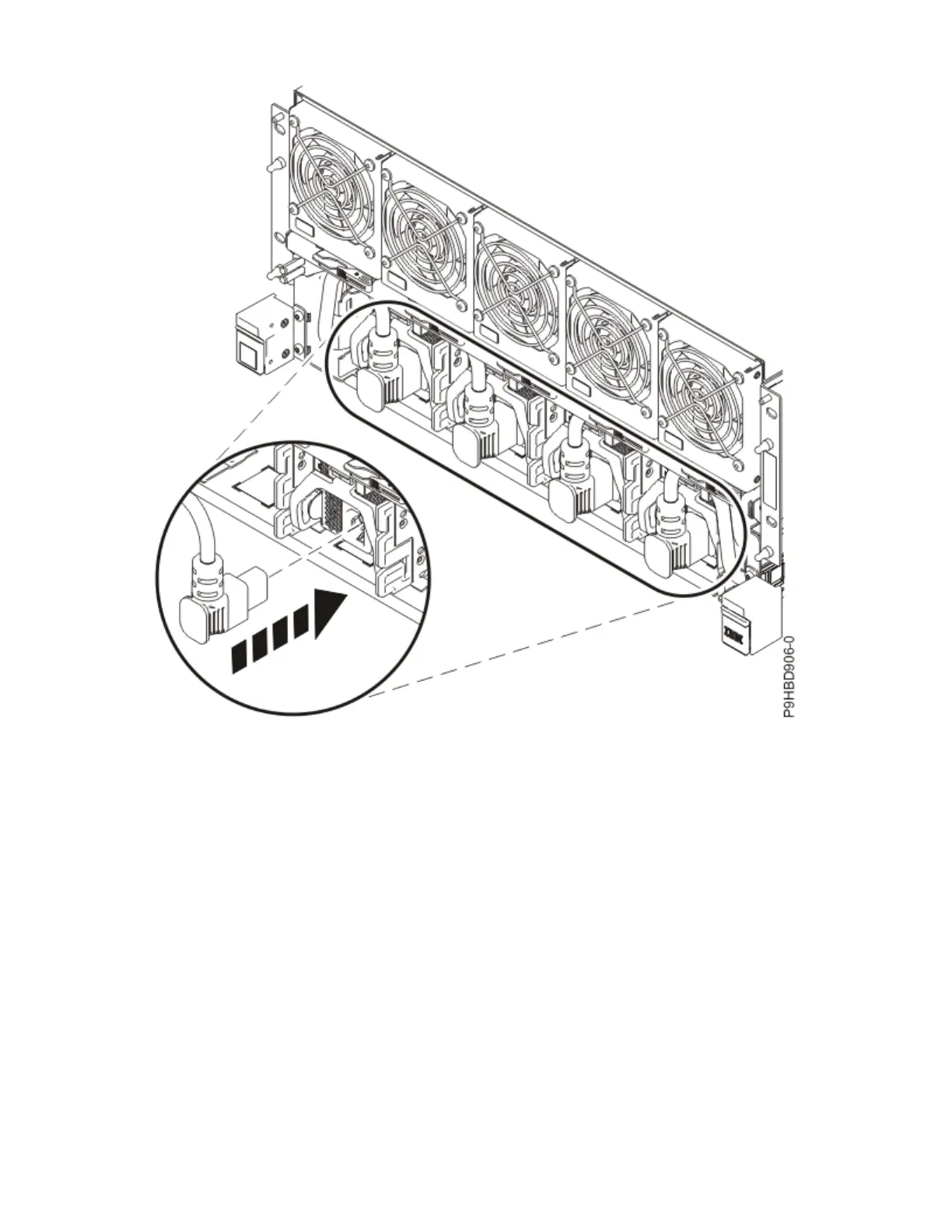

Figure 338. Connecting the front power cords
4. Position the cover (A) on the front of the system unit as shown in the following gure, so that the four
pins (B) on the system match the four holes at the rear of the cover.
Press the front cover into position.
394
Power Systems: Removing and replacing parts in the 9080-M9S system
