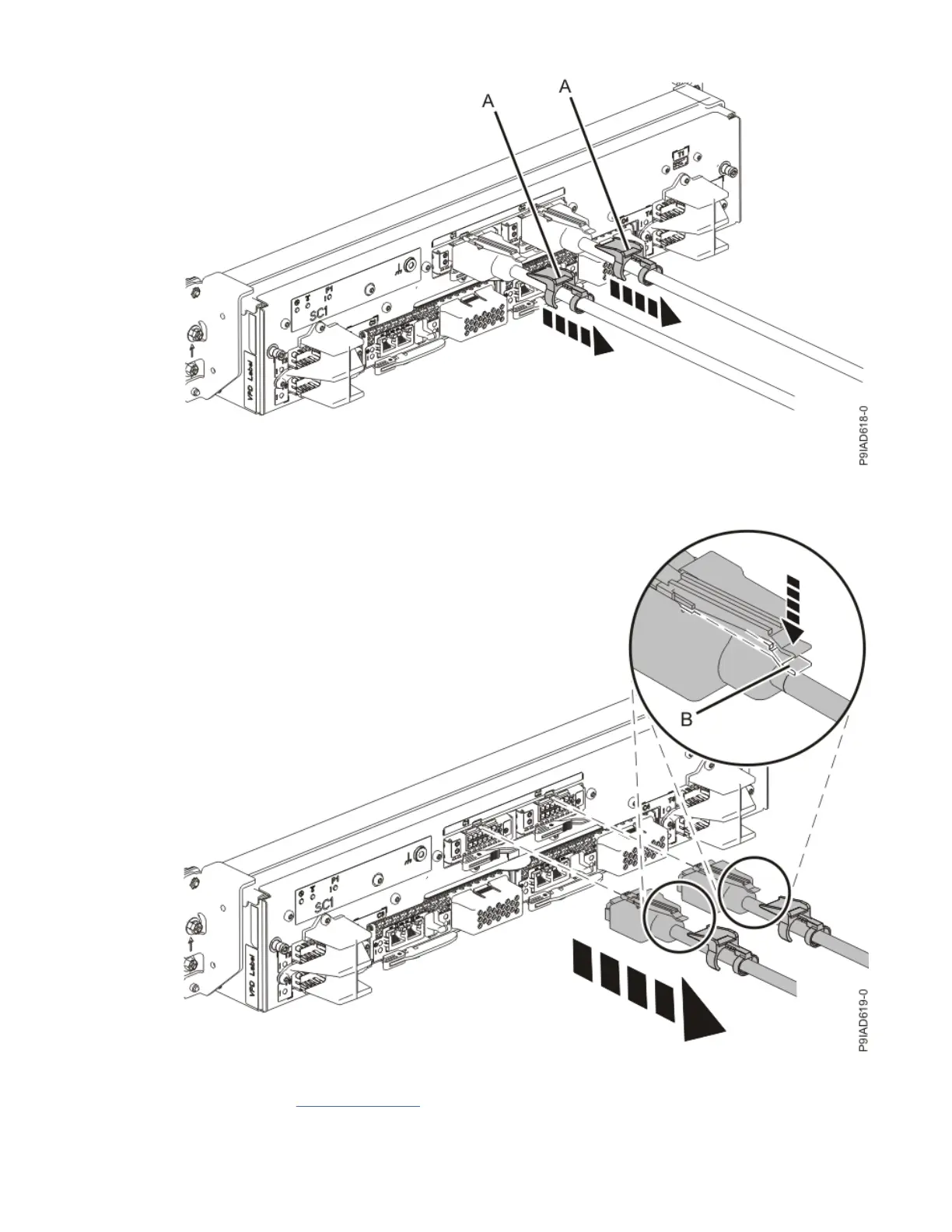

Figure 344. Removing the UPIC cable lock
b. Push down on the blue cable latch (B) and pull out the UPIC cable from the system control unit.
Figure 345. Removing the UPIC cable from the system control unit
8. Continue with step “12” on page 403.
9. To identify the available NVMe U.2 drive slots by using the AIX operating system, complete the
following steps.
NVMe drives
401
