IBM 9080-M9S

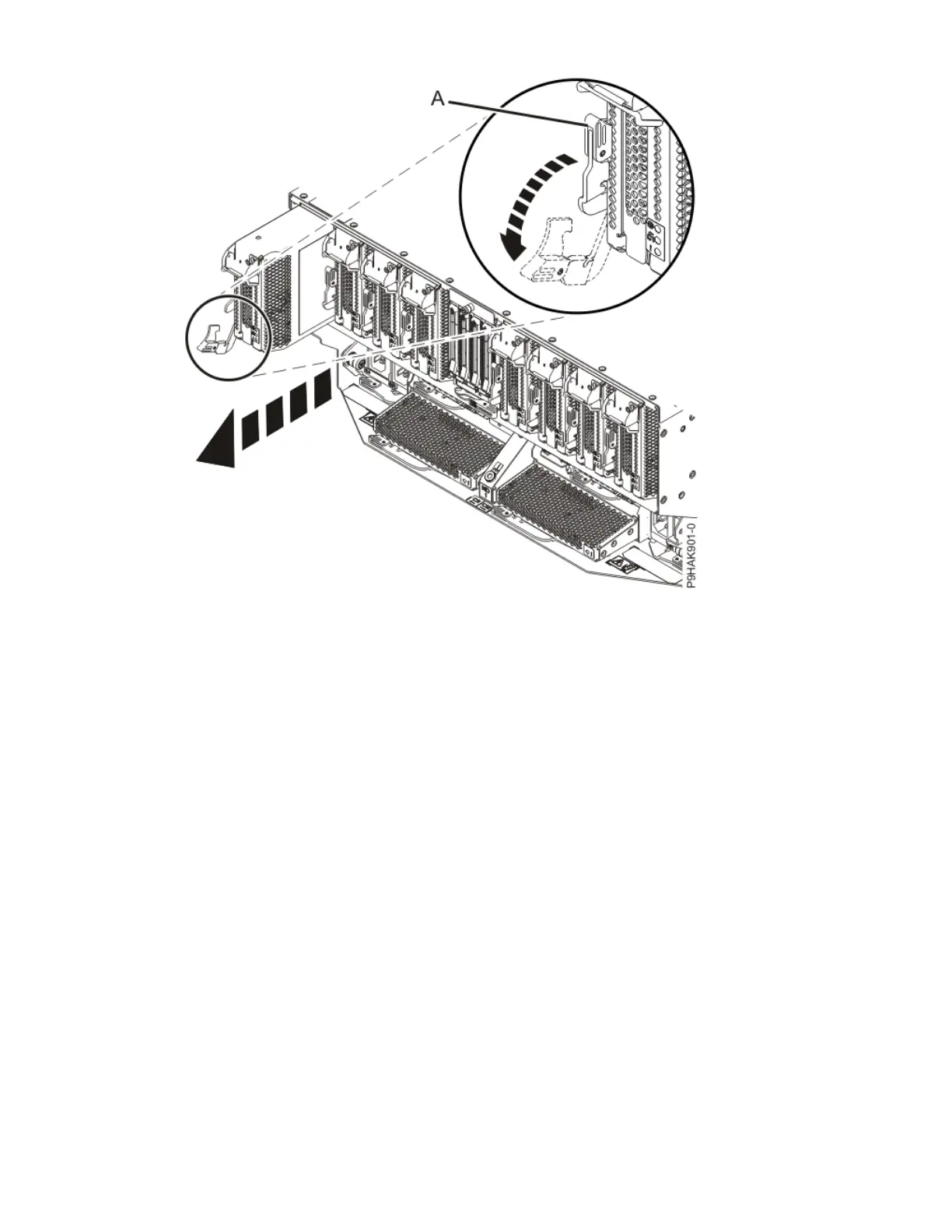

Figure 375. Removing the adapter cassette from the 9080-M9S system
5. Remove the side cover from the cassette.
a) Press the release button on the side cover and slide the cover in the direction that is shown.
b) Lift the side cover off the cassette.
PCIe adapters
437
