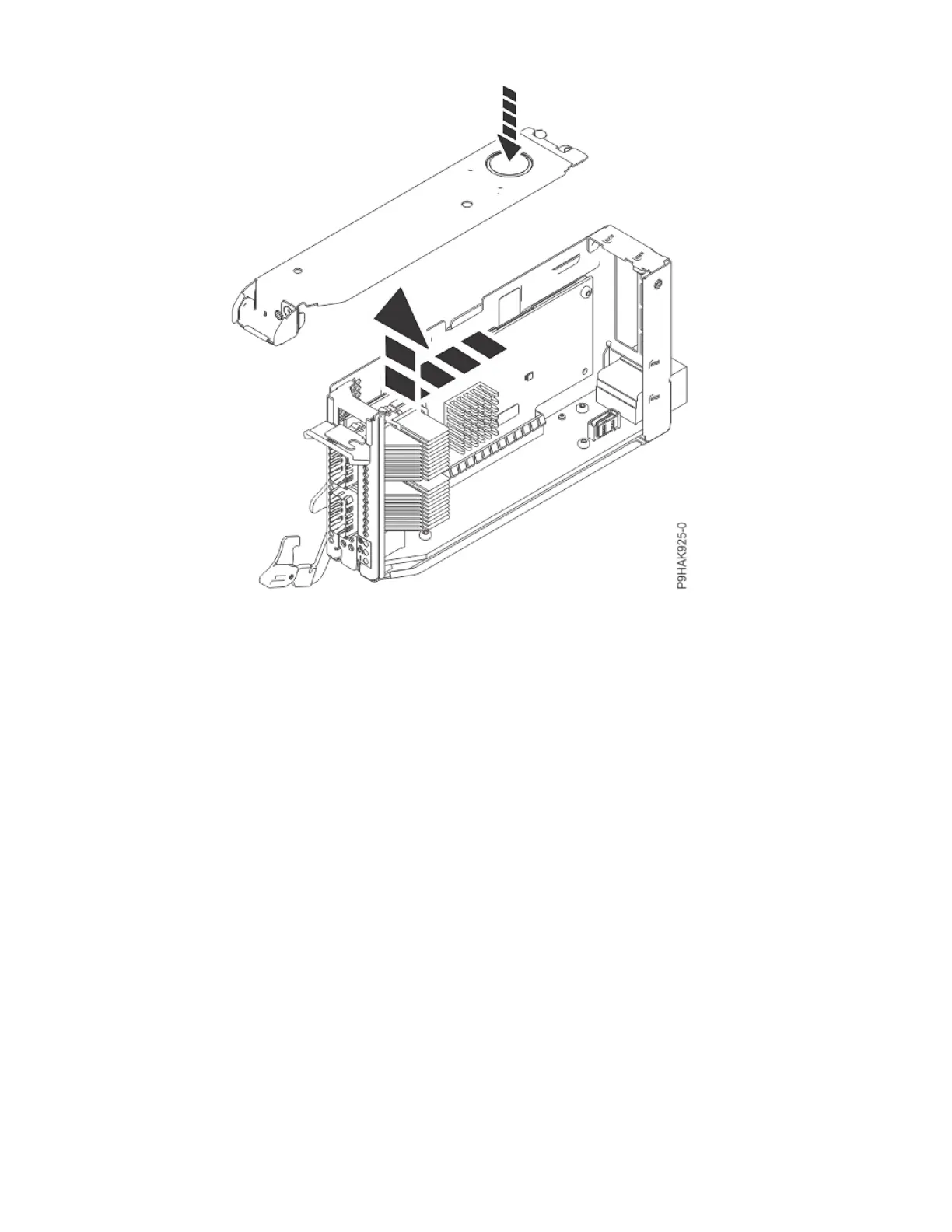

Figure 409. Removing the top cover from the adapter cassette for the 9080-M9S system
5. Remove the adapter from the cassette.
a) Choose from the following options:
• If you do not have adapter retainers, continue with the next step.
• If you have adapter retainers, complete the following steps:
1) Ensure that the retainer latches are in the open position by pushing up on the latch in the
direction that is shown in the following îš³gure.
2) Slide the adapter retainers up and remove them from the cassette and then discard the
retainers.
PCIe adapters
471
