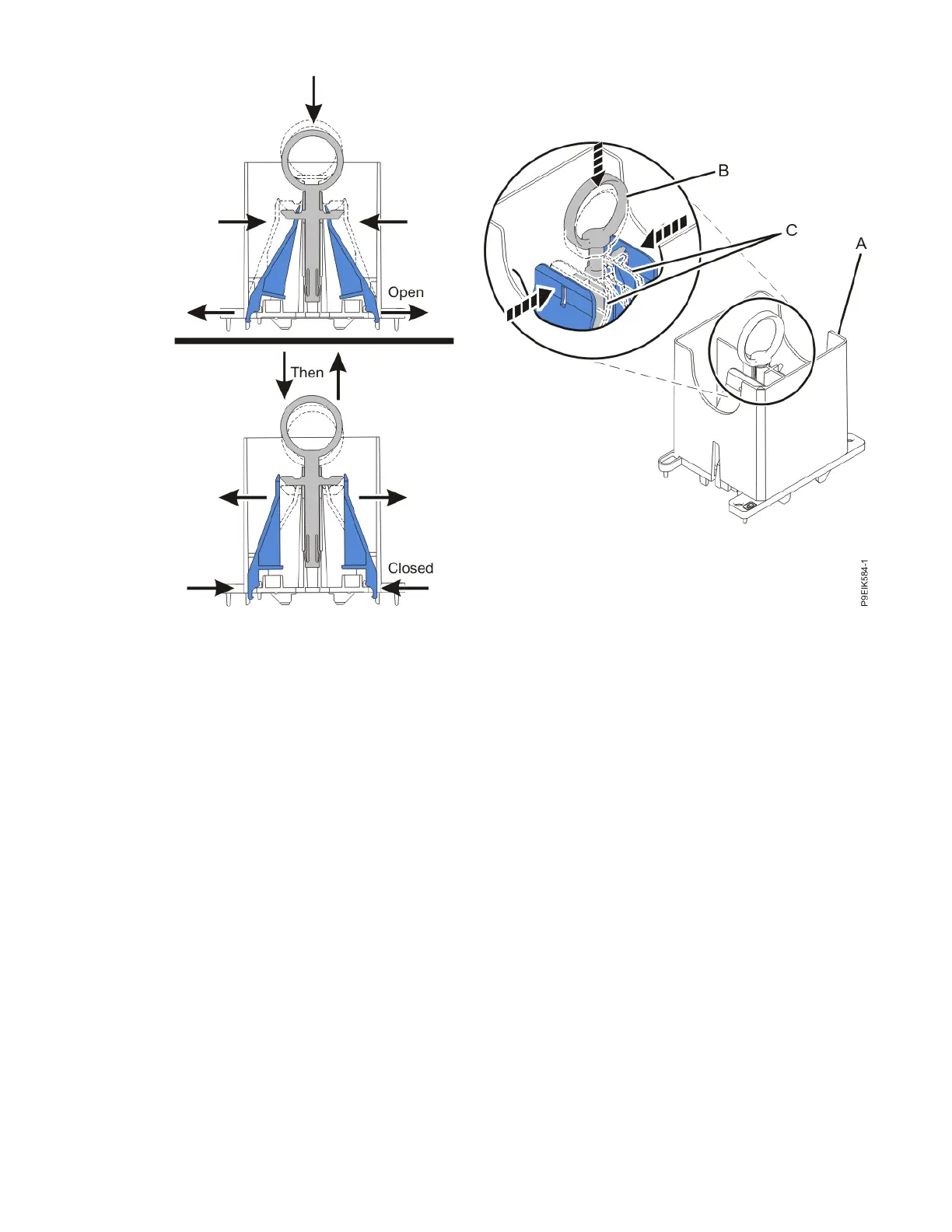

Figure 518. Ensuring that the removal tool is in the open position
g) Align the tool over the system processor module.
Ensure that the beveled edge on the tool aligns with the beveled edge of the processor (C) as
shown in the following îš³gure.
h) Lower the tool over the system processor module.
Ensure that the two guide pins (A) insert into the alignment holes (B) on each side of the tool as
shown in the following îš³gure.
596
Power Systems: Removing and replacing parts in the 9080-M9S system
