IBM 9080-M9S

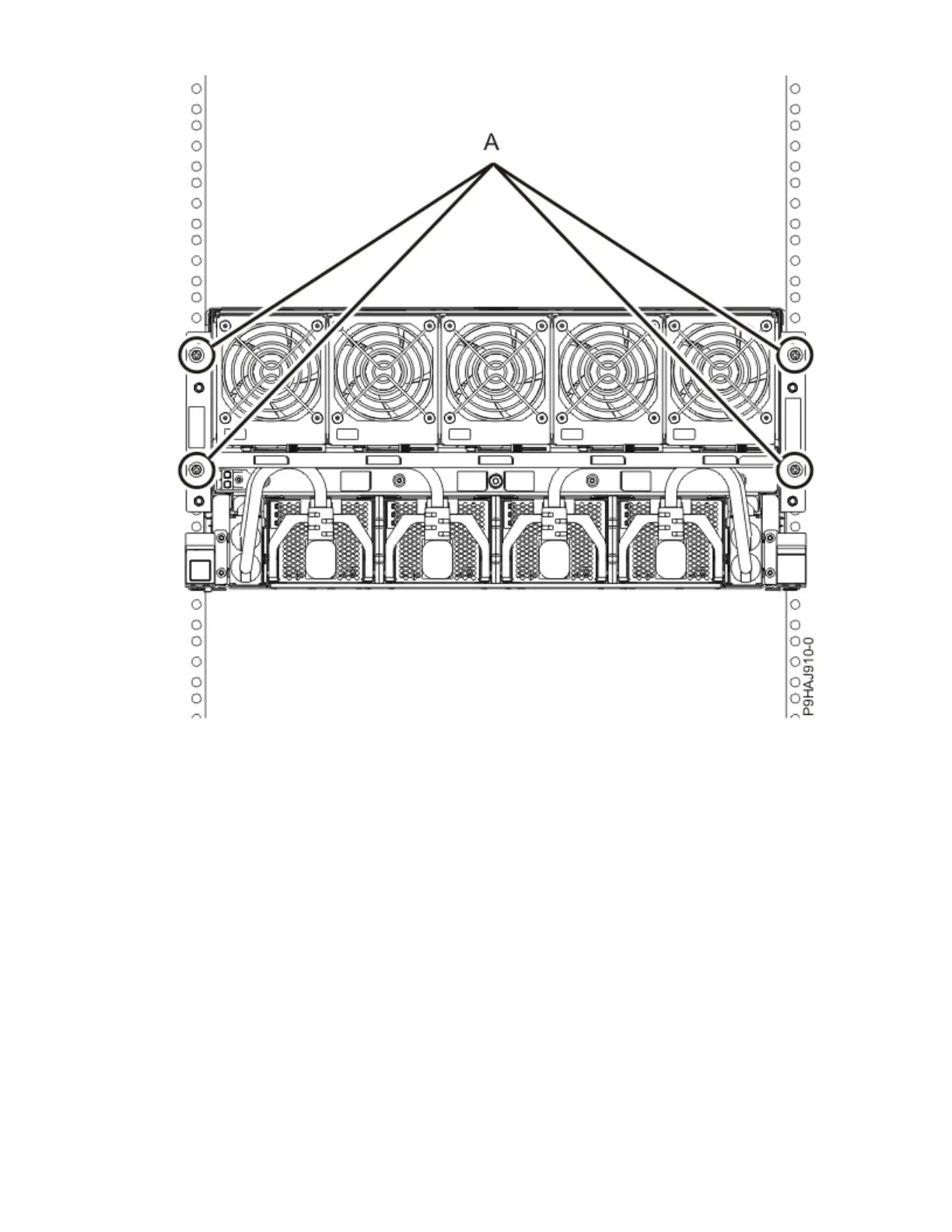

Figure 560. Removing the front screws
k) Release the side latches (B) for the system node by pressing them downward and then pulling
outward as shown in the following gure.
l) Pull out the system node (C) as shown in the following gure.
640
Power Systems: Removing and replacing parts in the 9080-M9S system
