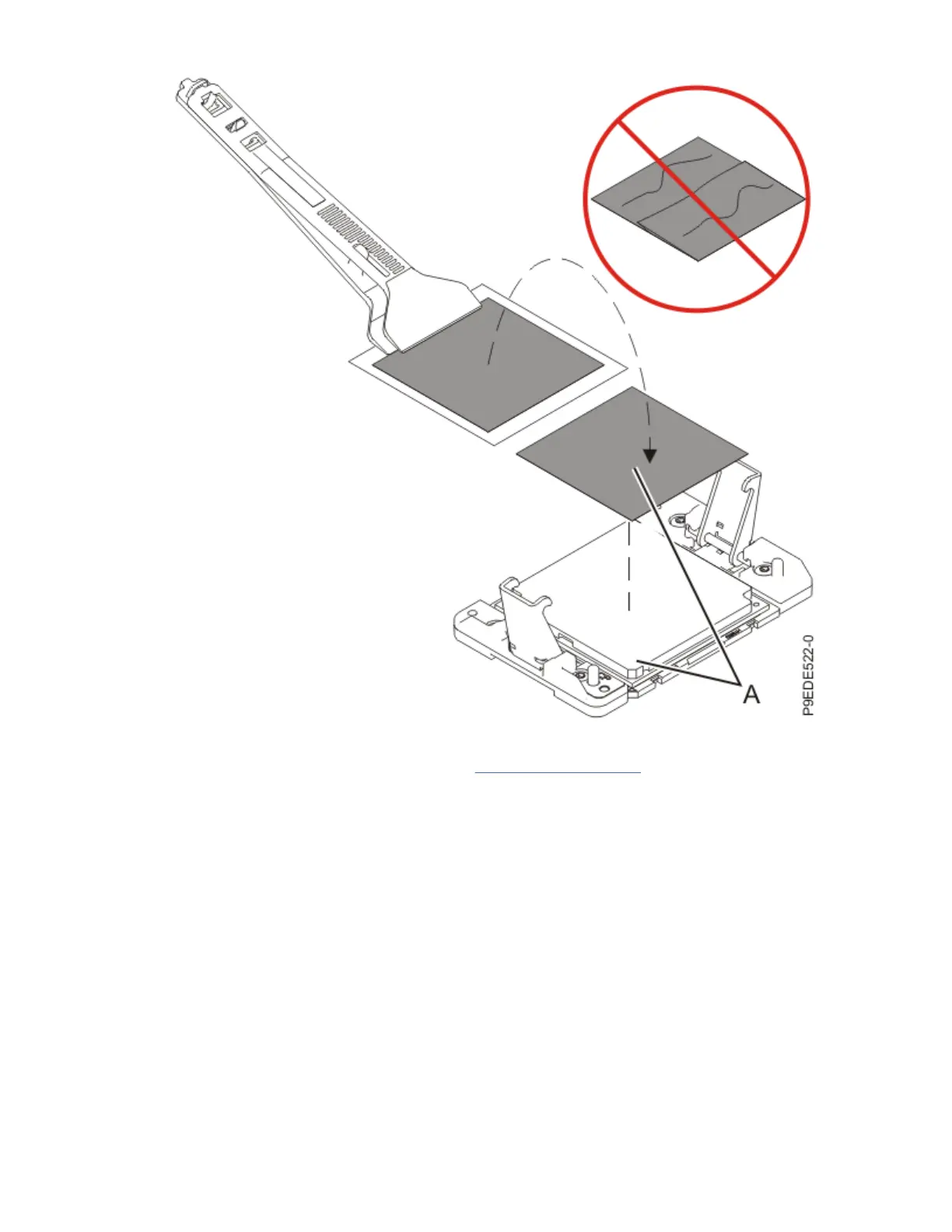

Figure 579. Installing a new TIM onto the system processor module
d) Place the heat sink on the TIM as shown in Figure 580 on page 660.
System processor module
659
