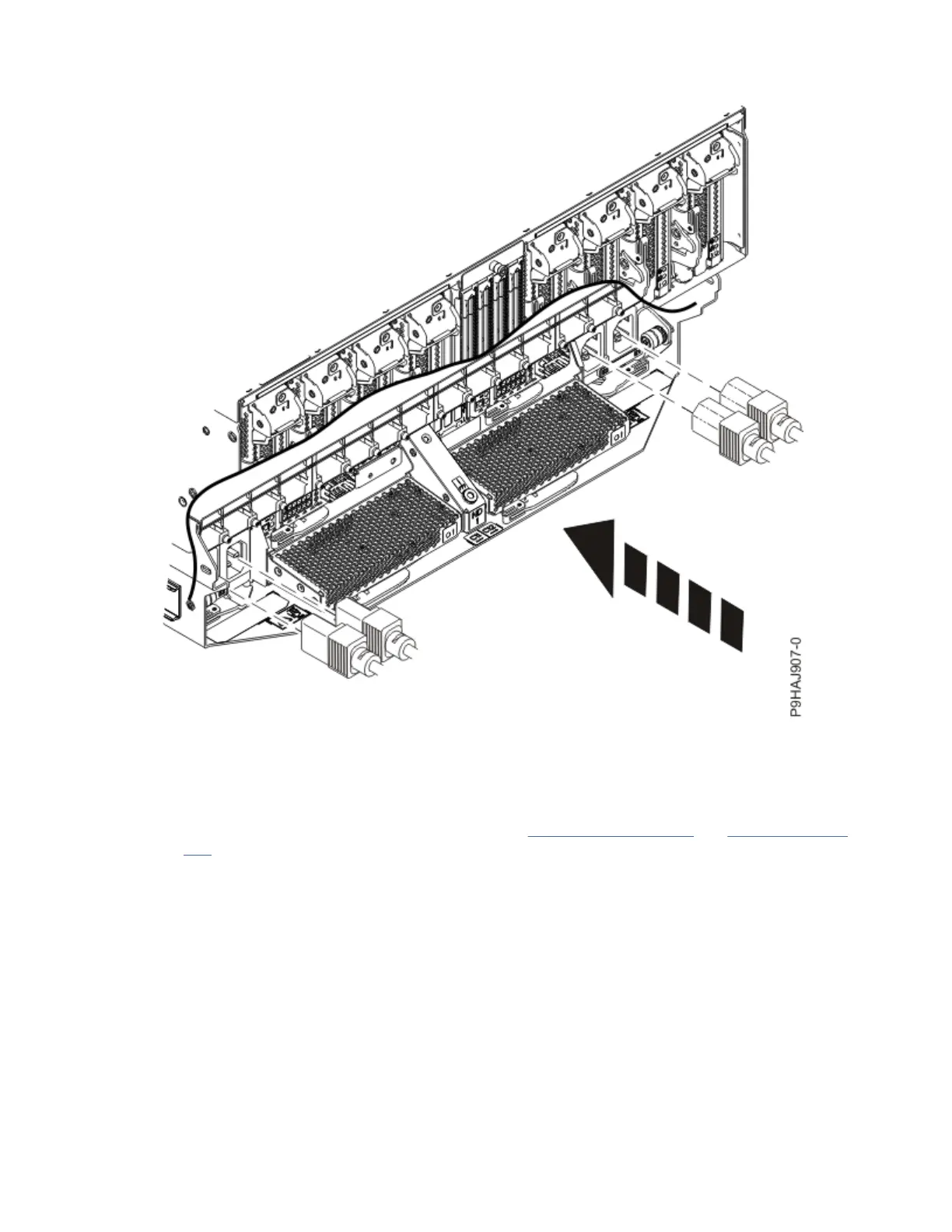

Figure 589. Connecting the rear power cords
5. Review the following information to identify the locations where each SMP cable connects to the
system node that you are servicing. Then, refer to your labels and the following steps to reconnect
the SMP cables that you removed from the system node you are servicing.
• If you have a two node system conguration, use Figure 590 on page 670 and Table 62 on page
670 to determine the point-to-point cabling for SMP cables.
System processor module
669
