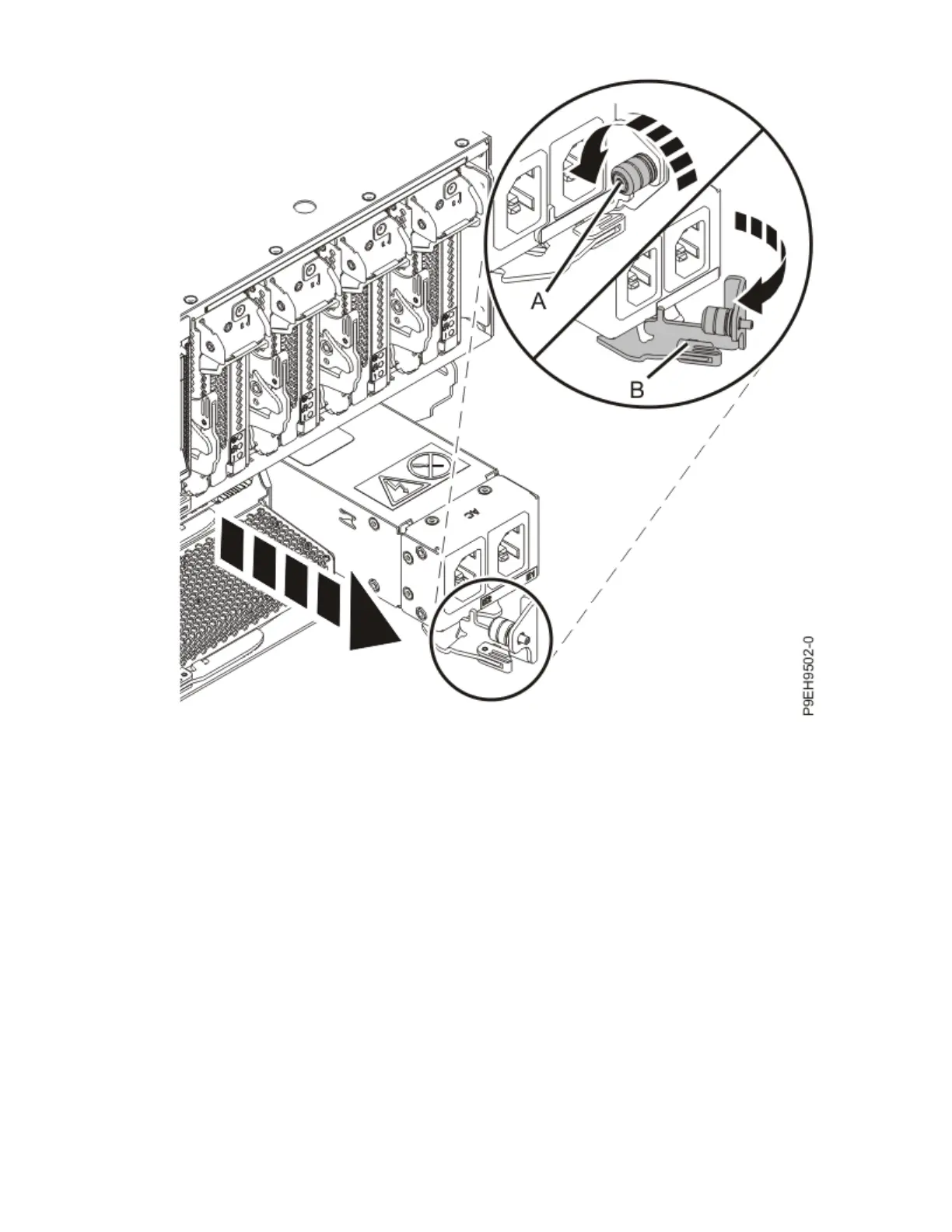

Figure 2. Removing the line cord conduit from the rear of the system
d) Slide the line cord conduit out from the rear of the system.
2. Complete the following steps at the front of the system.
a) Ensure that you have the electrostatic discharge (ESD) wrist strap on and that the ESD clip is
plugged into a ground jack or connected to an unpainted metal surface. If not, do so now.
b) Place your ngers on the indentations located on both sides of the cover (A) and pull the cover
away from the system as shown in the following gure.
Cables
3
