The DIMM configuration is invalid. See the DIMM placement tables in “x3690 X5 memory
population order” on page 133 for details.
A nonfunctional DIMM, failed DIMM slot, bent processor pin, or resource conflict with a
PCIe adapter. Swap the DIMM with a functional DIMM, reactivate the DIMM by pressing
F1-Setup, and retest:
– When the problem follows the DIMM, replace the DIMM.
– When the problem stays with the memory slot location, remove any non-IBM PCIe
adapters, reactivate, and retest.
– When the failure is in the same slot on the memory board, verify that the memory
board is completely seated or swap memory boards with a known functional memory
board location, reactivate, and retest.
– When the problem remains with the memory board location, a bent processor pin might
be the cause.
– Contact IBM support for replacement parts.
The firmware of the server contains a a powerful diagnostic tool. Use the following steps to
perform a simple test of a new memory configuration before placing the server into
production:
1. During POST, at the IBM System x splash panel, press F2-Diagnostics, as shown in
Figure 6-3.

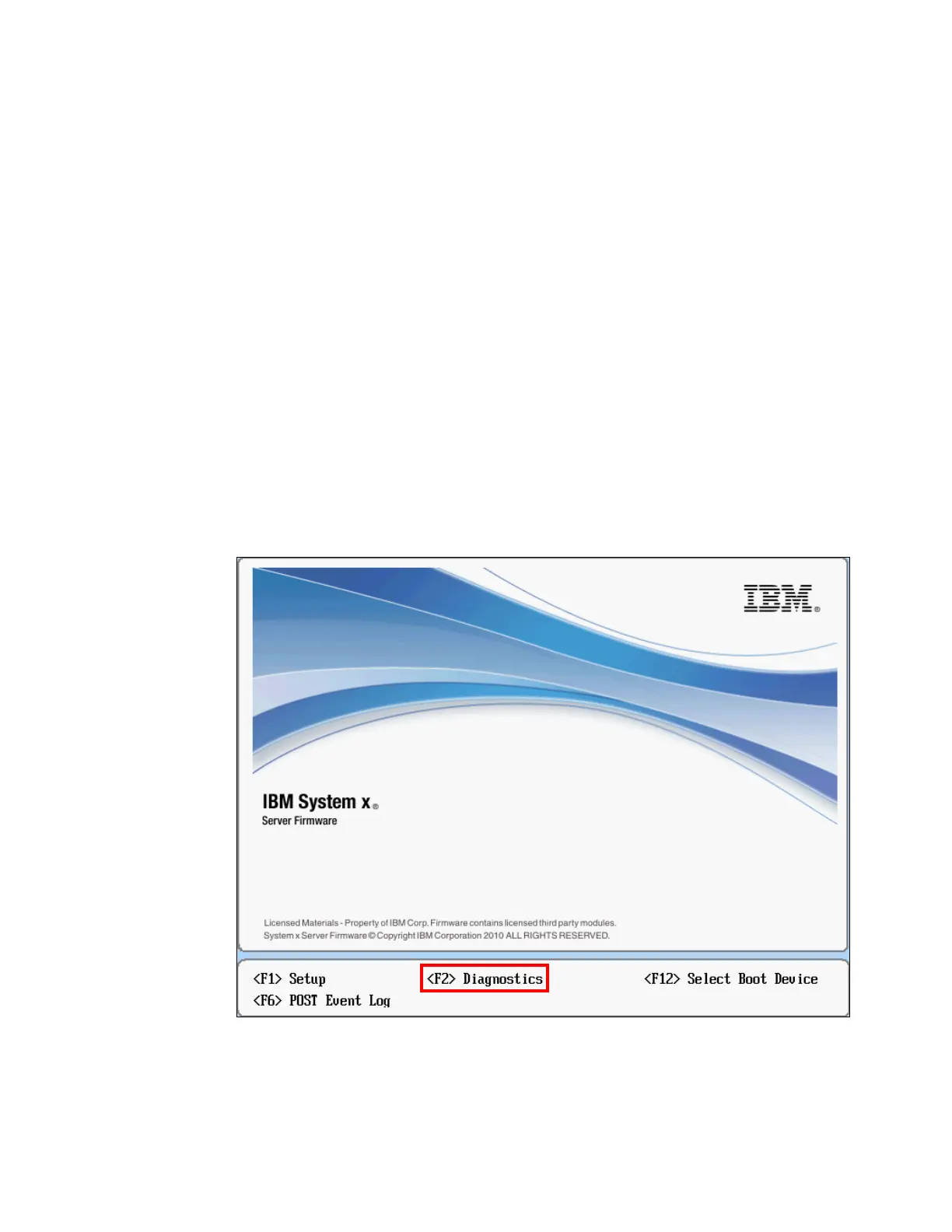

Figure 6-3 How to access diagnostics in POST
2. When the built-in diagnostics start, they start the Quick Memory Test for all of the memory
in the server, as shown in Figure 6-4 on page 228. You can stop the Quick Memory Test at
any time and run a Full Memory Test, which runs the same test patterns multiple times and
takes five times longer than the Quick Memory Test. The only time that you want to run the
