Chapter 7. IBM System x3690 X5 347

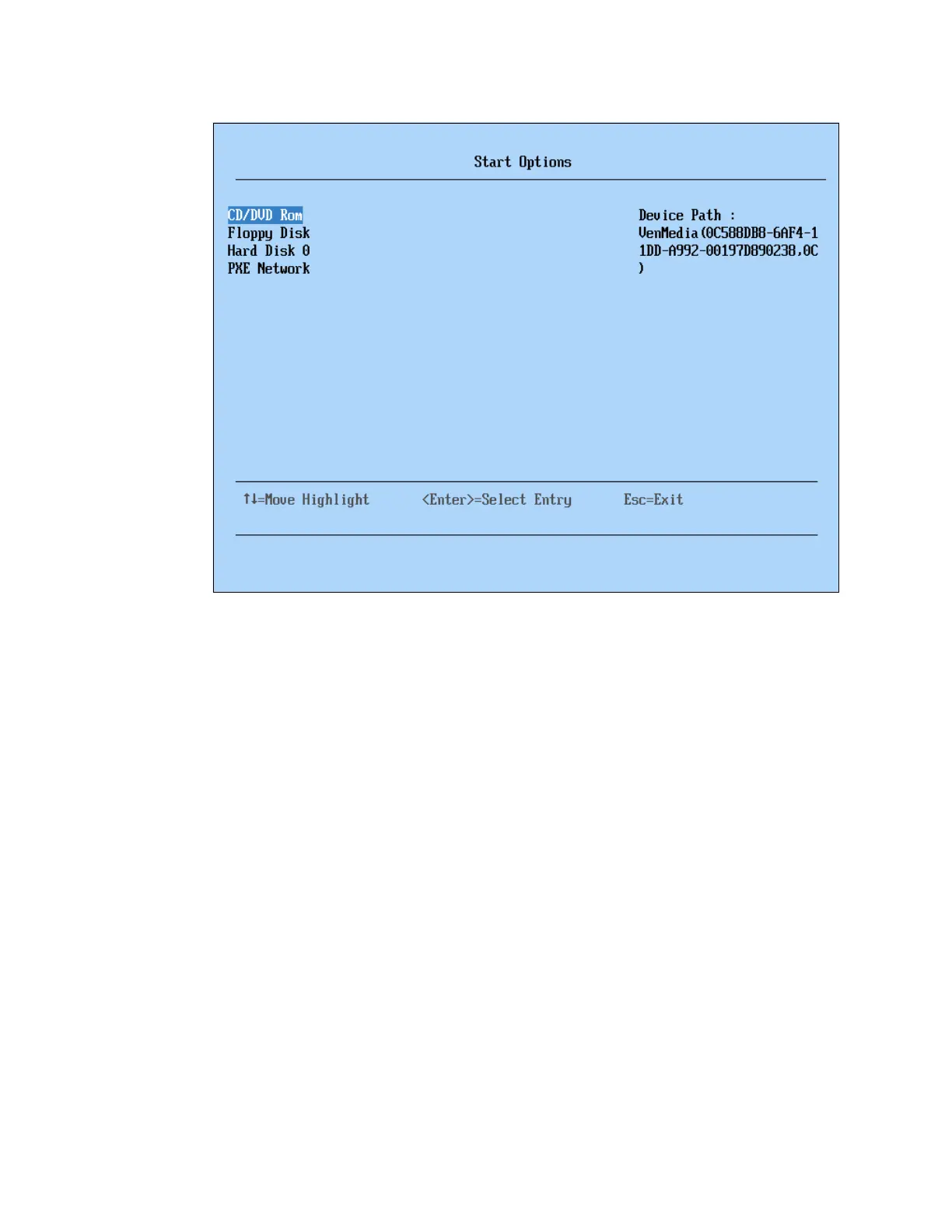

Figure 7-43 Default UEFI boot order
In a typical configuration, these server functions are required to allow the server to perform
PXE network boot and installation:
DHCP server, providing IP address
Trivial File Transfer Protocol (TFTP) server, providing initial boot and installation
environment
File server, providing OS installation files
Use the guides that are provided in the following list to perform the PXE network boot
installation that is specific to each OS:
Windows Server 2008 R2
http://technet.microsoft.com/en-us/library/cc772106(WS.10).aspx
Red Hat Enterprise Linux 6
http://docs.redhat.com/docs/en-US/Red_Hat_Enterprise_Linux/6/html/Installation_
Guide/index.html
SUSE Linux Enterprise Server 11
http://www.novell.com/documentation/sles11/book_sle_deployment/?page=/documenta
tion/sles11/book_sle_deployment/data/pre_sle.html
VMware vSphere ESXi 4.1
http://www.vmware.com/pdf/vsphere4/r41/vsp_41_esxi_i_vc_setup_guide.pdf
