118 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

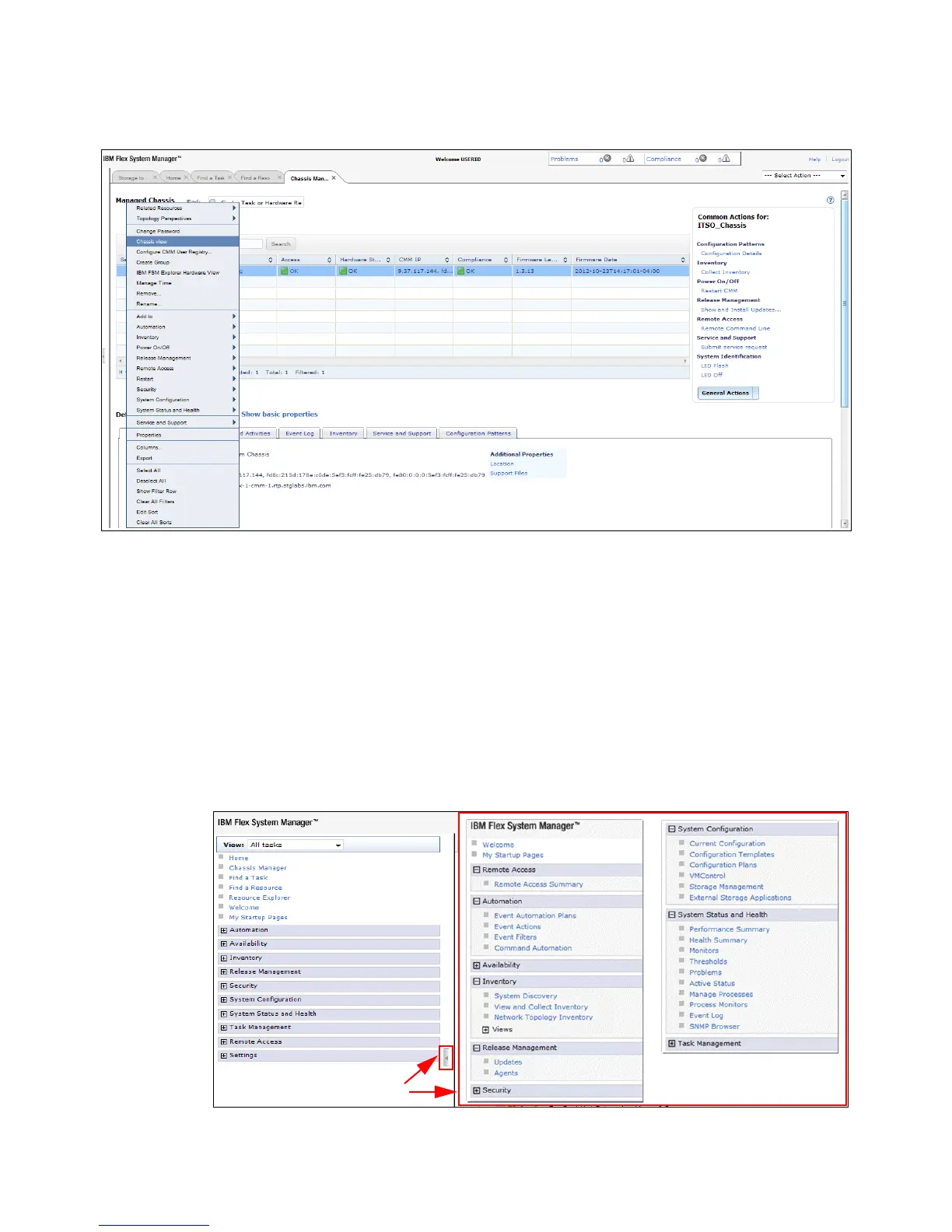

The Chassis manager page has multiple functions ,as shown in Figure 3-47.
Figure 3-47 FSM chassis manager tab
Figure 3-47 shows the FSM chassis manager. This window offers the following functions:
򐂰 Clicking the chassis name opens IBM FSM Explorer, covered later in this section.
򐂰 The global search tab helps in finding tasks and hardware resources.
򐂰 The action tab gives you advanced configuration options of the chassis.
򐂰 The details section gives you detailed information regarding the chassis, such as eventlog
and inventory.
In the FSM GUI, there is a small slide-out tab in the center-left of the interface. Clicking it
opens a menu, which shows a comprehensive list of functions that FSM offers. Figure 3-47
shows this FSM slide-out menu.
Figure 3-48 FSM - Slide-out menu
Slide-out Menu

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
