Chapter 3. Systems management 119
As seen in Figure 3-48 on page 118, there are numerous enhanced features and functions
that can be easily preformed in the user-friendly FSM user-interface. For detailed information
regarding the IBM Flex System Manager web interface and management options, see the
IBM Flex System Manager Systems Management Guide, located at the following website:
http://publib.boulder.ibm.com/infocenter/flexsys/information/topic/com.ibm.directo
r.main.helps.doc/fsm_1_fqr0_bk_systm_mgmt.pdf
IBM FSM Explorer
This section gives you a short overview on how to navigate around in the IBM FSM Explorer.
IBM FSM Explorer has a horizontal pull-down menu, and a vertical menu. The horizontal
menu is divided into two menus, one in the top black frame, showing health and job status,
and the second in the blue frame, which guides you to different tasks and hardware
recourses.
To get to IBM FSM Explorer, click Launch IBM FSM Explorer in the home tab of IBM Flex
System Manager. It will open IBM FSM Explorer in a new tab. Figure 3-49 shows the IBM
FSM Explorer home page.

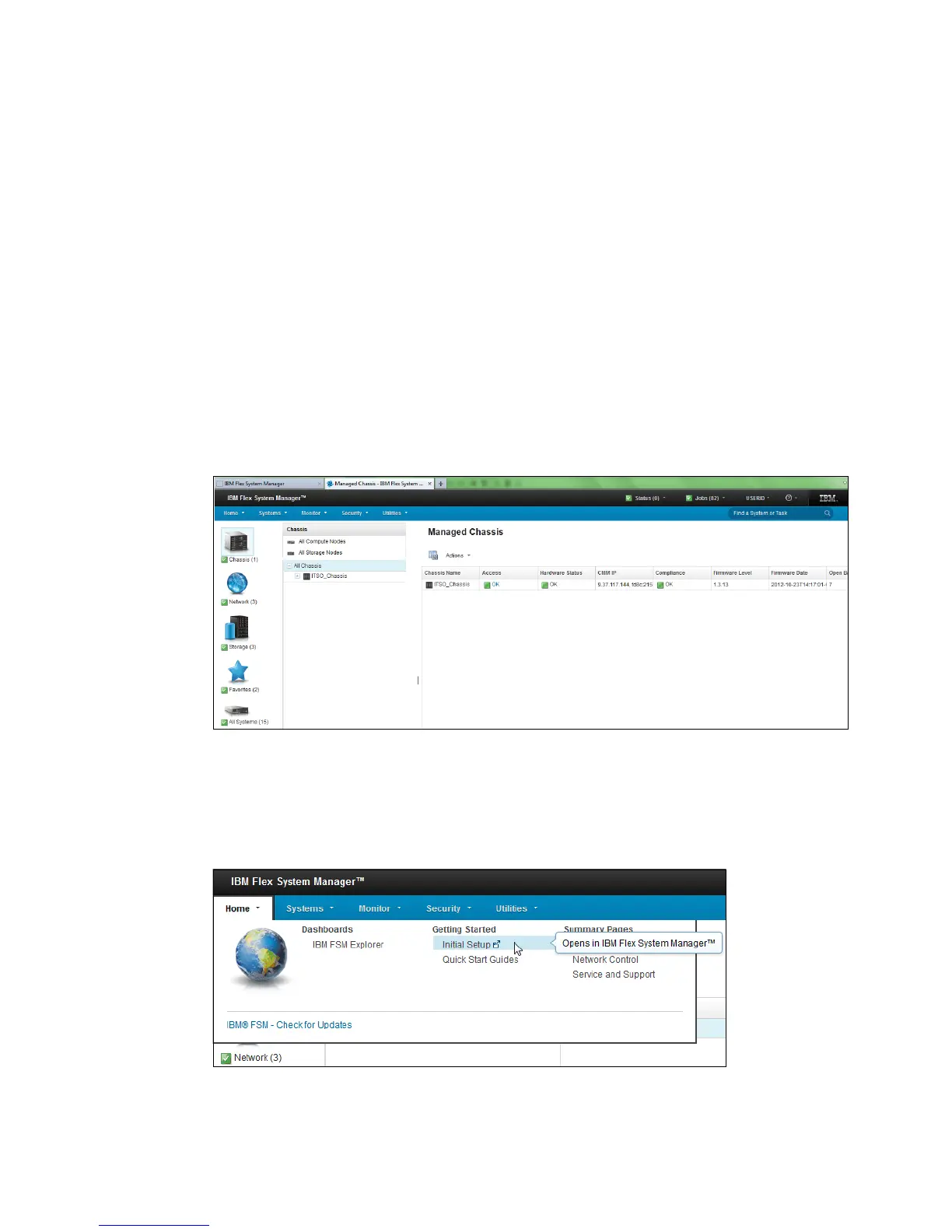

Figure 3-49 IBM FSM Explorer home - tabs
When working in IBM FSM Explorer, it is important to know that some tasks will be opened in
IBM FSM Explorer, and other tasks will be opened in IBM Flex System Manager. When
choosing tasks in the horizontal menu, it will inform you if the selected task is opened in IBM
Flex System manager. Figure 3-50 shows how to identify where a chosen task will open.
Figure 3-50 IBM FSM Explorer - Tasks
