IBM Flex System V7000 User Manual

Chapter 3. Systems management 129

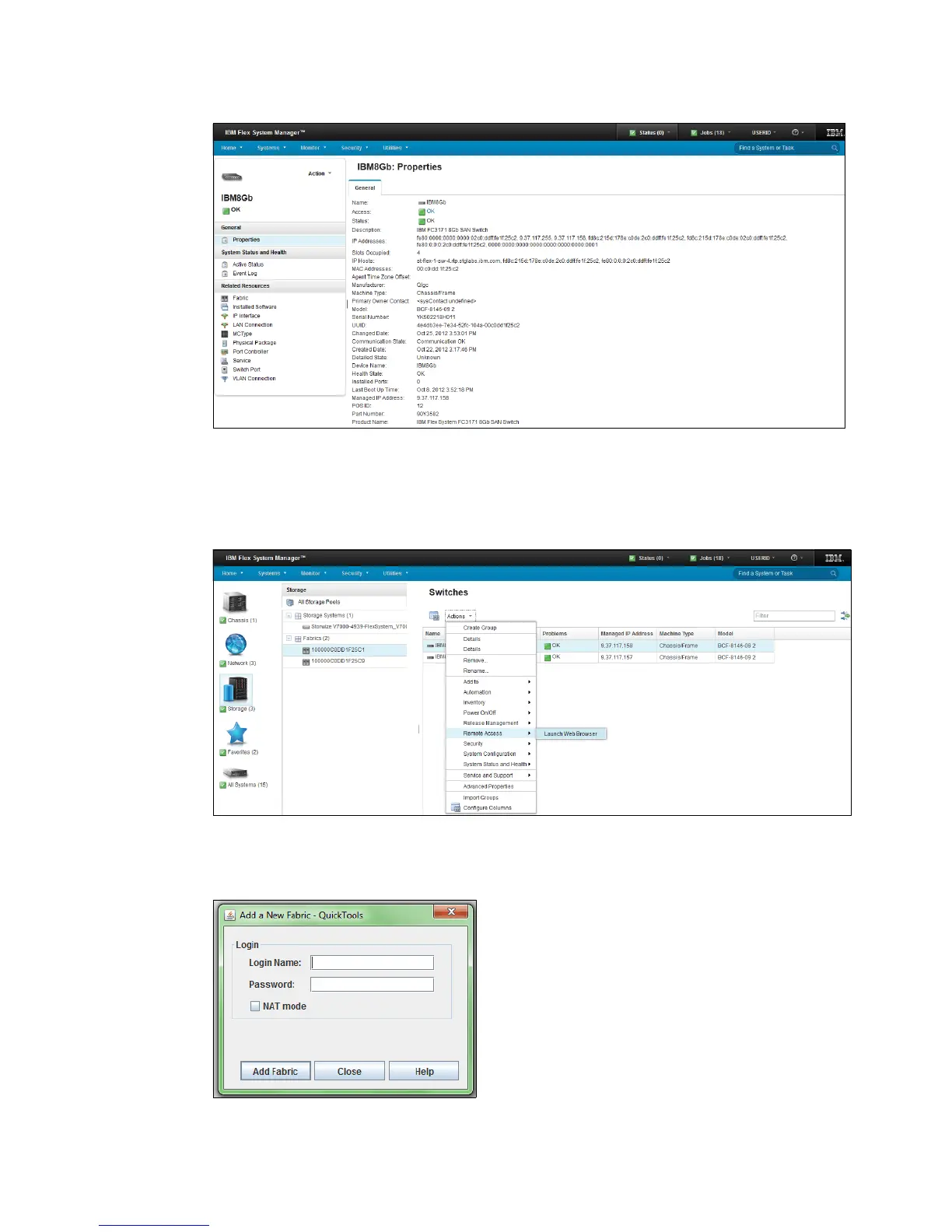

Figure 3-68 IBM FSM Explorer - Storage page - Switch details
From the switch overview page, right-click one of the switches, and select Remote access 
Launch Web Browser. It will open the switch web GUI login prompt, from where the switch
can be configured. Figure 3-69 shows how to open the switch web GUI.
Figure 3-69 IBM FSM Explorer - Storage page - Switch GUI
Figure 3-70 shows the FC switch login page.
Figure 3-70 FC Switch login

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
