Chapter 3. Systems management 137
To collect logs from the IBM Flex System V7000 Storage Node using IBM Flex System
Manager, click Manage support files as shown in Figure 3-77.
The “Manage support files” page displays, and by choosing Collect support files, a new
window appears, where you can see logs already collected. as shown in Figure 3-78 .

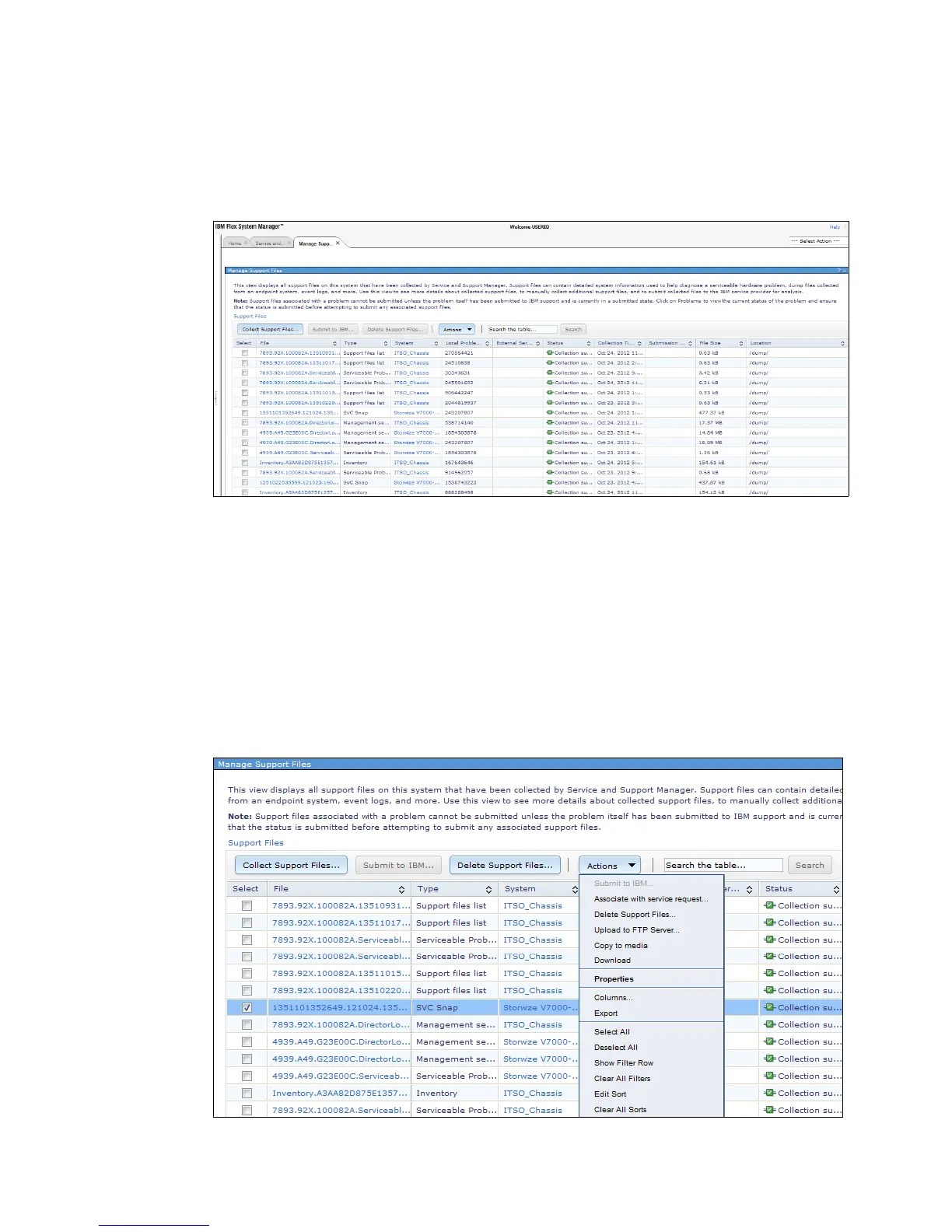

Figure 3-78 IBM FSM - Manage support files
Select one or more files, then click Actions, and you have several options to download or
transfer the logs:
򐂰 Submit to IBM: (only works if Electronic Service Agent is enabled)
򐂰 Upload to ftp server: Upload to an ftp server on your network
򐂰 Copy to media: USB key, inserted into IBM Flex System Manager Node
򐂰 Download: Download the support file to the computers which are connected to the IBM
Flex System Manager
Figure 3-79 shows the options for a support file.
Figure 3-79 IBM FSM - Manage support files download

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
