IBM Flex System V7000 User Manual

138 IBM Flex System V7000 Storage Node Introduction and Implementation Guide

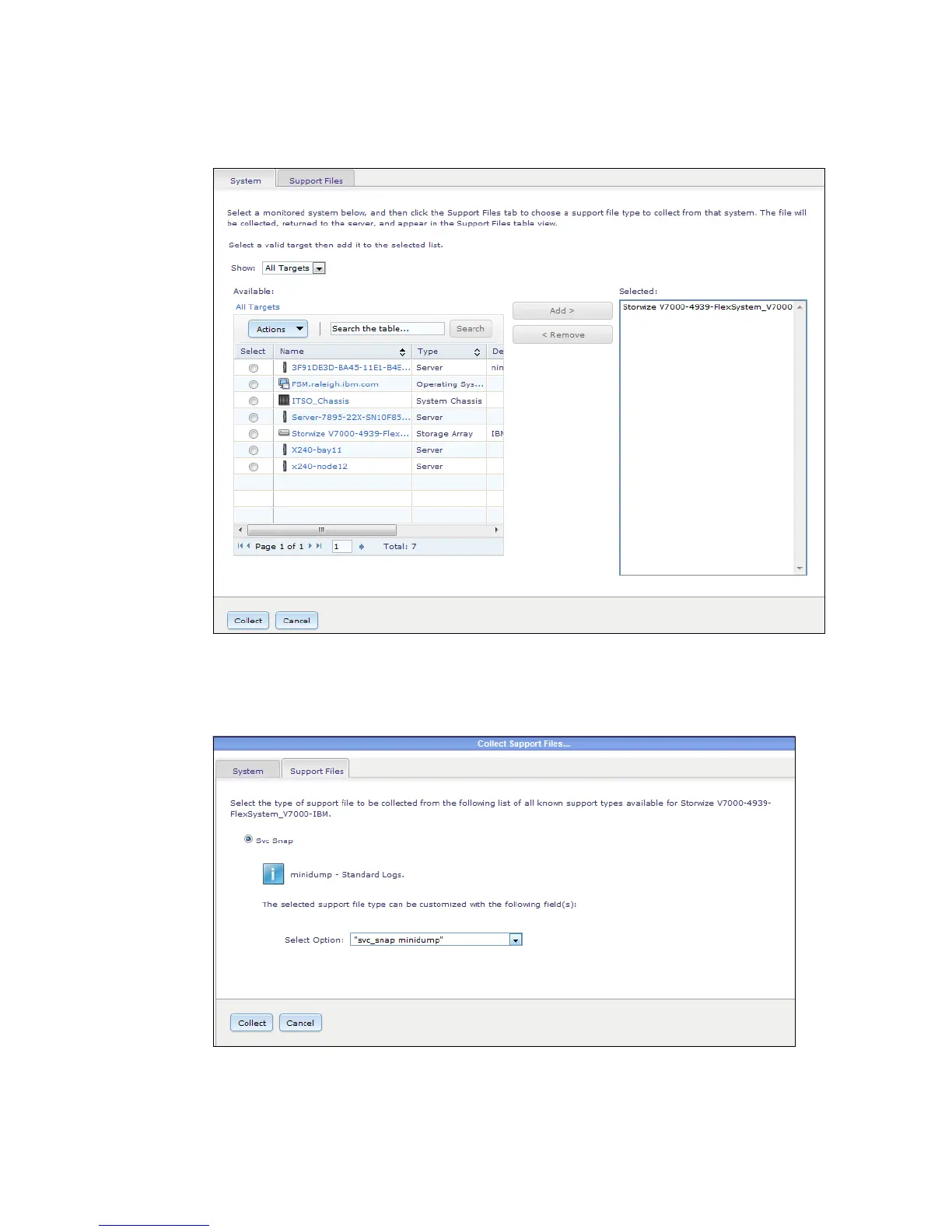

To collect a new support file, click Collect Support Files. A new window displays, where you
can choose the device, as shown in Figure 3-80.
Figure 3-80 IBM FSM - Collect support file - choose device
To select the type of support file you which to collect, click the Support Files tab, then select
the file and click Collect as shown in Figure 3-81.
Figure 3-81 IBM FSM - Collect support file - choose file type
When the file has been collected, you can choose to download it, send it to IBM or copy it to a
media.

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
