144 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
Choosing the Actions pull-down button will allow you to collect inventory, update storage
system firmware, and open the IBM Flex System V7000 Storage Node management
application, as shown in Figure 3-88.

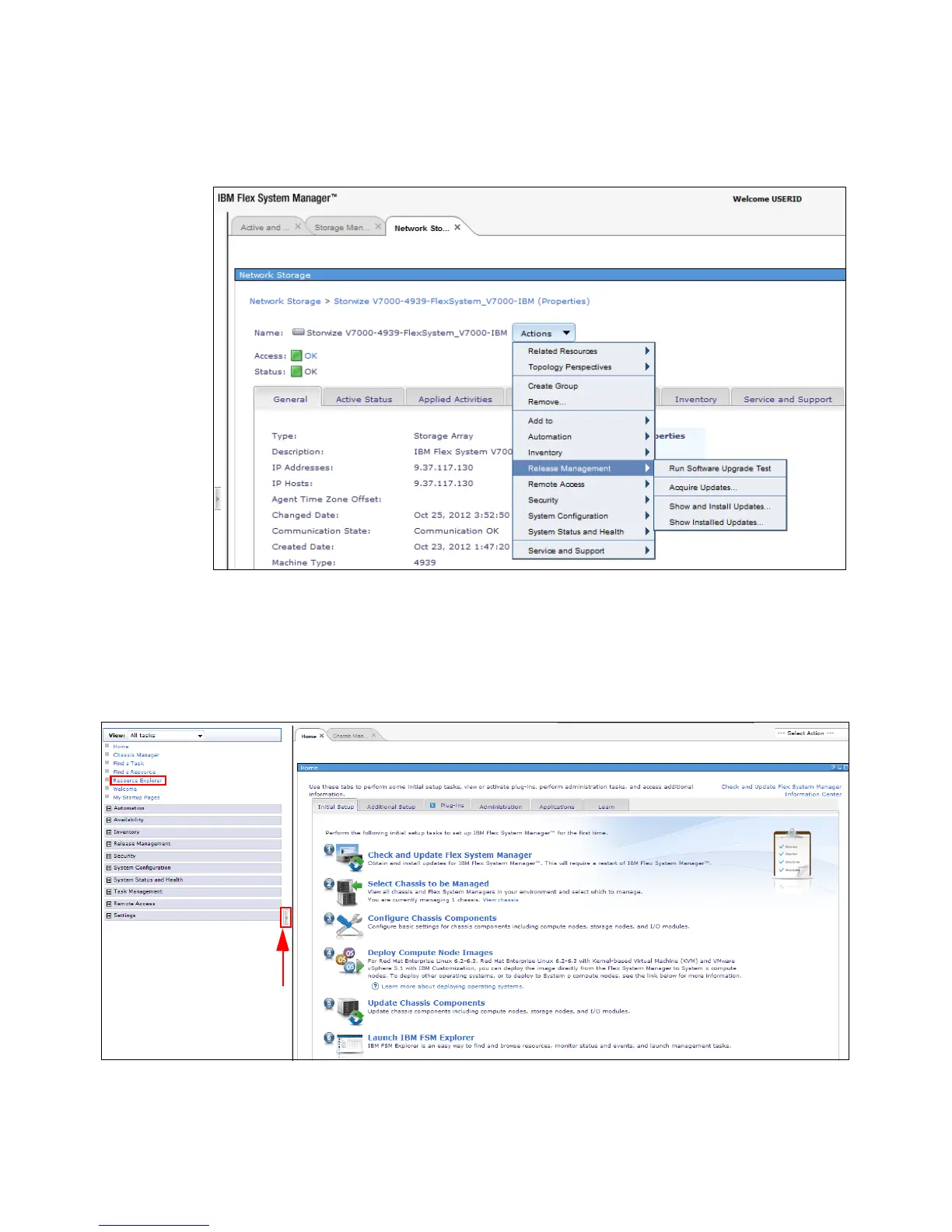

Figure 3-88 FSM - Storage Control - Storage system action menu
Managing external storage systems
To manage external storage subsystems in IBM Flex System Manager, perform the following
steps:
1. From the left slide-out tab, select Resource Explorer, as shown in Figure 3-89.
Figure 3-89 Opening Resource Explorer in FSM
Slide-out tab

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
