Chapter 3. Systems management 145

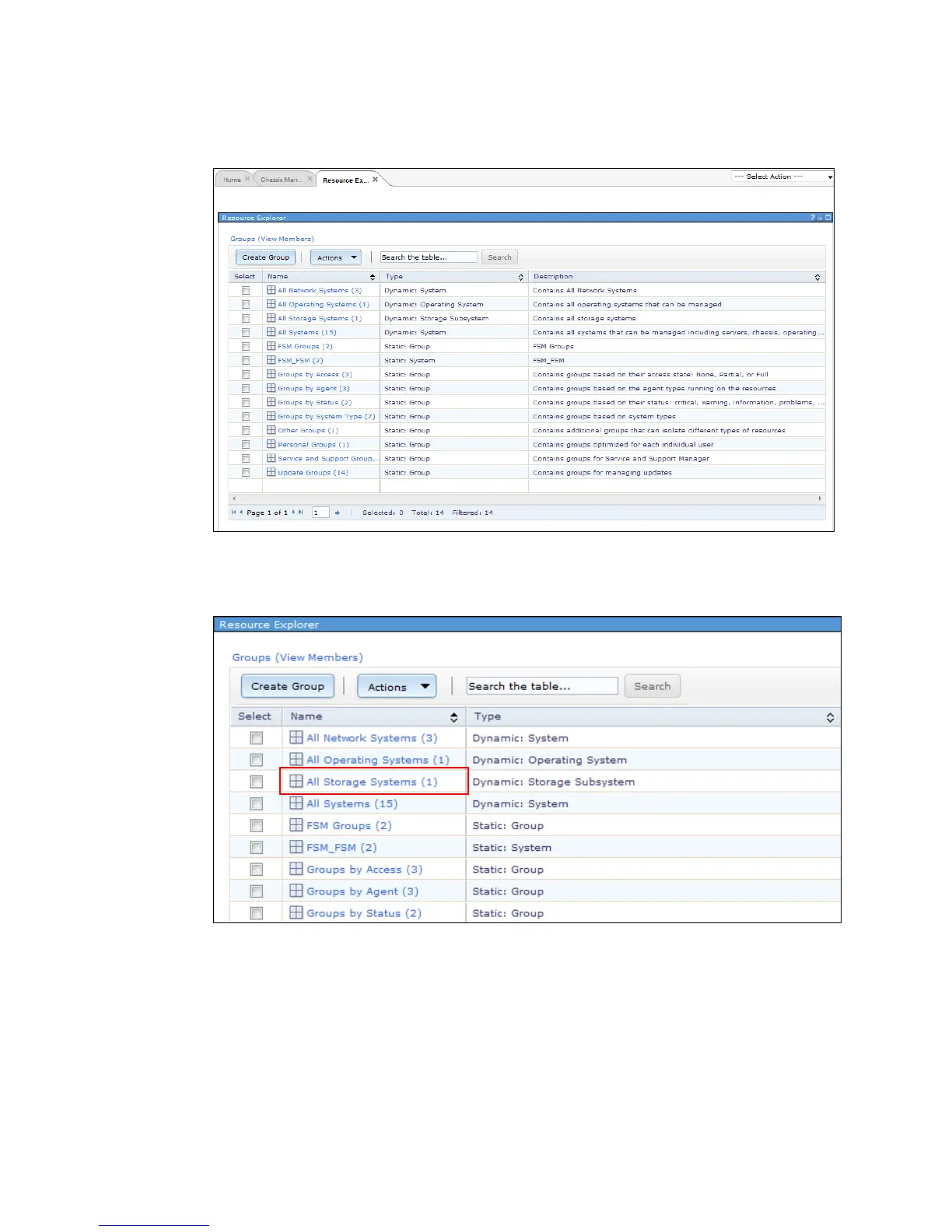

2. Resource Explorer shows a snapshot of all resources in the IBM Flex System Manager
managed by the IBM Flex System Manager, as shown in Figure 3-90.
Figure 3-90 Resource Explorer
3. Navigate to manage discovered storage, as shown in Figure 3-91.
Figure 3-91 Navigate to all storage subsystems

IBM Flex System V7000 Specifications

General

Form Factor	2U
Model	IBM Flex System V7000
Category	Storage
Power Supply	Dual redundant power supplies
Storage Controller	Dual active-active controllers
RAID Levels	RAID 0, 1, 5, 6, 10
Maximum Drives	240
Expansion Enclosures	Up to 9
Drive Types Supported	SSD, HDD
Host Interface Ports	8 Gbps FC
Scalability	Scalable with expansion enclosures
Operating Temperature	5°C to 40°C
Management Interface	Web-based GUI, CLI, SMI-S
