50 IBM Flex System V7000 Storage Node Introduction and Implementation Guide
As shown in Figure 2-5, the control canister has only one SAS2 ports per canister for the
connection of expansion enclosures to add capacity. There are also two USB connections
available for support use to perform maintenance actions as required.

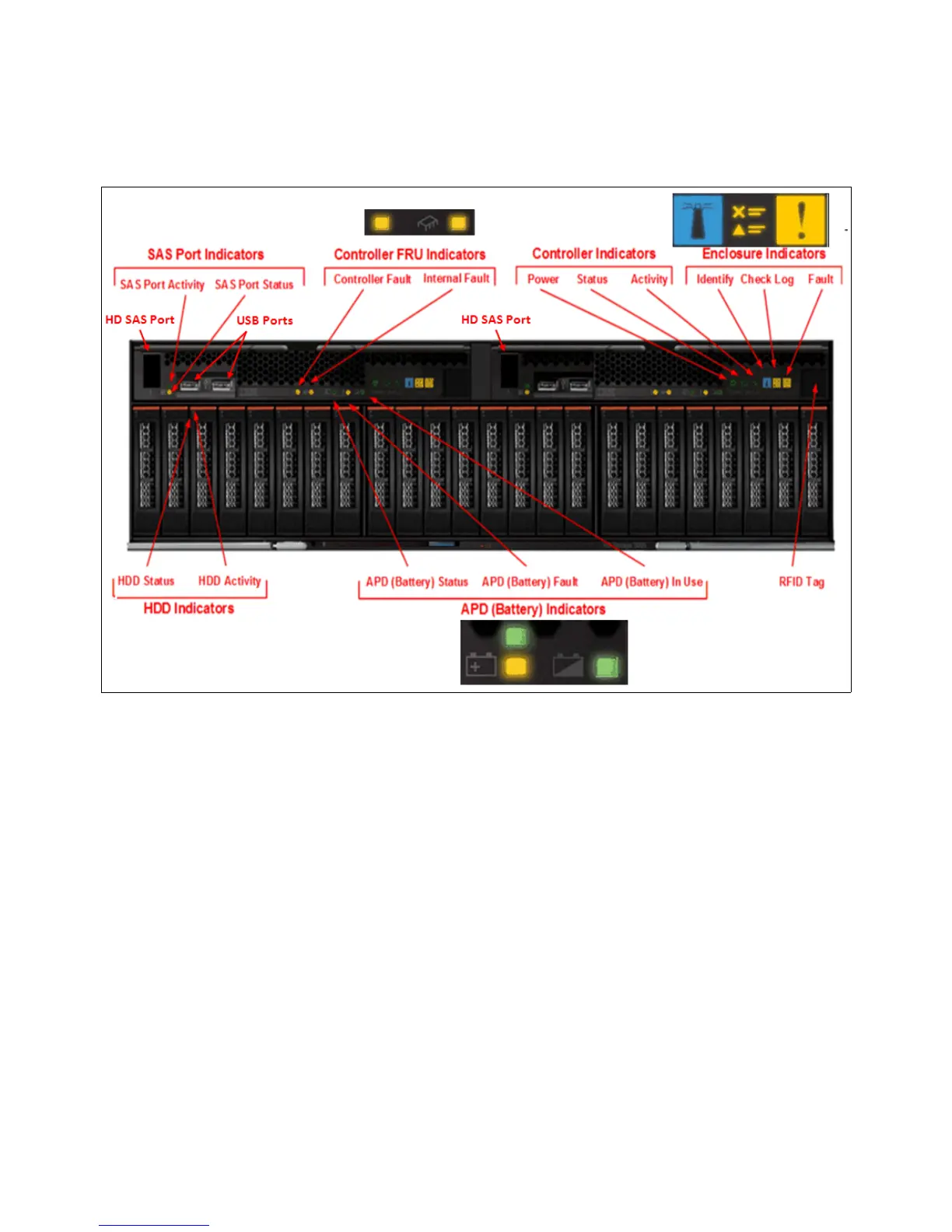

Figure 2-5 Control enclosure with connection ports and indicators
