2050—Memory (SIMM)
Warning: Memory cards are sensitive to static discharge. See “Handling
ESD-Sensitive Parts” on page 4-47.
Cover (2005).
Push out on the side tabs (1) to release the module.
Pull the module straight out (2) to remove.
Note: Run the Configuration Utility after adding or removing memory.
See “Parts/Test Point Locations” on page 5-1 for SIMM type and location on
the system board.
Memory
SIMM
Module

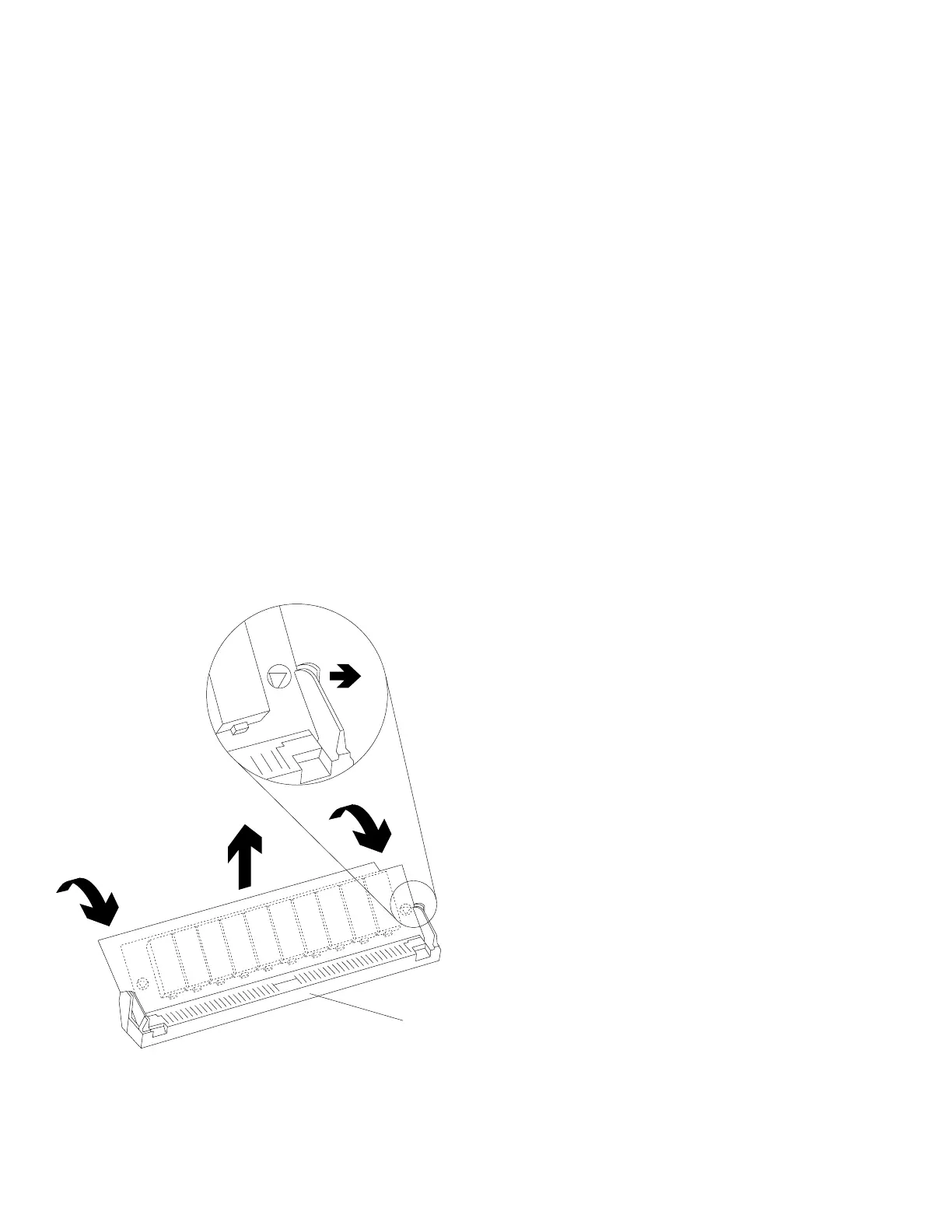

Figure 4-25. 486DX and 486DX2 72-Pin Memory SIMM
