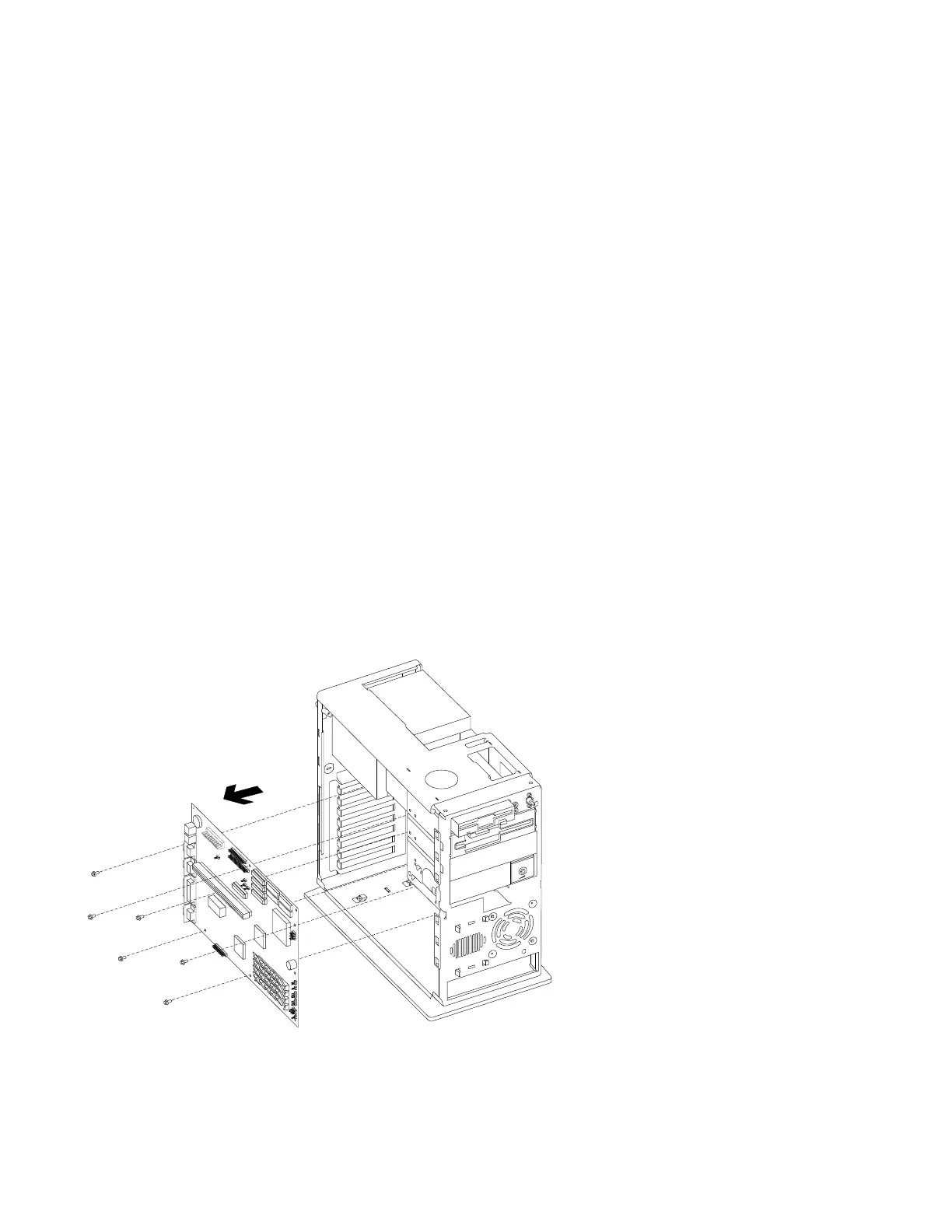

2090—System Board
Cover (2005).
Adapter Card(s) (2035) if applicable.
Riser Card (2045) if applicable.
Disconnect any cables necessary for removal.
Memory (SIMM) (2050) if applicable.
Cache memory (2055) if applicable.
Notes:
1. Be certain to reinstall the SIMMs and cache memory in the new system
board if applicable.
2. When reinstalling a new system board, push the board to the rear and
place it over the front locating pin prior to installing the screws.
3. Run the Configuration Utility after changing the system board.
Repair Information 4-45
