80487sx
i486SX
BIOS
(Even)
BIOS
(Odd)
J9J10
J7
J16
Comm AComm B
Battery
Bar Code Label
U30
U34
U32
U33

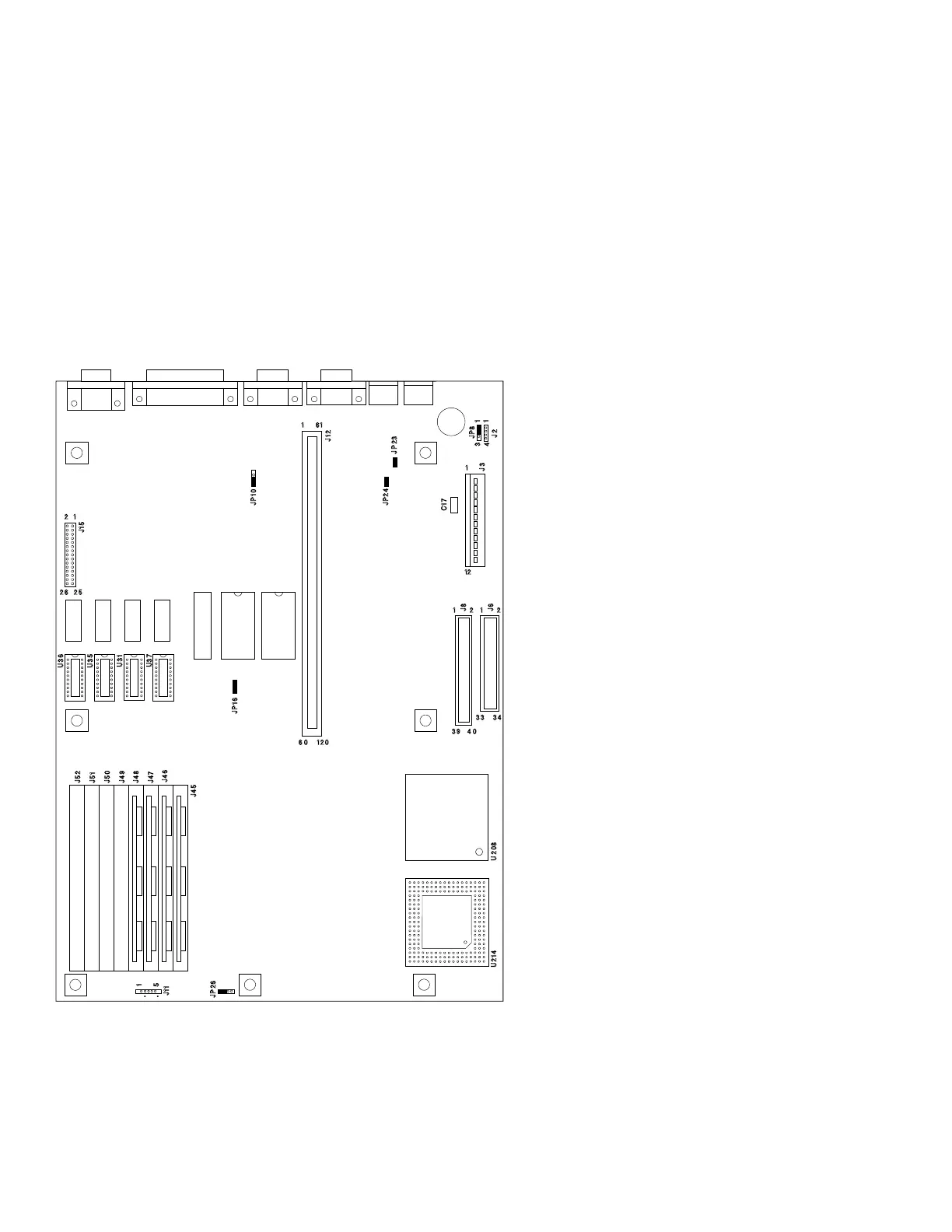

Figure 5-4. 486SX 20MHz/486SX 25MHz Level 1 (30-Pin Memory SIMM)
System Board
5-8
